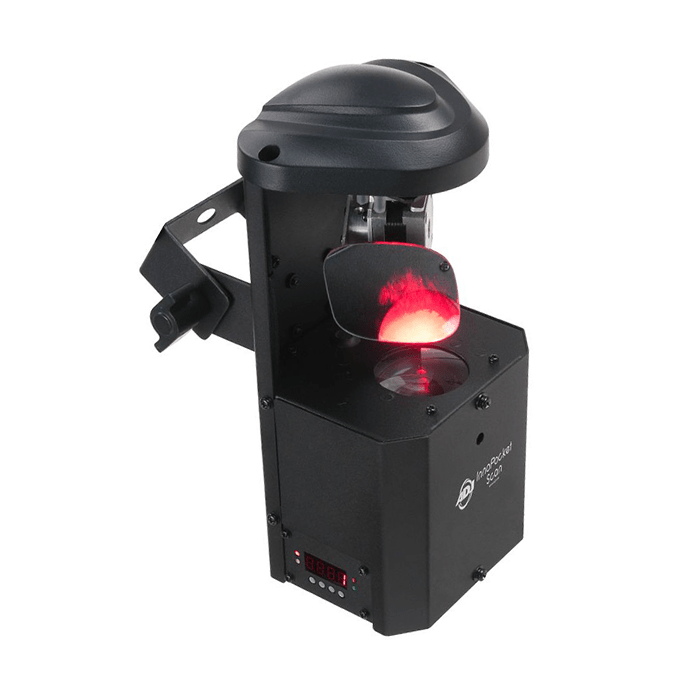

The ADJ Inno Pocket Scan is the perfect lighting effect for any mobile performer because to its small size and light weight. It comes with a powerful 12-Watt LED engine and 12 spectacular built-in light displays in a very small, portable casing. This portable, flat-mirror scanner projects eight fixed GOBO/Color patterns (plus spot/white) from a single wheel at a 14-degree beam angle. IR App for the ADJ Airstream is compatible.
SPECIFICATIONS
- - 12-Watt LED DMX Flat Mirrored Scanner
- - Single GOBO/Color wheel: 8 fixed GOBO/Colors + spot/white
- - 3 Operational modes: DMX, Sound Active & Internal Show control modes
- - 6 DMX channels
- - 12 Built-in shows
- - Gobo Shake effect
- - Gobo scroll mode
- - Beam Angle: 14-degrees
- - X/Y mirror movement
- - Stepper motors with micro stepping
- - 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- - Shutter: Pulse effect; random strobe slow to fast
- - Dimming: 0% - 100%
- - Display Inversion Mode
- - With Wired Digital Communication Network

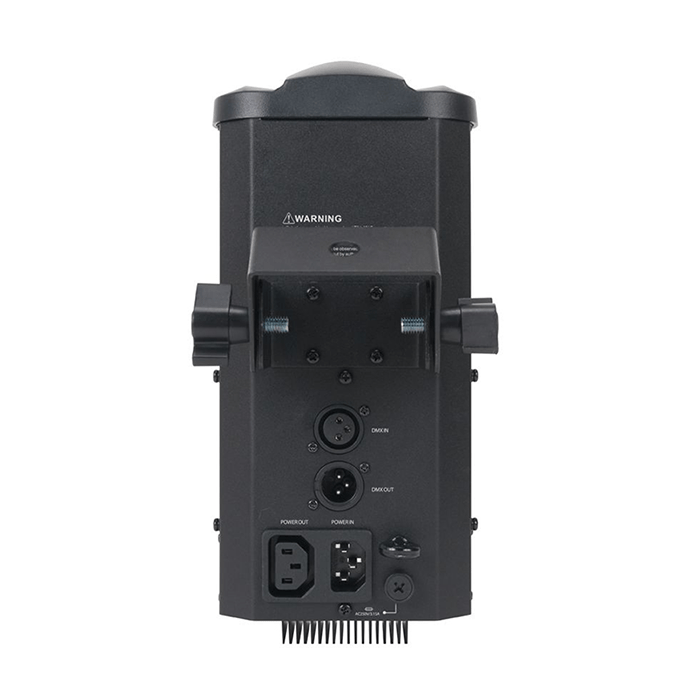

- I- EC AC IN/OUT on rear to daisy chain power (up to 21 Inno Pocket Scan’s @ 120V and 37 Inno Pocket Scan’s @ 230V )
- - Hanging Yoke + safety hook included
- - Optional IR wireless remote control: Full On, Stand by, Strobe, Color Change, Dimming, Sound Active On/Off (ADJ UC IR Not Included)
- - Compatible with the ADJ Airstream IR App
- - Power consumption: 33W (Full-On)
- - Light output: 3,110 LUX @ 2M; 860 LUX @ 4M (13-degree beam)
- - Multi-voltage Operation: AC 100 - 240V, 50/60Hz
- - Power cable length: 1.5 meter (IEC)
- - LED Source: 12W White LED source (Rated at approximately 50,000 hrs)
- - Dimensions (LxWxH): 11.5” x 5.25” x 6.5” / 294 x 132 x 160mm
- - Weight: 6 lbs. / 2.4 kgs.
