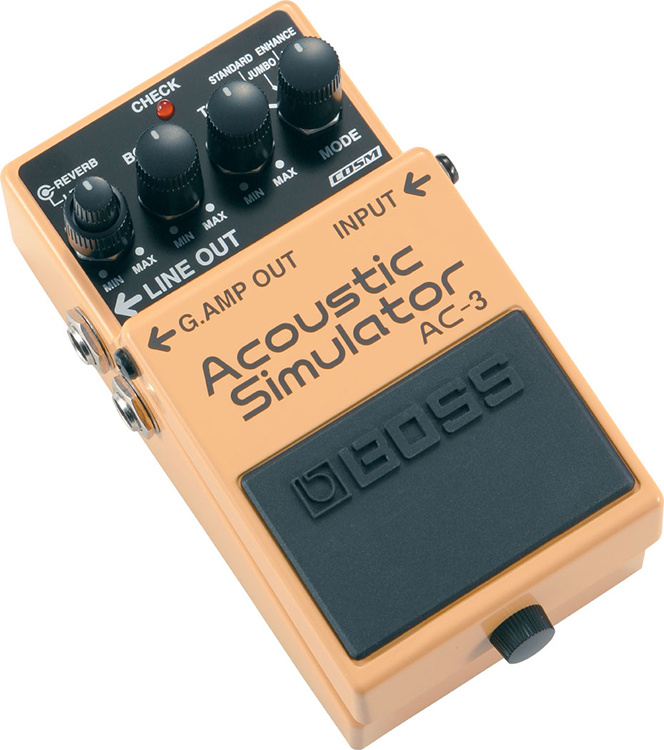

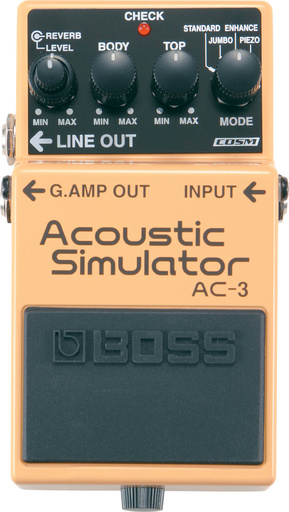

BossAC-3 Acoustic Simulator
Show all:
Simulator,Guitar Pedals
Description
Read moreRead less
The AC-3 is a new "Authentic BOSS" Compact Pedal that BOSS is happy to provide. How many times have you used an electric guitar on stage or in the studio and wished you had brought an acoustic? Carrying an extra guitar to the event isn't always the most appealing choice for musicians who travel light. BOSS AC-3 comes to the aid! With the help of COSM modeling technology, this brand-new small pedal can turn any electric guitar into a range of stunning acoustic guitars.
SPECIFICATIONS
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Bypass | Buffered bypass |
| Controls | MODE knob |
| TOP knob | |
| BODY knob | |
| REVERB/LEVEL knob | |
| Pedal switch | |
| Indicator | CHECK indicator (Used for indication of check battery) |
| Connectors | INPUT jack: 1/4-inch phone type |
| LINE OUT jack: 1/4-inch phone type | |
| G.AMP OUT(Guitar Amp Out) jack: 1/4-inch phone type | |
| DC IN jack | |
| Power Supply | Alkaline battery (9 V, 6LR61) |
| AC adaptor (PSA series: sold separately) | |
| Current Draw | 70 mA |
| Expected battery life under continuous use | Alkaline: Approx. 3.5 hours *These figures will vary depending on the actual conditions of use. |
| Accessories | Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61) |
| Options (sold separately) | AC adaptor: PSA series |
| SIZE AND WEIGHT | |
| Width | 73 mm | 2-7/8 inches |
| Depth | 129 mm | 5-1/8 inches |
| Height | 59 mm | 2-3/8 inches |
| Wight (including battery) | 425 g | 15 oz |
