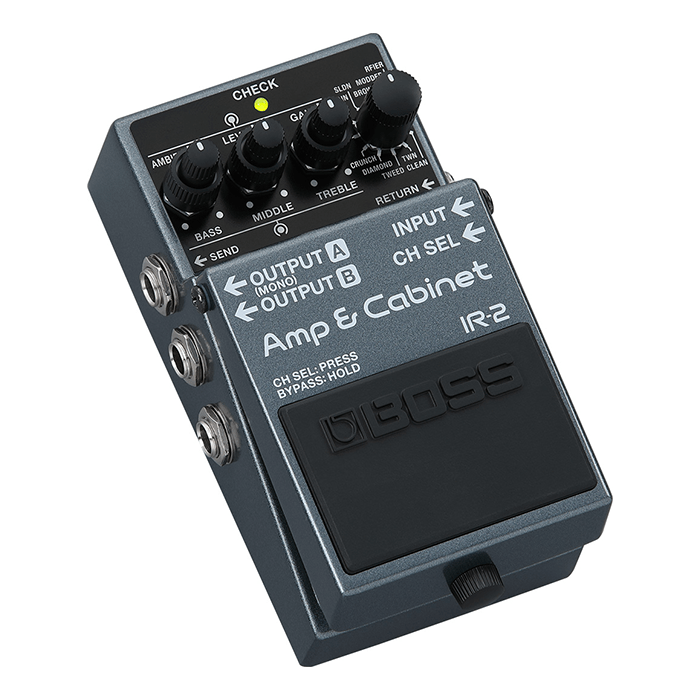

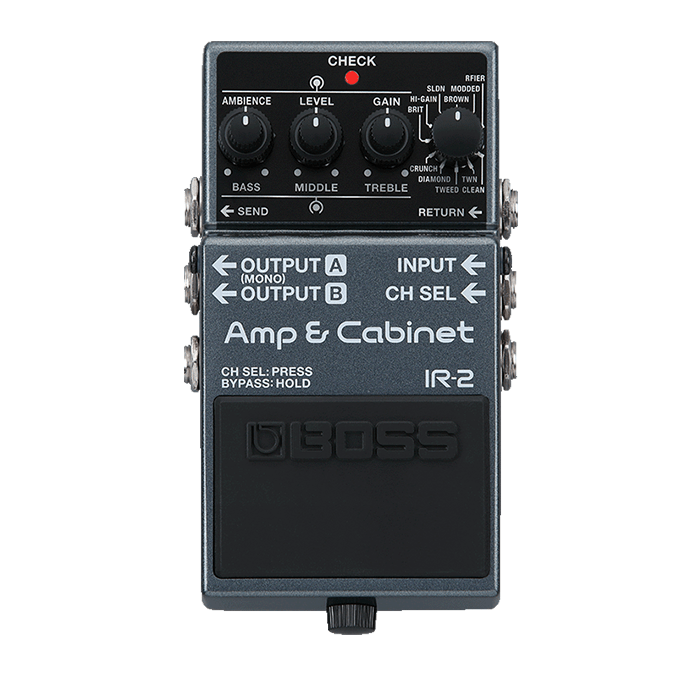

BossAmp Modeller and Cabinet Impulse Response Loader
Show all:
Accessories,Guitar Pedals
Description
Read moreRead less
The Boss Amp Modeller and Cabinet Impulse Response Loader (IR-2) is a compact, versatile tool for guitarists. With 11 premium amp types and Celestion Digital IRs, you can easily craft your signature sound for live or studio setups. Quickly adjust your tone with simple controls and use the mono/stereo loop for post-amp effects. For quiet practice, plug in headphones or connect via USB-C to interface with music software and load your favorite cab IRs.
FEATURES
- Premium amp emulator and cabinet IR loader in a BOSS compact pedal
- Exceptional audio quality with 32-bit floating-point processing and 96 kHz sampling rate
- Eleven different amp types and high-quality cab IRs from Celestion Digital
- Simple user interface with Level, Gain, Bass, Middle, and Treble controls
- Ambience effect with dedicated control
- Mono input and stereo outputs
- Mono/stereo loop for patching in mod, delay, and reverb effects after the amp emulation
- Headphones jack for practice
- USB-C® for recording and audio playback via a computer or mobile device*
- Switch between two amp/cab tones with the pedal switch or an external footswitch
- Dedicated IR-2 IR Loader app (macOS/Windows) for loading your own cabinet IRs
- Amp and cabinet sections can be turned on/off independently for isolated use
- BOSS five-year warranty
SPECIFICATIONS
| Sampling Frequency | 96 kHz |
| AD Conversion | 24 bits + AF method * AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters. |
| DA Conversion | 32 bits |
| Processing | 32-bit floating point |
| IR cabinet data format | Mono, Maximum 500 ms, 44.1/48/96 kHz, 16 bits linear/24 bits linear/32-bit floating point |
| Preset IR cabinet | 11 |
| User IR cabinet slot | 11 * These are the same slots as the preset IR cabinet. |
| Nominal Input Level | INPUT, RETURN: -20 dBu |
| Maximum Input Level | INPUT, RETURN: +7 dBu |
| Input Impedance | INPUT, RETURN: 1 MΩ |
| Nominal Output Level | OUTPUT A (MONO), OUTPUT B, SEND, PHONES: -20 dBu |
| Maximum Output Level | OUTPUT A (MONO), OUTPUT B, SEND, PHONES: +7 dBu |
| Output Impedance | OUTPUT A (MONO), OUTPUT B, SEND: 1 kΩ PHONES: 44 Ω |
| Recommended Load Impedance | OUTPUT A (MONO), OUTPUT B, SEND: 10 kΩ or greater PHONES: 44 Ω or greater |
| Bypass | Buffered bypass |
| Controls | Type knob GAIN knob TREBLE knob LEVEL knob MIDDLE knob AMBIENCE knob BASS knob Pedal switch |
| Indicator | CHECK indicator (Used for indication of Channel and check battery) |

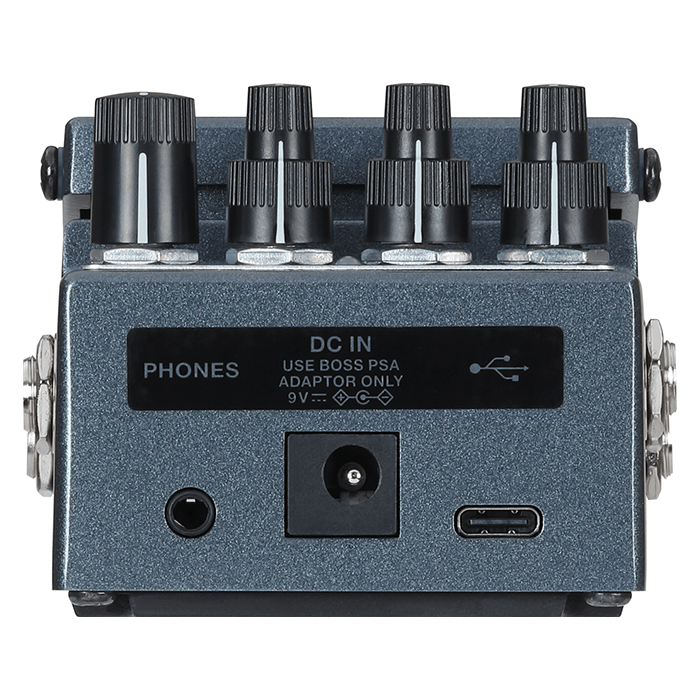

| Connectors | INPUT jack, OUTPUT A (MONO) jack, OUTPUT B jack, SEND jack: 1/4-inch phone type RETURN jack: 1/4-inch TRS phone type CH SEL jack: 1/4-inch phone type DC IN jack PHONES jack: Stereo miniature phone type USB port: USB Type-C(R) |
| Power Supply | Alkaline battery (9 V, 6LR61 or 6LF22, commercially available) AC adaptor (PSA series: sold separately) |
| Current Draw | 160 mA |
| Expected battery life under continuous use | Alkaline: Approx. 3.5 hours (6LR61) * These figures will vary depending on the actual conditions of use. |
| Accessories | Leaflet (“USING THE UNIT SAFELY,” ”IMPORTANT NOTES,” and ”Information”) Dry battery (9 V, 6LR61 or 6LF22) |
| Options (sold separately) | AC adaptor: PSA series Footswitch: FS-5U Dual footswitch: FS-6, FS-7 |
| Size and Weight | |
| Width | 73 mm | 2-7/8 inches |
| Depth | 129 mm | 5-1/8 inches |
| Height | 59 mm | 2-3/8 inches |
| Weight (including battery) | 450 g | 1 lb |
