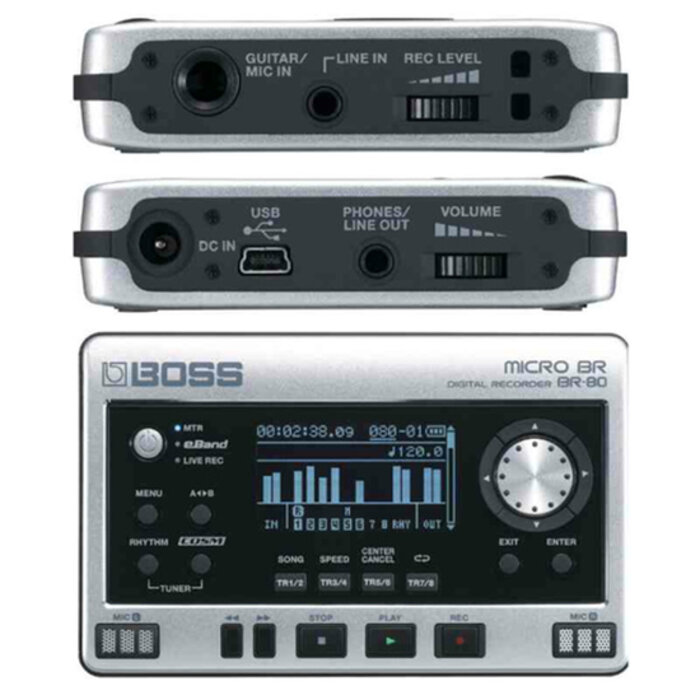

BossBR80 Micro Br Digital Recorder
The BOSS Micro BR BR-80 is a tiny, pocket-sized recorder and jam-along tool, great for guitarists. It has three main ways to use it: MTR mode (8 tracks), like a mini recording studio for building up songs; eBand mode, for playing along with backing tracks or practicing tricky parts, great for learning and performing; and Live Rec mode, for quickly capturing high-quality stereo recordings. You can record in any of these modes, bring songs into the eBand mode to play along with, and then save your finished songs to share.
FEATURES
- Three modes: MTR (multi-track recorder), eBand, and Live Rec
- Records directly to SD/SDHC memory card (up to 32 GB)
- High-quality stereo condenser microphone built in for instant audio capture
- 64 V-Tracks and eight simultaneous playback tracks
- eBand function for phrase training and play-along tracks
- Huge library of built-in backing and rhythm patterns
- World-class COSM amps and effects onboard
- Use as a USB audio interface with built-in effects
SPECIFICATIONS
TRACKS
MTR Mode
- - Tracks: 8
- - Simultaneously recording track: 2
- - V-Track: 64 (8 V-Tracks per each Track)
eBand Mode
- - Tracks: 2 (stereo)
- - Simultaneously recording track: 2 (stereo)
LIVE REC Mode
- - Tracks: 2 (stereo)
- - Simultaneously recording track: 2
- - "Either the playback or the recording
RECORDING MEDIA
- - SDHC Memory Card (4 GB to 32 GB)
- - SD Memory Card (1 GB to 2 GB)
DATA TYPE
MTR Mode
- - Linear (Bit Depth: 16 bits)
eBand Mode
- - eBand Songs (Recording/Playback)
- - WAV (Bit Depth: 16 bits, Playback only)
- - MP3 (Bit Rates: 64 kbps to 320 kbps, Playback only)
LIVE REC Mode
- - WAV (Bit Depth: 16 bits, Recording/Playback)
- - MP3 (Bit Rates: 64 kbps to 320 kbps, Recording/Playback)
AD/DA
- - AD Conversion: 24 bits
- - DA Conversion: 24 bits
- - Sample Rate: 44.1 kHz
RECORDING TIME (CONVERSION IN ONE TRACK)
MTR Mode
- - 3 hours (1 GB), 100 hours (32 GB)
eBand Mode
- - eBand Song: 4 hours (1 GB), 130 hours (32 GB)
- - WAV 16-bit, stereo: 1.5 hours (1 GB), 50 hours (32 GB)
- - MP3 128 kbps, stereo: 16 hours(1 GB), 550 hours (32 GB)
LIVE REC Mode
- - WAV 16-bit, stereo: 1.5 hours (1 GB), 50 hours (32 GB)
- - MP3 128 kbps, stereo: 16 hours (1 GB), 550 hours (32 GB
Note:
* The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created.
* The above number of the MTR mode is the total for all the tracks that are used. If each of the eight tracks contain an equal amount of data, the length of the resulting song will be approximately 1/8 of the above.
OTHER
Nominal Input Level
- - GUITAR/MIC IN jack: -20 dBu (GUITAR/MIC
- - SW = GUITAR), -40 dBu (GUITAR/MIC SW = MIC)
- - LINE IN jack:-10 dBu
Input Impedance
- - GUITAR/MIC IN jack: 1M ohm
- - (GUITAR/MIC SW = GUITAR), 6k ohms (GUITAR/MIC SW = MIC)
- - LINE IN jack: 10k ohms
Nominal Output Level
- - PHONES/LINE OUT jack: -14 dBu
Output Impedance
- - PHONES/LINE OUT jack: 22 ohms
Display
- - Graphic LCD 128 x 64 dots (with backlit)
USB Functions
- - 24-bit/44.1 kHz USB-AUDIO (Hi-Speed USB)
- - USB Mass Storage Class (Hi-Speed USB)
- - BUS Power operation
Connectors
- - GUITAR/MIC IN jack (1/4" phone type)
- - LINE IN jack (Stereo miniature phone type)
- - PHONES/LINE OUT jack (Stereo miniature phone type)
- - USB connector (mini-B type)
- - DC IN jack
Power Supply
- - DC 9V: AC Adaptor (sold separately)
- - Alkaline battery (AA, LR6) x 2
- - Rechargeable Ni-MH battery (AA, HR6) x 2
- - USB Bus Power
Expected battery life: Approximately 6 hours (Alkaline dry cell batteries/with continuous playback of 8 tracks, power save function)
* May vary according to usage conditions, batteries used, and type of SD card used.
Current Draw
- - 130 mA (DC IN)
Accessories
- - SD Memory Card, USB Cable (mini-B type), Alkaline battery (AA, LR6) x 2,
- - Owner's Manual
Options (sold separately)
- - AC Adaptor (PSA series), Silicone Rubber Case and Carrying Pouch: BA-BR80S
SIZE AND WEIGHT
- - Width: 138 mm (5-7/16 inches)
- - Depth: 86 mm (3-7/16 inches)
- - Height: 22 mm (0-7/8 inches)
- - Weight: 140 g0 lbs. (5 oz.)
