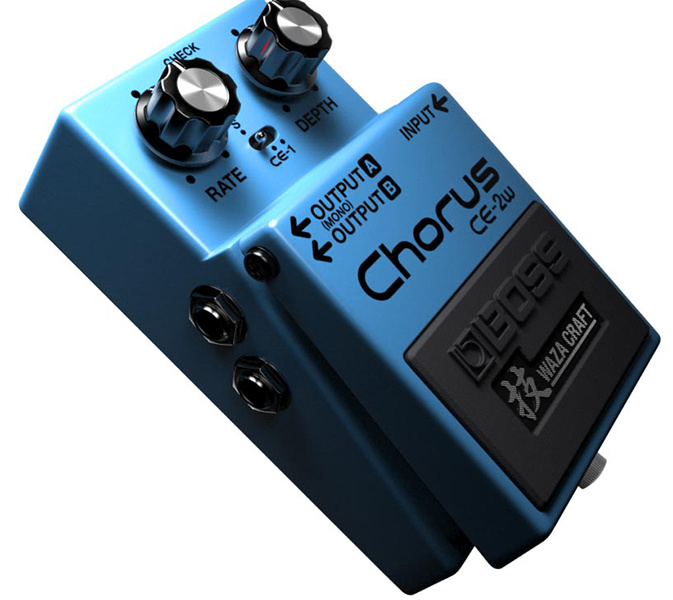

BossChorus Waza Craft Special Edition
The stereo CE-2W's Standard mode adds a wide-ranging new sound field while faithfully recreating the distinctive chorus sound of the mono CE-2. The CE-1 mode accurately mimics the stereo chorus and vibrato tones of the classic CE-1 by adding a programmable chorus depth that was absent from the original pedal. As with the original CE-1 and CE-2, the CE-2W is only produced in Japan to commemorate the birth of BOSS effects.
Features
- - Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
- - Standard mode provides a perfect reproduction of the legendary CE-2 sound
- - CE-1 mode features chorus and vibrato, authentically reproducing the two stereo sound modes in the world’s first chorus pedal
- - Includes new sounds not available in the original pedals, including CE-2 stereo output and variable depth for CE-1 chorus sounds
- - Rate and Depth knobs provide fine sound adjustment in both pedal modes
- - Premium all-analog circuitry with bucket-brigade (BBD) delay line
- - Made in Japan to celebrate the 40th anniversary of BOSS effects
- - BOSS five-year warranty
SPECIFICATIONS
Modes
3 modes
- - Standard
- - CE-1 Chorus
- - CE-1 Vibrato
Nominal Input Level: - 20 dBu
Input Impedance: - 1 M ohm
Nominal Output Level: -20 dBu
Recommended Load Impedance: - 10 k ohms or greater
Bypass: - Buffered bypass
Buffered bypass
- - Pedal switch
- - Standard/CE-1 Mode switch
- - DEPTH knob
Indicator: - CHECK indicator (Serves also as battery check indicator)
Connectors
- - INPUT jack: 1/4-inch phone type
- - OUTPUT A (MONO) jack: 1/4-inch phone type
- - OUTPUT B jack: 1/4-inch phone type
- - DC IN jack
Power Supply
- - Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
- - AC adaptor (sold separately)
Current Draw: - 25 mA
Power
- - Alkaline: Approx. 32 hours
- - Carbon: Approx. 18 hours
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Accessories
- - Owner's manual
- - Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- - Alkaline battery (9V, 6LR61)
Options (sold separately): AC adaptor: PSA series
SIZE AND WEIGHT
- - Width: 73 mm (2-7/8 inches)
- - Depth: 129 mm (5-1/8 inches)
- - Height: 59 mm (2-3/8 inches)
- - Weight (including battery): 450 g (1 lb)
