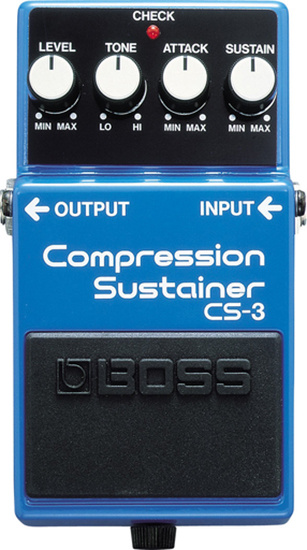

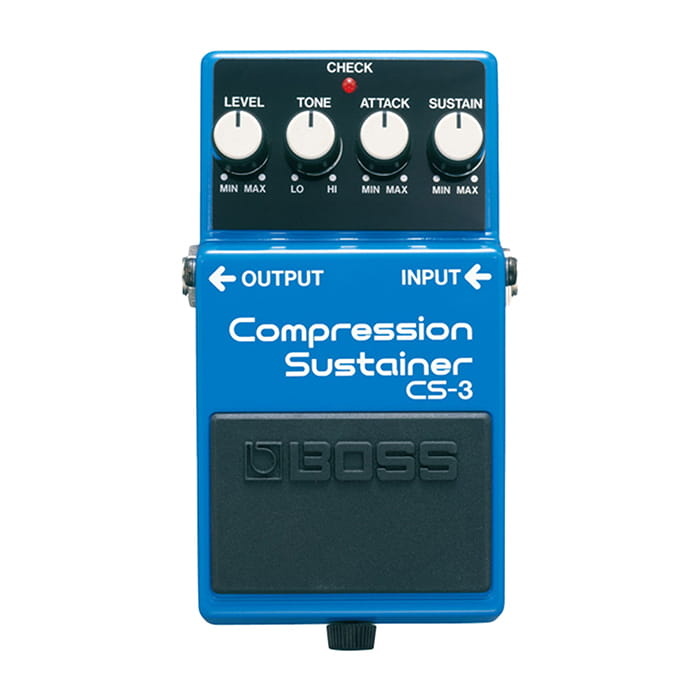

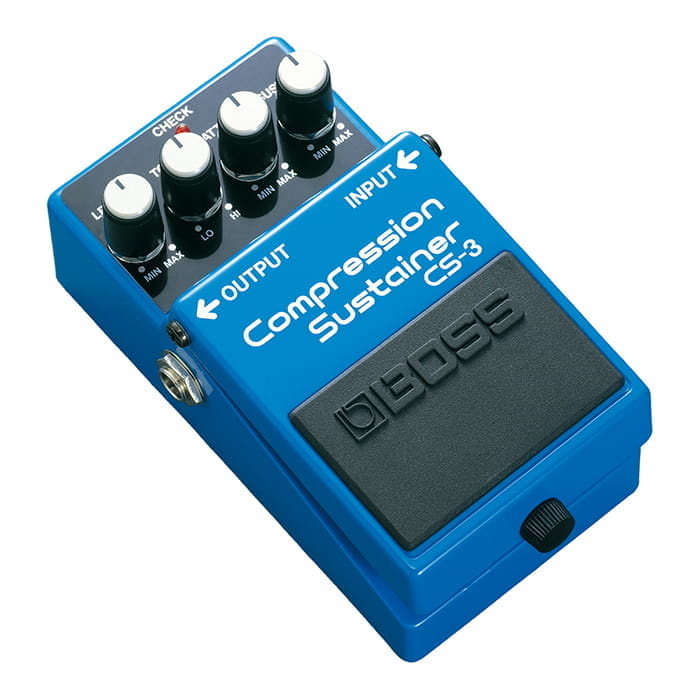

BossCS-3 Comp Sustainer

SPECIFICATIONS

Nominal Input Level: -20 dBu

Input Impedance: 1 M ohm

Nominal Output Leve: -20 dBu

Output Impedance: 1 k ohm

Recommended Load Impedance: 10 k ohms or greater

Bypass: Buffered bypass

Controls

• - SUSTAIN knob
• - ATTACK knob
• - TONE knob
• - LEVEL knob
• - Pedal switch

Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors

• - INPUT jack: 1/4-inch phone type
• - OUTPUT jack: 1/4-inch phone type
• - DC IN jack

Power Supply

• - Carbon-zinc battery (9V, 6F22)
• - Alkaline battery (9V, 6LR61)
• - AC adaptor (PSA series: sold separately)

Current Draw: 20 mA

Expected battery life under continuous use

• - Carbon: Approx. 10.5 hours
• - Alkaline: Approx. 26 hours

*These figures will vary depending on the actual conditions of use.

Accessories

• - Owner's manual
• - Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• - Dry battery/9 V type (6F22)

Options (sold separately): AC adaptor: PSA series

SIZE AND WEIGHT

• - Width: 73 mm (2-7/8 inches)
• - Depth: 129 mm (5-1/8 inches)
• - Height: 59 mm (2-3/8 inches)
• - Weight: 380 g (14 oz)
