Description

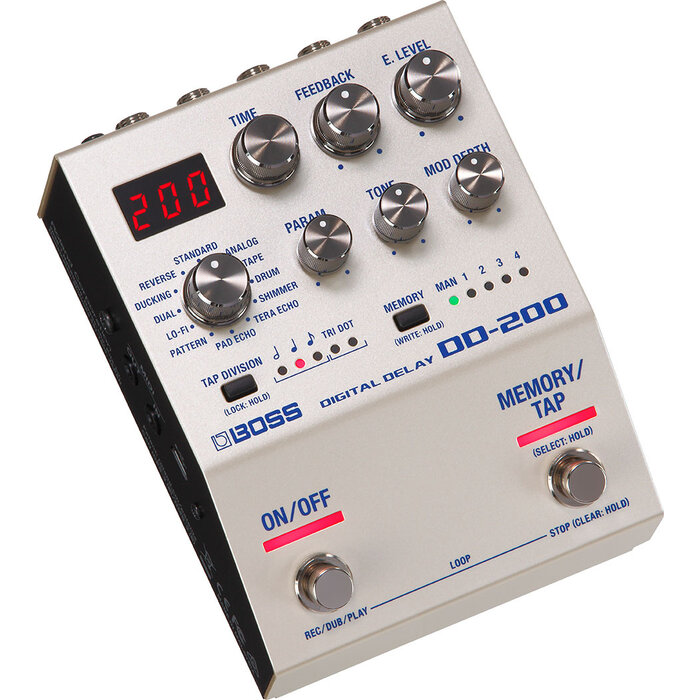

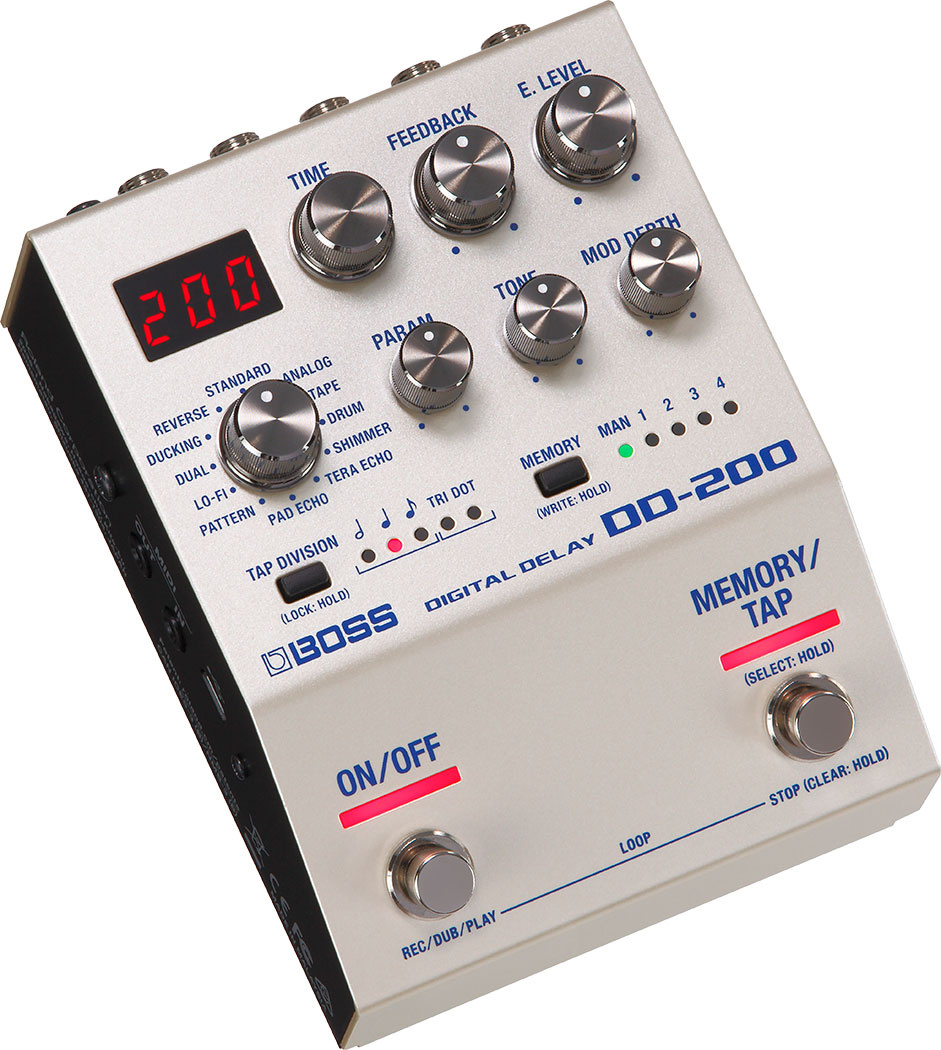

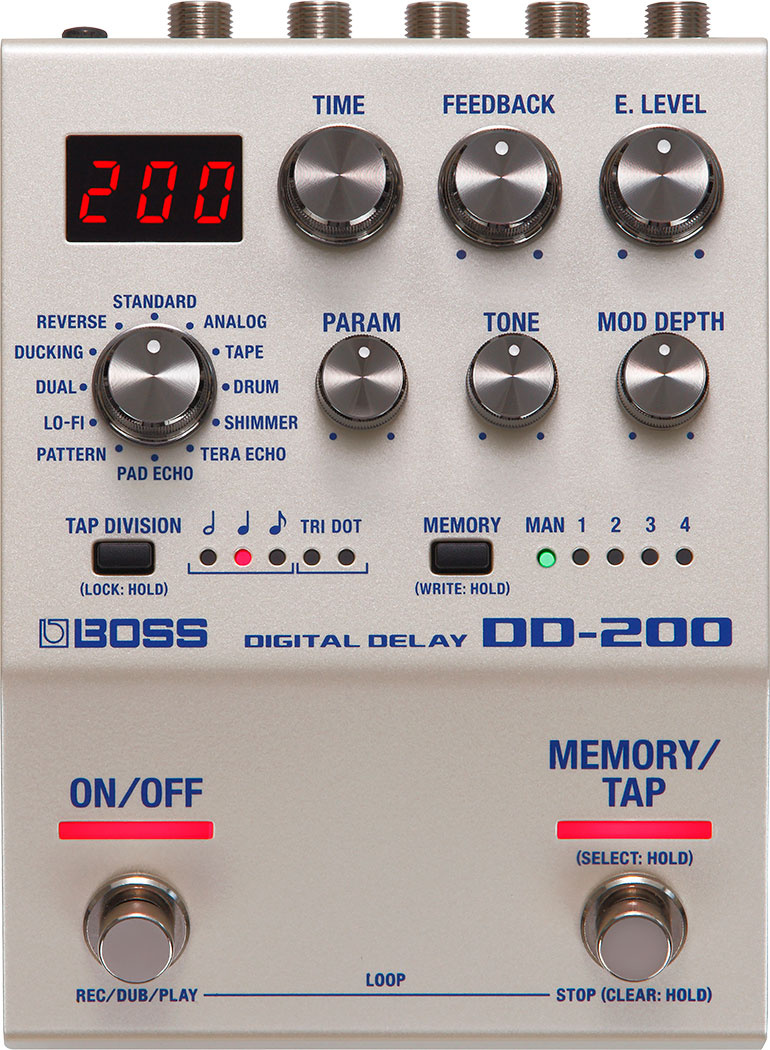

The DD-200 Digital Delay combines sounds and functionality from the DD-500 flagship model into a smaller package. You may tune up anything from simple echoes to rich ambient pads and anything in between thanks to the twelve different settings that offer an exciting diversity of delay hues from contemporary digital to vintage analog. Additionally, a looper that is always available and a customizable carryover mechanism are included for smooth memory transitions.

Features

- Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
- Twelve versatile modes provide a wide range of delay types
- Fast, easy operation with hands-on controls
- Access 128 user setups from the panel or MIDI program change
- Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button
- Phrase looper with up to 60 seconds of recording time
- Panel Lock function disables controls to prevent unwanted changes
- Customizable multi-function footswitches for bypass, tap tempo, memory selection, looper control, and more
- Support for expanded control via external footswitches, an expression pedal, or MIDI
- Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
- Micro USB jack for firmware updates
- Analog dry through and buffered bypass
- Runs on PSA-series AC adaptor or three AA-size batteries

SPECIFICATIONS

Sampling Frequency

96 kHz

AD/DA Conversion

32 bits

Processing

32-bit floating point

Modes

12 modes
STANDARD, ANALOG, TAPE, DRUM, SHIMMER, TERA ECHO, PAD ECHO, PATTERN, LO-FI, DUAL,
DUCKING, REVERSE

Memory

127 + Manual

Nominal Input Level

INPUT A/MONO, B: -10 dBu

Maximum Input Level

INPUT A/MONO, B: +7 dBu

Input Impedance

INPUT A/MONO, B: 2 M ohm

INPUT A/MONO, B: 2 M ohm

OUTPUT A/MONO, B: -10 dBu

Maximum Output Level

OUTPUT A/MONO, B: +7 dBu

Output Impedance

OUTPUT A/MONO, B: 1 k ohms

Recommended Load Impedance

OUTPUT A/MONO, B: 10 k ohms or greater

Bypass

Buffered bypass

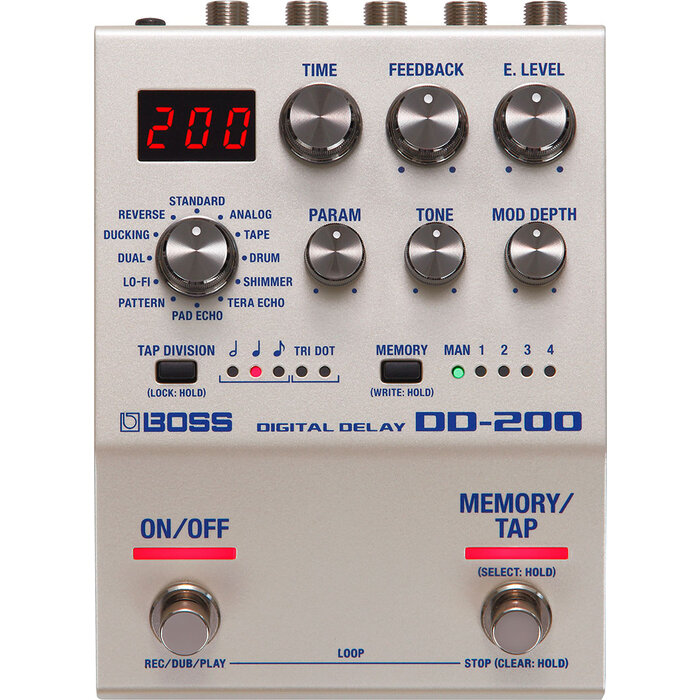

Controls

ON/OFF switch, MEMORY/TAP switch
MODE knob, TIME knob, FEEDBACK knob, E. LEVEL Knob, PARAM knob, TONE knob, MOD DEPTH
knob
TAP DIVISION button, MEMORY button

Display

7 segments, 3 characters (LED)

Indicator

TAP DIVISION indicator, MEMORY (MAN, 1--4) indicators

Connectors

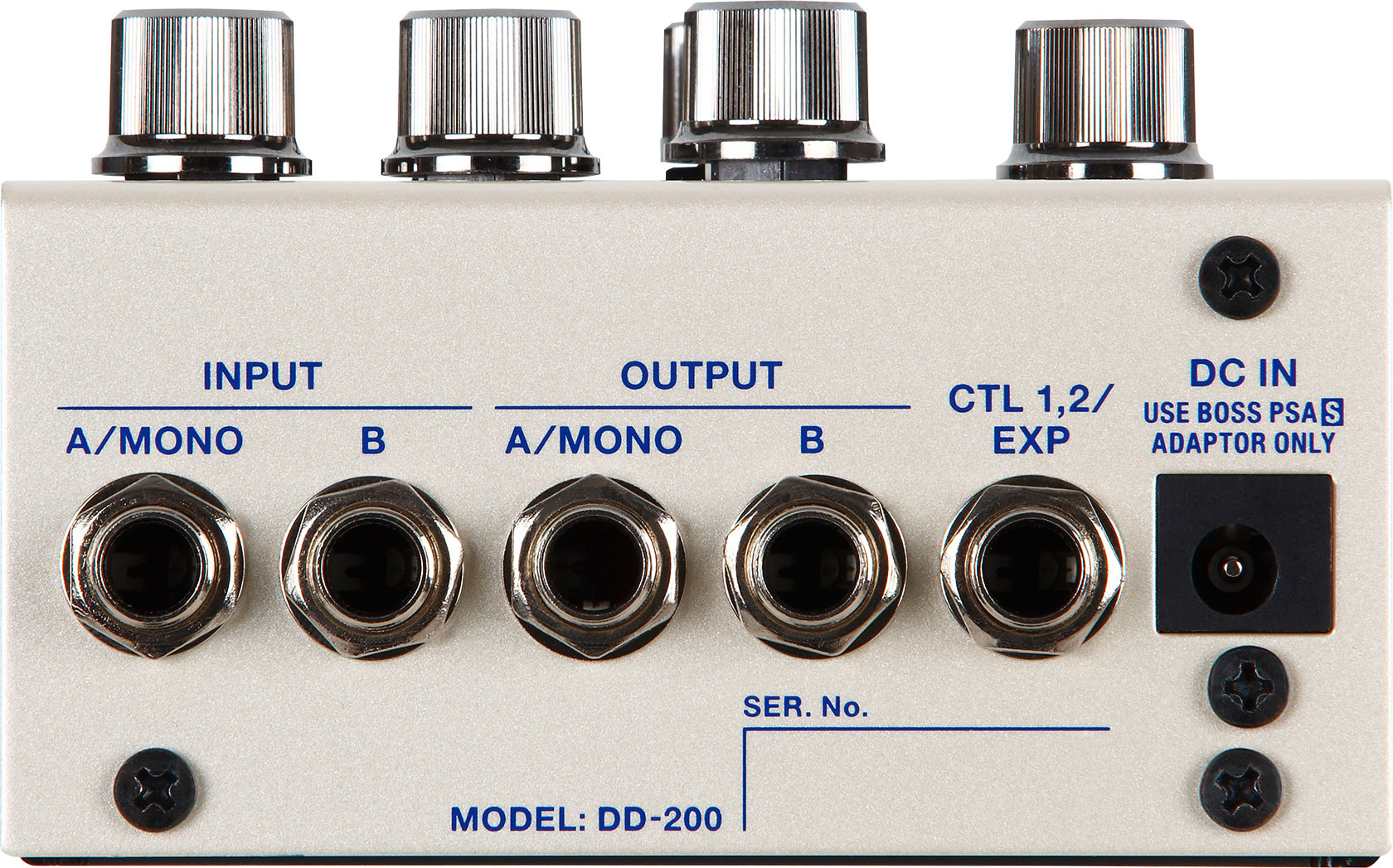

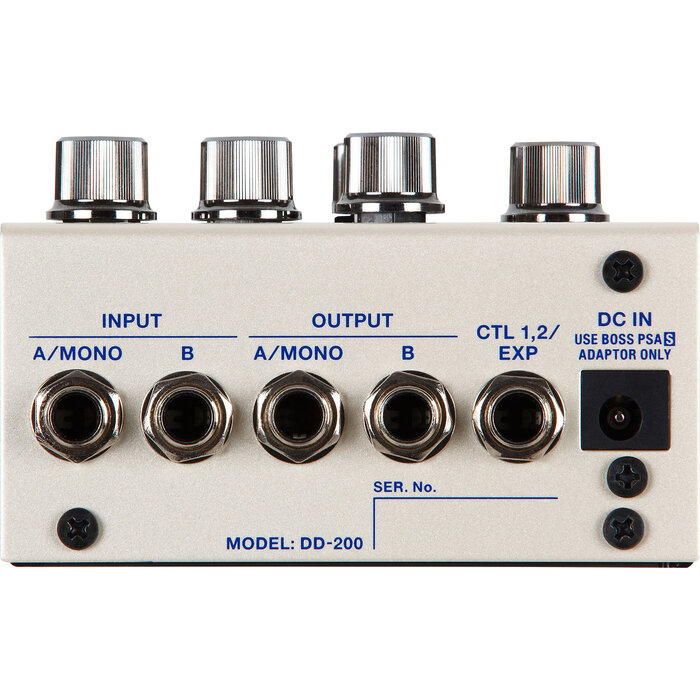

INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type

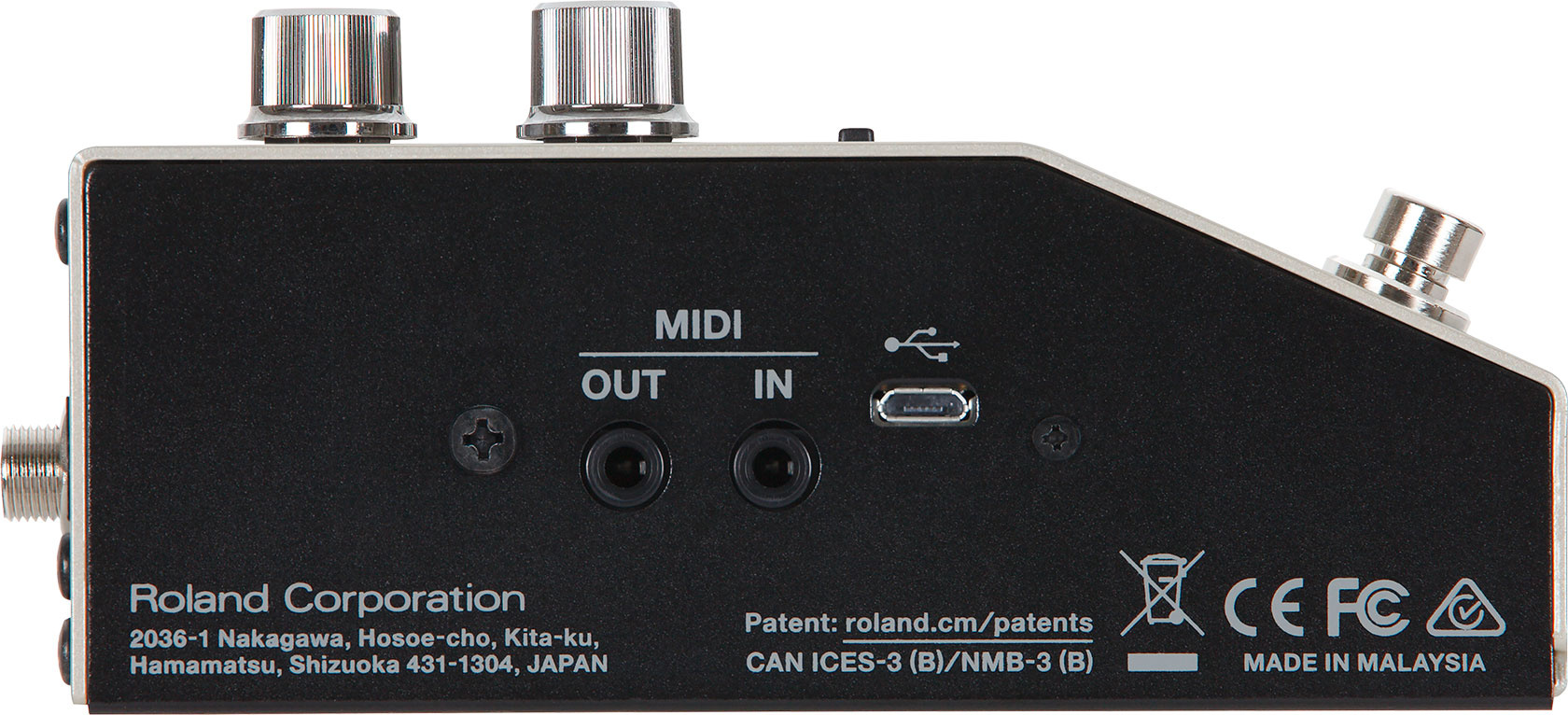

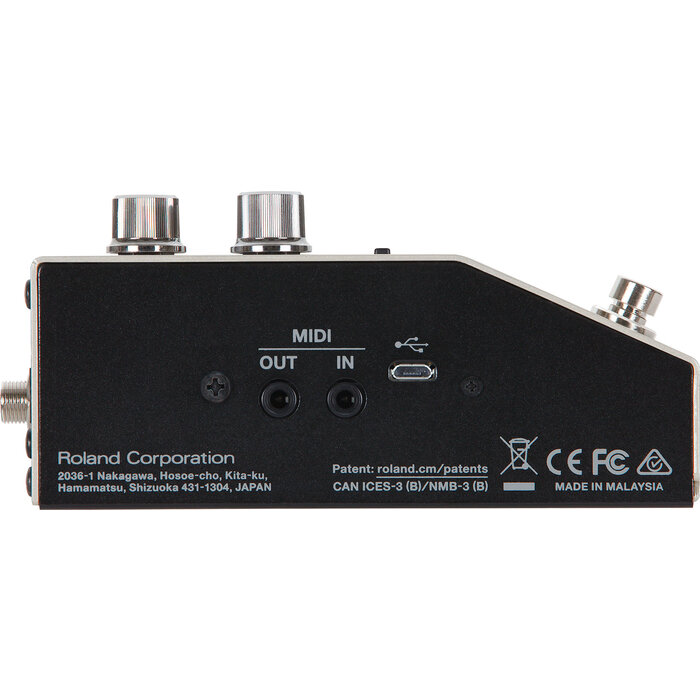

MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)

Power Supply

Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)

Current Draw

225 mA

Expected Battery Life Under Continuous Use

Alkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.

Accessories

Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4

Options (sold separately)

AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI cable: BMIDI-5-35

SIZE AND WEIGHT

Width: 101 mm (4 inches)
Depth:138 mm (5-7/16) inches)
Height: 63 mm (2-1/2) inches
Height: (including rubber foot): 65 mm (2-9/16 inches)
Weight: 610 g (1 lb 6 oz)
Weight: (including battery)680 g (1 lb 8 oz)

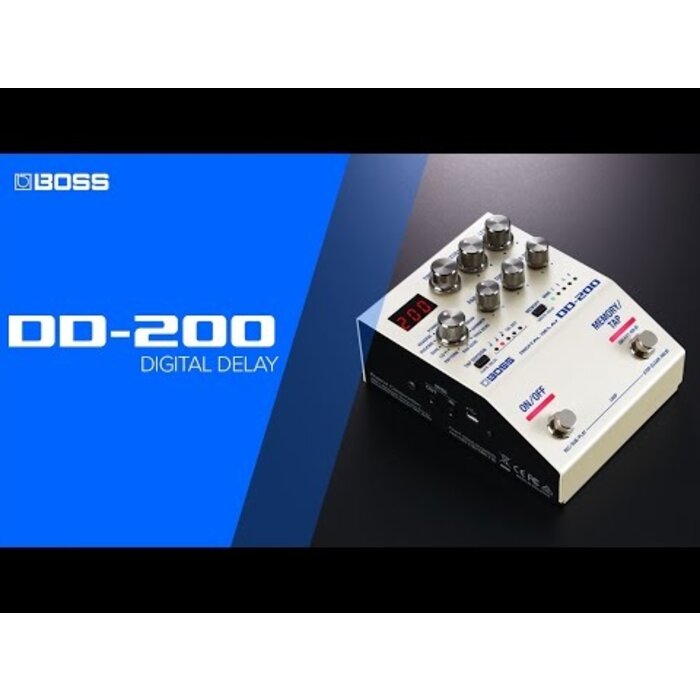

BossDD-200 Digital Delay
