BossDimension Chorus Wazacraft DC2W
Show all:
Chorus,Guitar Pedals
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
DescriptionRead moreRead less

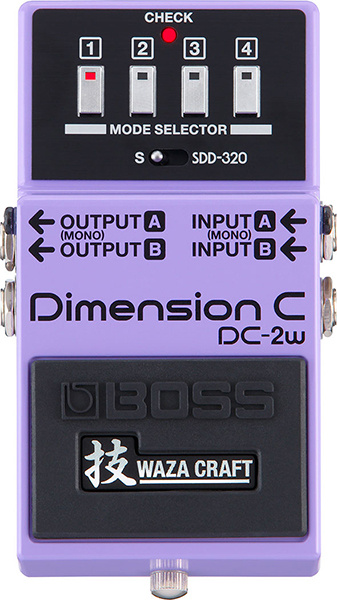

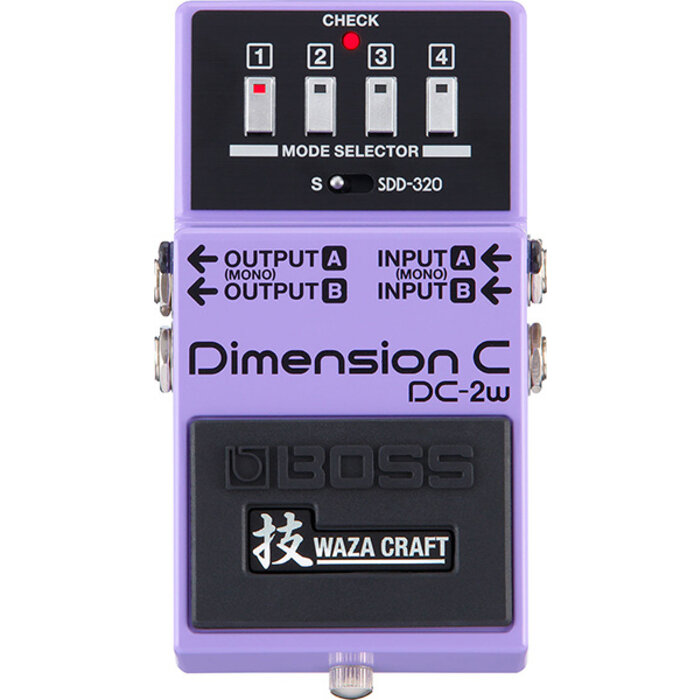

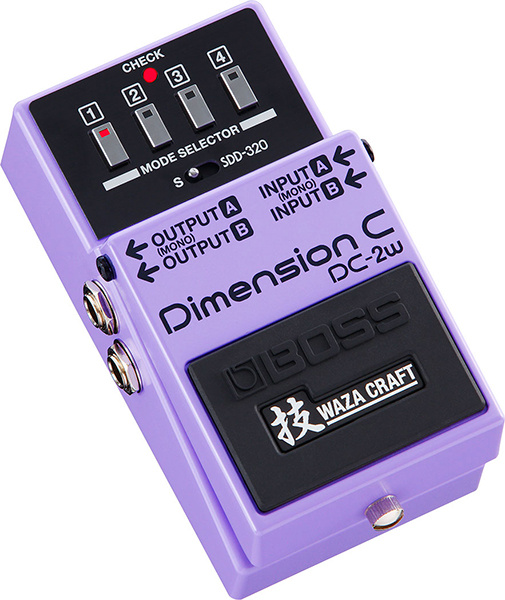

The DC-2W combines both the renowned SDD-320 Dimension D studio rack effect and a flawless sonic replica of the original DC-2 Dimension C pedal. The DC-2W's easy four-button preset interface is similar to that of the original 1980s effects, but it has been upgraded with electronic switching that unlocks a wide range of sonic variants not present in the vintage units.
Features
- - Premium Waza Craft pedal with all-analog audio circuitry
- - Standard mode provides the sound of the original DC-2 Dimension C pedal
- - SDD-320 mode authentically reproduces the vintage Roland SDD-320 Dimension D, a legendary studio rack effect heard on countless hit records
- - Iconic four-button preset interface, updated with reliable electronic switches and LED status indicators
- - Four main sounds in each mode, plus six variations by pressing two switches together (20 total sounds available)
- - Premium buffer and enhanced bypass circuitry
- - Versatile I/O for integrating with any mono or stereo application, from guitar and bass pedalboards to keyboards and studio mixing
- - Made in Japan
- - BOSS five-year warranty
SPECIFICATIONS
Mode
- - S (Standard)
- - SDD-320
Nominal Input Level
- -20 dBu
Input Impedance
- - 2.2 M ohms
Nominal Output Level
- -20 dBu
Output Impedance
- - 1 k ohm
Recommended Load Impedance
- - 10 k ohms or greater
Bypass
- - Buffered bypass
Controls
- - Pedal switch
- - S/SDD-320 switch
- - MODE SELECTOR [1]--[4] buttons
Indicators
- - CHECK indicator (Serves also as battery check indicator)
- - MODE SELECTOR [1]--[4] indicators
Connectors
- - INPUT A (MONO) jack: 1/4-inch phone type
- - INPUT B jack: 1/4-inch phone type
- - OUTPUT A (MONO) jack: 1/4-inch phone type
- - OUTPUT B jack: 1/4-inch phone type

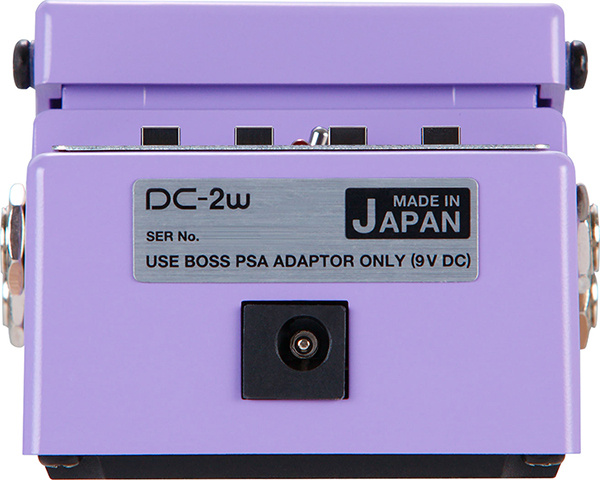

- - DC IN jack
Power Supply
- - Alkaline battery (9 V, 6LR61)
- - AC adaptor (PSA series: sold separately)
Current Draw
- - 65 mA
Expected battery life under continuous use
- - Alkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.
Accessories
- - Owner's manual
- - Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- - Alkaline battery (9 V, 6LR61)
Options (sold separately)
- - AC adaptor: PSA series
SIZE AND WEIGHT
- - Width: 73 mm l 2-7/8 inches
- - Depth: 129 mm l 5-1/8 inches
- - Height: 59 mm l 2-3/8 inches
- - Weight (including battery): 450 g l 1 lb
