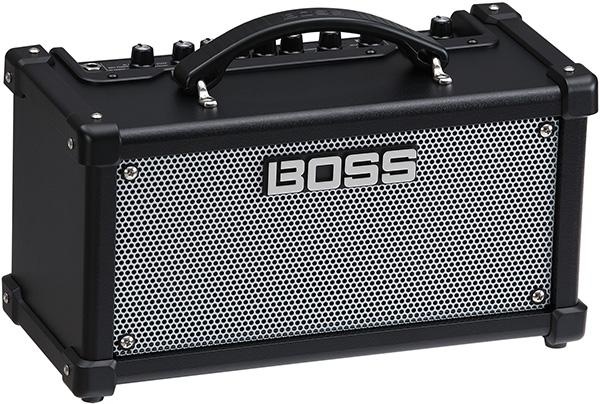

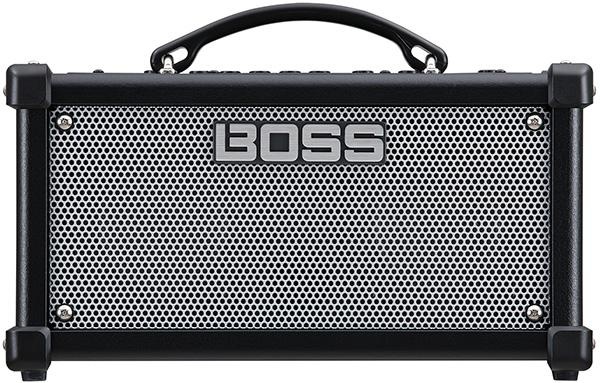

BossDual Cube LX Guitar Amplifier
Show all:
Battery Amps,Amps
Description
Read moreRead less
This long legacy is continued by the DUAL CUBE LX Guitar Amplifier, which was upgraded with the most recent BOSS innovations for unparalleled flexibility. The ideal guitar amp for at-home practice and jam sessions with friends is this desktop powerhouse. Additionally, with a wide range of connectivity possibilities, it may be used for many other applications, including performing and recording.
Features
- - Ultra-portable stereo amplifier with professional sound and features
- - Two custom-designed 4-inch speakers
- - 10-watt stereo power amp (5 watts x 2)
- - Eight newly developed guitar amp types plus one mic preamp type
- - Seven onboard effects with deep editing via the Dual Cube LX Editor app
- - Stereo input with wide, immersive sound for modelers and stereo pedals
- - Three-band equalizer
- - Store amp and effects settings in 27 memories (3 memories for each amp type)
- - Powered via AC adaptor (included) or eight AA batteries
- - Stereo line output with support for inline headphones microphones
- - USB audio for direct recording and live streaming
- - Control jack for up to two external footswitch
- - Selectable Loopback function for USB and i-Cube Link/Aux in
- - Onboard looper (requires optional footswitch)
- - Connector for optional Bluetooth Audio MIDI Dual Adaptor (BT-Dual)
SPECIFICATIONS
| Rated Power Output | 10 W (5 W+5 W) |
| Nominal Input Level | GUITAR/STEREO IN L, R: -10 dBu (1 M ohm) |
| i-CUBE LINK/AUX IN: -20 dBu (15 k ohm) | |
| Nominal Output Level | LINE OUT L/MONO, R: -10 dBu |
| Speakers | 10 cm (4 inches) x 2 |
| Controls | POWER switch |
| AMP TYPE knob (ACOUSTIC SIM, JC CLEAN, US COMBO, BRIT COMBO, HI-GAIN STACK, METAL STACK, EXTREME, MIC, STEREO IN) | |
| Memory Button | |
| Gain Knob | |
| Volume Knob | |
| Bass Knob | |
| Middle Knob | |
| Treble Knob | |
| Effect Knob (Chorus, Flanger, Phaser, Tremolo, Heavy Octave) | |
| Delay/Reverb knob (Delay, Reverb, Spring) | |
| Tap Button | |
| Mic VOL Knob | |
| Master Knob | |
| Loopback Switch (i-cube link/Aux in) | |
| Loopback switch (USB) | |
| Indicator | Power |
| Memory | |
| Tap | |
| Rec | |
| Play | |
| DUB | |

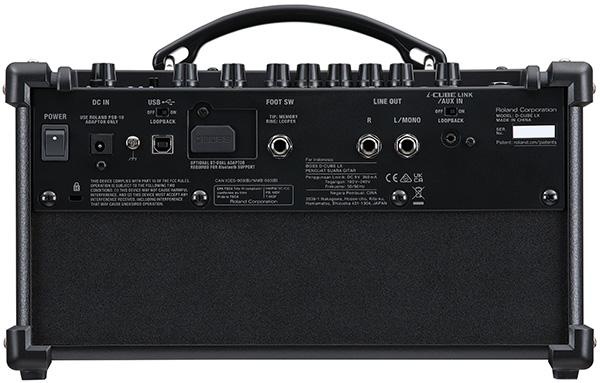

| Connectors | GUITAR jack/STEREO IN L, R jacks: 1/4-inch phone type |
| PHONES/REC OUT jack: Stereo Miniature phone type (Stereo, CTIA) | |
| i-CUBE LINK/AUX IN jack: Stereo Miniature phone type (Stereo, CTIA) | |
| LINE OUT L/MONO, R jacks: 1/4-inch phone type | |
| FOOT SW jack: 1/4-inch TRS phone type | |
| Bluetooth ADAPTOR connector: Dedicated connector | |
| USB port: USB B type | |
| DC IN jack | |
| Power Supply | AC adaptor (DC 9 V) |
| Alkaline battery (AA, LR6) x 8 | |
| Rechargeable Ni-MH battery (AA, HR6) x 8 | |
| Current Draw | 360 mA |
| Expected battery life under continuous use | Alkaline battery: Approximately 8 hours |
| Rechargeable Ni-MH battery: Approximately 10 hours (*1) | |
| *1 When using batteries having a capacity of 2,500 mAh. | |
| * These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. | |
| Accessories | Owner's Manual |
| Leaflet USING THE UNIT SAFELY | |
| AC adaptor | |
| Power cord | |
| Mini cable (4-pole miniature phone type) | |
| Options (sold separately) | Footswitch: FS-5U, FS-6, FS-7 |
| Bluetooth® Audio MIDI Dual Adaptor (MODEL BT-DUAL) | |
| Wireless MIDI Expression Pedal: EV-1-WL | |
| SIZE AND WEIGHT | |
| Width | 341 mm | 13-7/16 inches |
| Depth | 162 mm | 6-7/16 inches |
| Height | 215 mm | 8-1/2 inches |
| Weight (excluding AC adaptor) | 3.3 kg | 7 lbs 5 oz |
