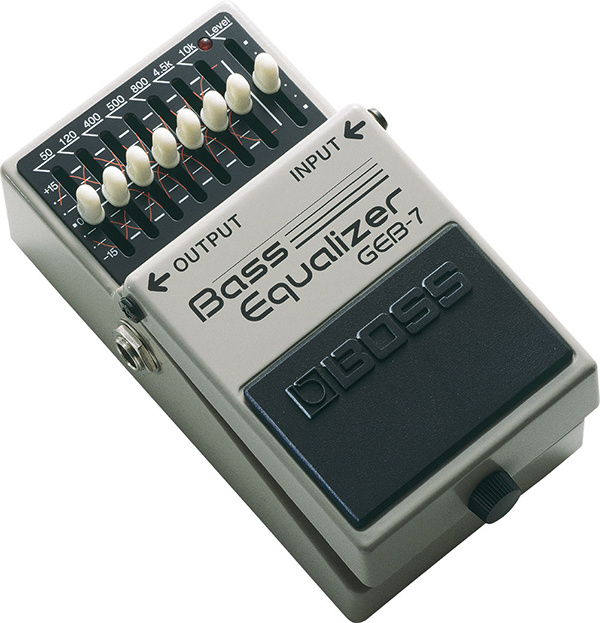

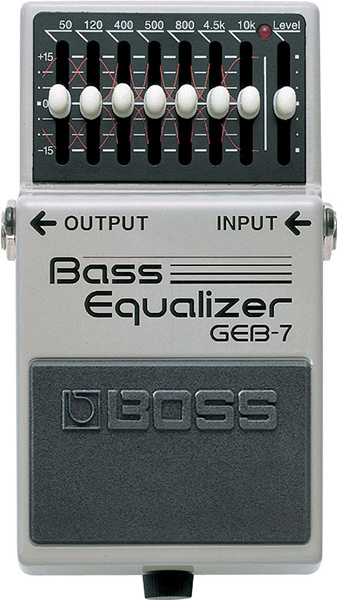

BossGEB-7 Bass EQ
Show all:
Guitar Pedals,EQ
DescriptionRead moreRead less
The GEB-7 is a seven-band equalizer made especially for the electric bass's frequency spectrum. The GEB-7 is excellent for changing depth and bottom end of an upright bass with pickups because the frequency range goes down to 50Hz.
Features
- - 50Hz to 10kHz frequency range specifically designed for bass
- - Full range response, even for five- and six-string basses
- - Can be used as a "boost" or "cut" pedal using the level control knob
- - Great for eletric-acoustic bass applications
- - AC adaptor or 9V battery operation
- - BOSS five-year warranty
SPECIFICATIONS
Nominal Input Level
- -20 dBu
Input Impedance
- - 1 M ohm
Nominal Output Level
- - 20 dBu
Output Impedance
- - 1 k ohm
Recommended Load Impedance
- - 10 k ohm or greater
Bypass
- - Buffered bypass
Controls
- - Level Control knob
- - Equalizer Control knob
- - 50, 120, 400, 500, 800, 4.5 k, 10 kHz
- - Pedal switch
Indicator
- - CHECK indicator (Serves also as battery check indicator)
Connectors
- - INPUT jack: 1/4-inch phone type
- - OUTPUT jack: 1/4-inch phone type
- - DC IN jack
Power Supply
- - Carbon-zinc battery (9 V, 6F22)
- - Alkaline battery (9 V, 6LR61)
- - AC adaptor (PSA series: sold separately)
Current Draw
- - 30 mA
Expected battery life under continuous use
- - Carbon: Approx. 8.5 hours
- - Alkaline: Approx. 18.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories
- - Owner's Manual
- - Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- - Carbon-zinc battery (9 V, 6F22)
Options (sold separately)
- - AC adaptor: PSA series
SIZE AND WEIGHT
- - Width: 73 mm l 2-7/8 inches
- - Depth: 129 mm l 5-1/8 inches
- - Height: 59 mm l 2-3/8 inches
- - Weight (including battery): 400 g l 15 oz
