Description

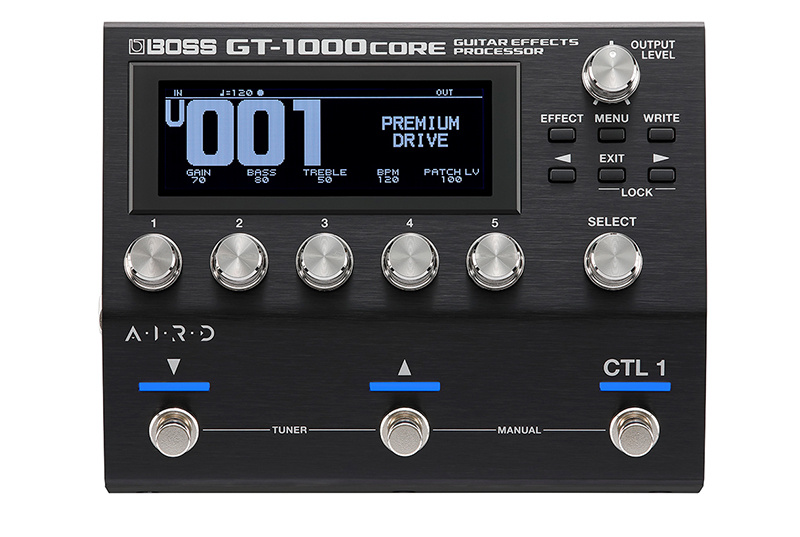

The GT-1000CORE gives the most comprehensive guitar and bass processing experience available in a single stompbox. It is incredibly powerful and extremely adaptable. This miniature juggernaut contains the entire DSP power of the GT-1000 flagship, powering class-leading sound quality, cutting-edge AIRD technology, 24 simultaneous effects blocks, and over 140 distinct amp/effect types for limitless creative freedom. The GT-1000CORE pedalboard adapter functions as a standalone processor for both live and studio performance. And because of its adaptable I/O and extensive control support, it fits in perfectly as the hub of any rig.

FEATURES

The complete internal tone processing of the GT-1000 in a compact and portable stompbox
Unlimited sound creation with 24 simultaneous effects blocks—including two different amps—and numerous series/parallel routing options
Unmatched sound quality with 32-bit AD/DA, 32-bit floating-point processing, and 96 kHz sampling rate
AIRD (Augmented Impulse Response Dynamics) technology delivers natural feel and optimized integration with all types of external devices
Includes classic BOSS effects, vintage stomps, advanced MDP effects, and more
Ultra-fast patch switching and delay carryover
Innovative Stompbox feature simplifies using common effects settings in many different patches
Looper for practicing, developing ideas, and enhancing live performances
Two send/return loops for external effects, four-cable method, or separate direct outputs
16 locations for loading WAV-format speaker impulse responses
Supports external control via footswitches, expression pedals, USB, and TRS MIDI
Control out function for switching amp channels
USB audio/MIDI interface for computer-based recording and editing
Download and share Livesets on BOSS Tone Exchange
Dedicated mode for bass guitar applications

SPECIFICATIONS

Sampling Frequency	96 kHz
AD/DA Conversion	32 bits
Processing	32-bit floating point
Effects	185 types
Memory	250 (User) + 250 (Preset)
Phrase Loop	38 sec. (MONO), 19 sec. (STEREO)
Tuner Internal Detection	+/- 0.1 cent
Normal Input Level	INPUT L/MONO, R: -10 dBu RETURN 1, RETURN 2: -10 dBu
Maximum Input Level	INPUT L/MONO, R: +12 dBu RETURN 1, RETURN 2: +12 dBu
Input Impedance	INPUT L/MONO, R: 2 M ohms RETURN 1, RETURN 2: 1 M ohm
Normal Output Level	OUTPUT L/PHONES, R/MONO: -10 dBu SEND 1, SEND 2: -10 dBu
Maximum Output Level	OUTPUT L/PHONES, R/MONO: +12 dBu SEND 1, SEND 2: +12 dBu
Output Impedance	OUTPUT L/PHONES, R/MONO: 44 ohms SEND 1, SEND 2: 1 k ohm
Recommended Load Impedance	OUTPUT L/PHONES, R/MONO: 10 k ohms or greater (Phones: 44 ohms or greater) SEND 1, SEND 2: 10 k ohms or greater
Controls	DOWN switch, UP switch, CTL 1 switch, EFFECT button, MENU button, EXIT button, WRITE button, PAGE button, 1-5 knobs, SELECT knob, OUTPUT LEVEL knob
Display	Graphic LCD 256 x 80 dots
Indicators	UP indicator, DOWN indicator, CTL 1 indicator

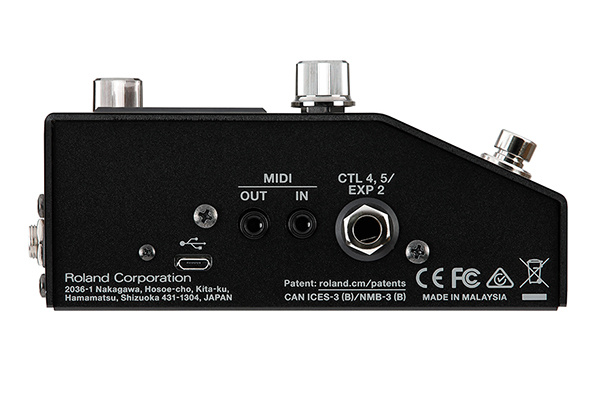

Connectors	INPUT (L/MONO, R), OUTPUT (R/MONO) jacks: 1/4-inch phone type OUTPUT (L/PHONES) jack: 1/4-inch TRS phone type CTL 2, 3/EXP 1, CTL 4, 5/EXP 2 jacks: 1/4-inch TRS phone type MIDI (IN, OUT) connectors: Stereo miniature phone type USB COMPUTER port: USB Micro-B type DC IN jack
Power Supply	AC adaptor
Current Draw	670 mA
Power Consumption (OFF Mode)	0.0 W
Accessories	AC adaptor, Owner's manual, Leaflet "USING THE UNIT SAFELY", Rubber foot x 4
Options (Sold Separately)	Footswitch: FS-5U Dual footswitch: FS-6, FS-7 Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5 TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
Size & Weight	Width: 173 mm (6-13/16 inches) Depth: 135 mm (5-3/8 inches) Height: 65 mm (2-9/16 inches) Weight: 920 g (2 lbs 1 oz)
