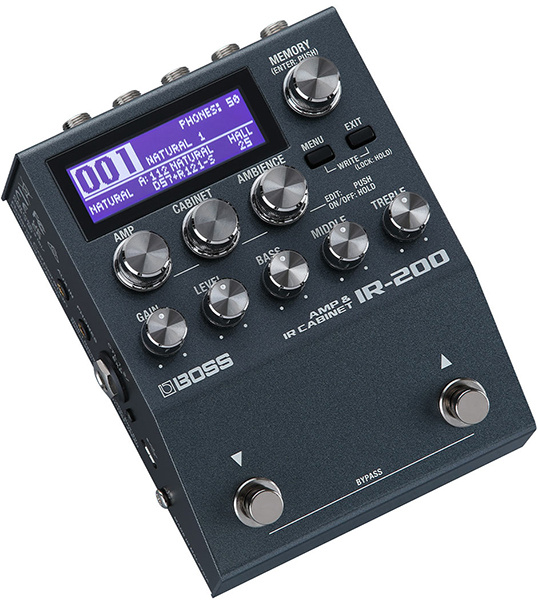

BossIR-200 Direct Amp and IR Power Pedal
The newest compact amp/IR solution, the IR-200, is now available. This powerful stomp offers great audio quality, high-end amps, detailed sound shaping, and quick sound recall with 128 memories to bring direct sound for guitar and bass to the next level of performance. Additionally to 128 slots for loading custom mono or stereo IRs, the board has over 150 high-res cab impulse responses from BOSS and Celestion Digital.
Features
- - Pedal-based amp simulator and impulse response loader with premium sound and features
- - 32-bit AD/DA, 32-bit floating-point processing, and 96 kHz sampling rate
- - 128 user IR slots with support for mono and stereo WAV files, up to 32-bit floating-point/96 kHz resolution, and 200 or 500 ms length
- - Large onboard preset cab IR library with 144 BOSS IRs and 10 Celestion Digital IRs
- - Class-leading IR reproduction with two custom DSPs
- - Eight guitar and three bass amp types to cover a wide range of styles
- - Run up to two IRs at once in mono or stereo
- - 128 memories for storing user setups
- - Two EQs in each memory plus two global EQs, all with the selectable parametric or graphic operation
- - Room, Studio, and Hall ambience types
- - Effects loop with mono send and mono/stereo return, with selectable pre-cab or post-EQ positioning
- - Dedicated software for loading cab IRs and backing up memories
- - Versatile USB audio interface for recording and playback with music software on Mac and Windows computers and iOS devices
- - Deep external control support via footswitches, an expression pedal, and TRS MIDI
SPECIFICATIONS
Sampling frequency
- - 96 kHz
AD Conversion
- - 32 bits + AF method
* AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion
- - 32 bits
Processing
- - 32-bit floating-point
Memory
- - 128
IR cabinet data format
- - Mono/stereo, Maximum 500 ms, 44.1/48/96 kHz, 16 bits linear/24 bits linear/32-bit floating point
Preset IR cabinet
- - 154
User IR cabinet slot
- - 128
Normal input level
- - INPUT, RETURN: -10 dBu
- - AUX IN: -20 dBu
Maximum input level
- - INPUT, RETURN: +7dBu
- - AUX IN: 0 dBu
Input impedance
- - INPUT, RETURN: 1 M ohm
- - AUX IN: 27 k ohms
Normal output level
- - OUTPUT (A/MONO, B), SEND, PHONES: -10 dBu
Maximum output level
- - OUTPUT (A/MONO, B), SEND, PHONES: +7dBu
Output impedance
- - OUTPUT (A/MONO, B), SEND: 1k ohm
- - PHONES: 44 ohms
Recommended load impedance
- - OUTPUT (A/MONO, B), SEND: 10 k ohms or greater
- - PHONES: 44 ohms or greater

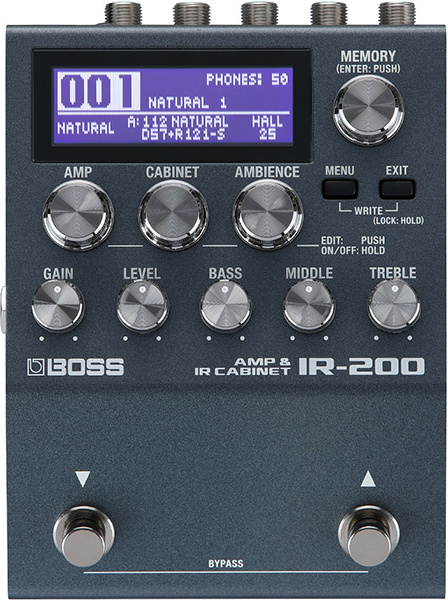

Controls
- - DOWN switch, UP switch
- - MENU button, EXIT button
- - MEMORY knob, AMP knob, CABINET knob, AMBIENCE knob
- - GAIN knob, LEVEL knob, BASS knob, MIDDLE knob, TREBLE knob
Display
- - Graphic LCD (132 x 32 dots, backlit LCD)

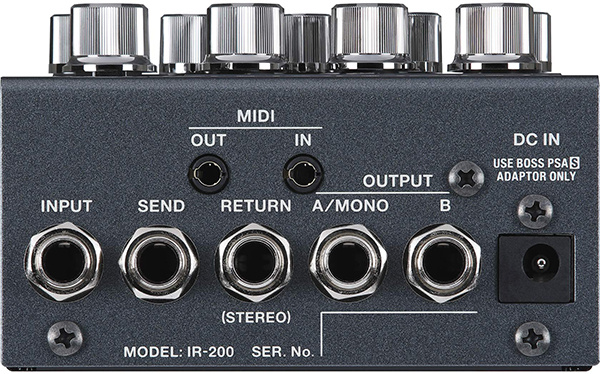

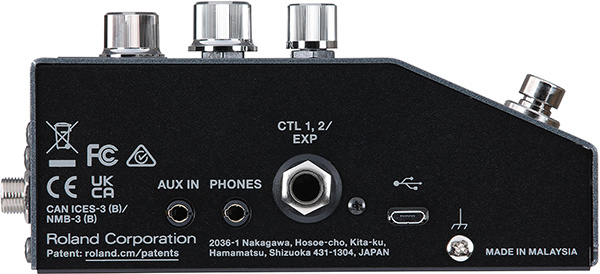

Connectors
- - INPUT, SEND, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
- - RETURN jack: 1/4-inch TRS phone type
- - AUX IN: Stereo miniature phone type
- - CTL 1, 2/EXP jack: 1/4-inch TRS phone type
- - MIDI (IN, OUT) connectors: Stereo miniature phone type
- - USB COMPUTER port: USB Micro-B type
- - DC IN jack
Power supply
- - AC Adaptor
Current draw
- - 335 mA
Accessories
- - AC adaptor
- - Owner's Manual
- - Leaflet "USING THE UNIT SAFELY"
- - Rubber foot x 4
Options (sold separately)
- - Footswitch: FS-5U
- - Dual footswitch: : FS-6, FS-7
- - Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
- - TRS/MIDI cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
SIZE AND WEIGHT
- - Width: 101mm l 4 inches
- - Depth: 138mm l 5 7/16 inches
- - Height: 63mm l 2 1/2 inches
- - Height (Including rubber feet): 65mm l 2 9/16 inches
- - Weight (Excluding AC Adaptor): 660 g l 1 lb 8 oz
