BossKatana MIni 7 Watt Guitar Amplifier

SPECIFICATIONS

Rated Power Output

• - 7 W

Nominal Input Level

• - INPUT: -10 dBu (1 M ohm)
• - AUX IN: -10 dBu (20 k ohm)

Speaker

• - 10 cm (4 inches)

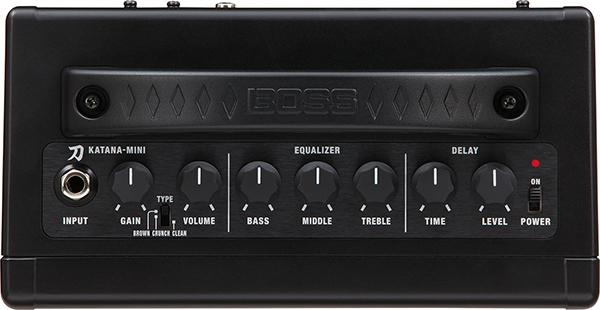

Controls

• - POWER switch
• - TYPE switch

GAIN knob

• - VOLUME knob


• - [EQUALIZER]
• - BASS knob
• - MIDDLE knob
• - TREBLE knob


• - [DELAY]
• - TIME knob
• - LEVEL knob

Indicators

• - POWER

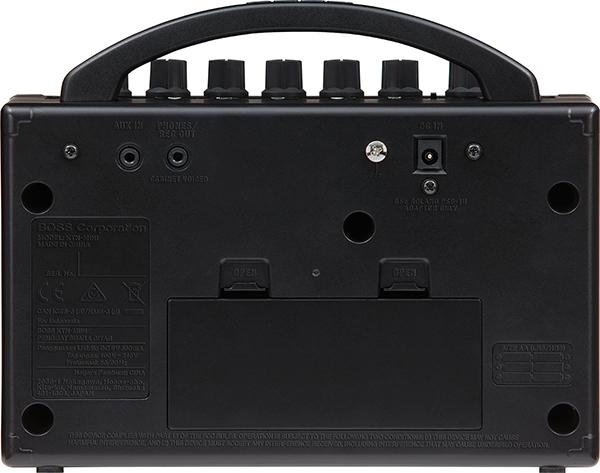

Connectors

• - INPUT jack: 1/4-inch phone type
• - AUX IN jack: Stereo miniature phone type
• - PHONES/REC OUT jack: Stereo miniature phone type
• - DC IN jack

Power Supply

• - Alkaline battery (AA, LR6) x 6
• - Rechargeable Ni-MH battery (AA, HR6) x 6 or
• - AC adaptor (sold separately)

Current Draw

• - 350 mA

Expected battery life under continuous use

• - Alkaline battery: Approximately 7 hours
• - Rechargeable Ni-MH battery: Approximately 9 hours (When using batteries having a capacity of 2500 mAh.)
  * This can vary depending on the capacity of the batteries and the conditions of use.

Accessories

• - Owner's manual
• - Alkaline battery (AA, LR6) x 6

Option (sold separately)

• - AC adaptor (PSB series)

SIZE AND WEIGHT

• - Width230 mm l 9-1/16 inches
• - Depth116 mm l 4-5/8 inches
• - Height181 mm l 7-1/8 inches
• - Weight (including battery)1.2 kg l 2 lbs 11 oz
