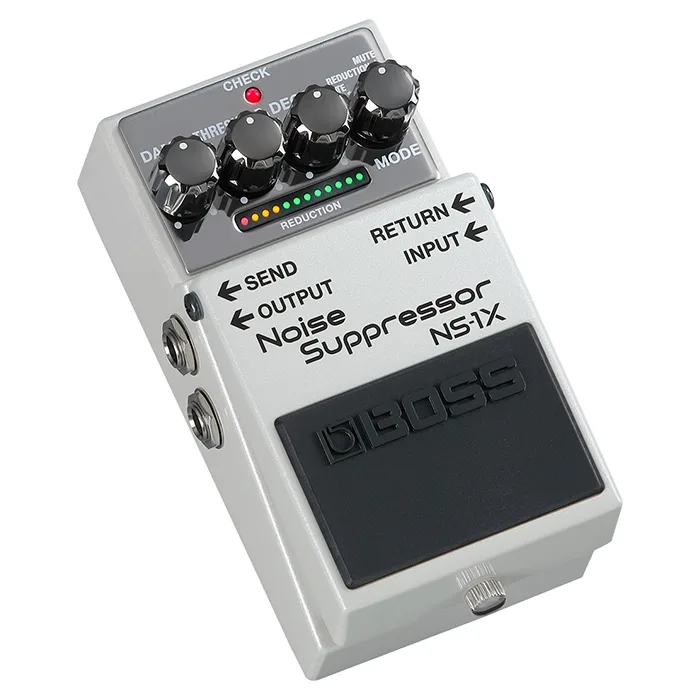

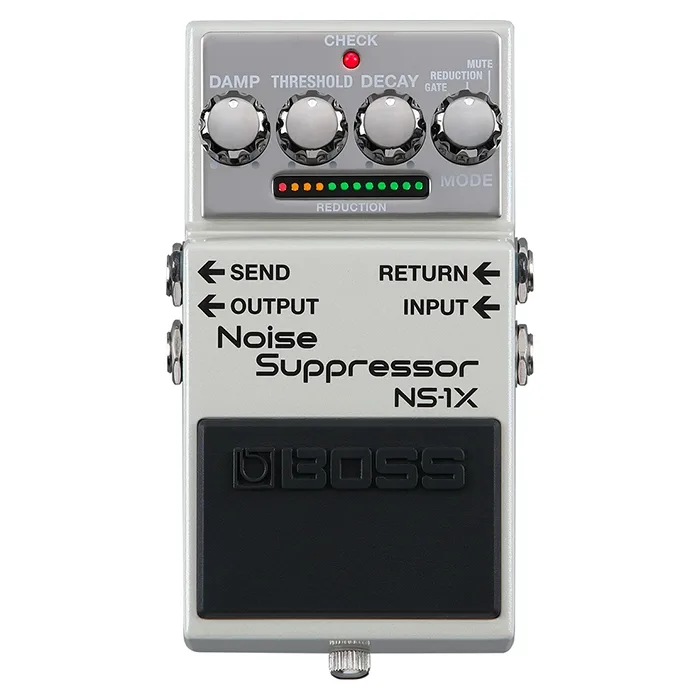

BossNS-1X Noise Suppressor Pedal
Show all:
Noise Gate,Accessories
Description
Read moreRead less
The Boss NS-1X Noise Suppressor Pedal uses its technology to eliminate noise without affecting your original musical tone or playing integrity. This device serves guitarists and bassists and includes Reduction Mode for silent rigs and Gate Mode for quick responses when using high-gain sounds. The NS-1X operates equally well throughout practice, performance, and recording situations to deliver professional sound quality without any impaired sound quality. Professional musicians should have this pedal since it delivers exceptional performance and straightforward functionality in addition to superior precision.
SPECIFICATIONS
| Sampling Frequency | 48 kHz |
| AD Conversion | 24 bits + AF method AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD converter. |
| DA Conversion | 32 bits |
| Processing | 32-bit floating point |
| Modes | 3 modes GATE REDUCTION MUTE |
| Nominal Input Level | INPUT, RETURN: -20 dBu |
| Maximum Input Level | INPUT, RETURN: +7 dBu |
| Input Impedance | INPUT, RETURN: 1 M ohm |
| Nominal Output Level | OUTPUT, SEND: -20 dBu |
| Maximum Output Level | OUTPUT, SEND: +7 dBu |
| Output Impedance | OUTPUT, SEND: 1 k ohm |
| Recommended Load Impedance | OUTPUT, SEND: 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | MODE knob DECAY knob THRESHOLD knob DAMP knob Pedal switch |
| Indicator | CHECK indicator (Serves also as battery check indicator) REDUCTION indicator |

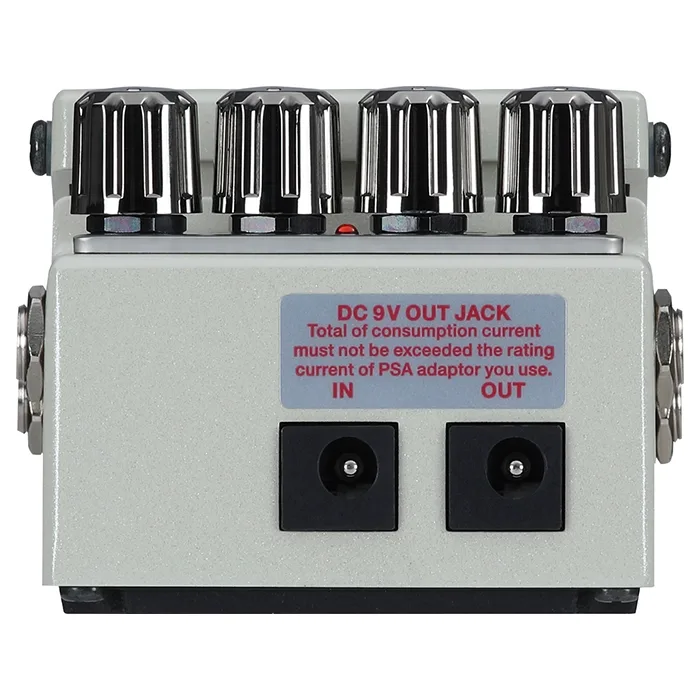

| Connectors | INPUT jack: 1/4-inch phone type RETURN jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type SEND jack: 1/4-inch phone type DC IN jack DC OUT jack |
| Power Supply | Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately) |
| Current Draw | 60 mA |
| Expected battery life under continuous use | Alkaline: Approx. 6.5 hours * These figures will vary depending on the actual conditions of use. |
| Accessories | Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”) Dry battery (9 V, 6LR61) |
| Options (sold separately) | AC adaptor: PSA series |
| Size and Weight | |
| Width | 73 mm | 2-7/8" |
| Depth | 129 mm | 5-1/8" |
| Height | 59 mm | 2-3/8" |
| Weight (including battery) | 460 g | 1 lb 0.3 oz |
