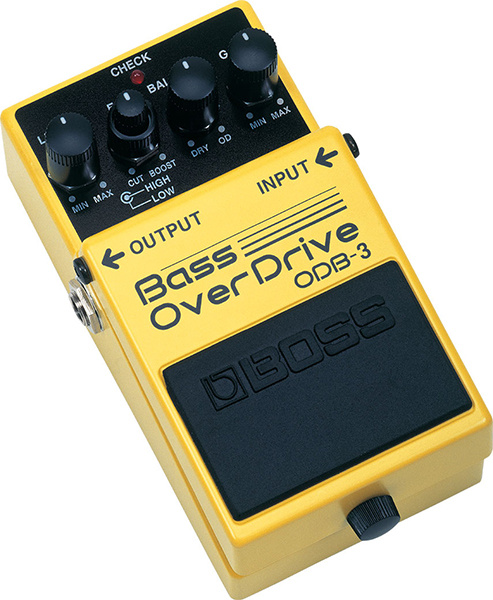

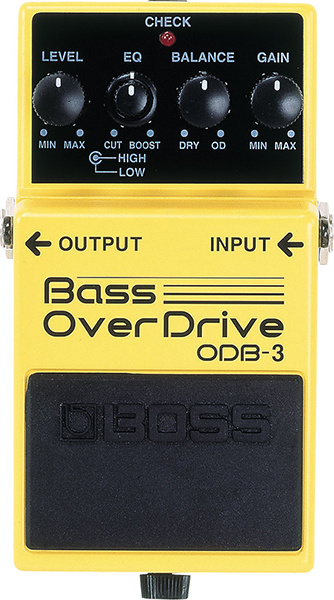

BossOBD-3 Bass Overdrive

SPECIFICATIONS

Nominal Input Level

• - 20 dBu

Input Impedance

• - 1 M ohm

Nominal Output Level

• -20 dBu

Output Impedance

• - 1 k ohm

Recommended Load Impedance

• - 10 k ohms or greater

Bypass

• - Buffered bypass

Controls

• - GAIN knob
• - BALANCE knob
• - EQ HIGH/LOW knob
• - LEVEL knob
• - Pedal switch

Indicator

• - CHECK indicator (Used for indication of check battery)

Connectors

• - INPUT jack: 1/4-inch phone type
• - OUTPUT jack: 1/4-inch phone type
• - DC IN jack

Power Supply

• - Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
• - AC adaptor (PSA series: sold separately)

Current Draw

• - 20 mA

Expected battery life under continuous use

• - Carbon: Approx. 24.5 hours
• - Alkaline: Approx. 40.5 hours
  *These figures will vary depending on the actual conditions of use.

Accessories

• - Owner's manual
• - Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• - Carbon-zinc battery (9 V, 6F22)

Options (sold separately)

• - AC adaptor: PSA series

SIZE AND WEIGHT

• - Width: 73 mm l 2-7/8 inches
• - Depth: 129 mm l 5-1/8 inches
• - Height: 59 mm l 2-3/8 inches
• - Weight (including battery): 390 g l 14 oz
