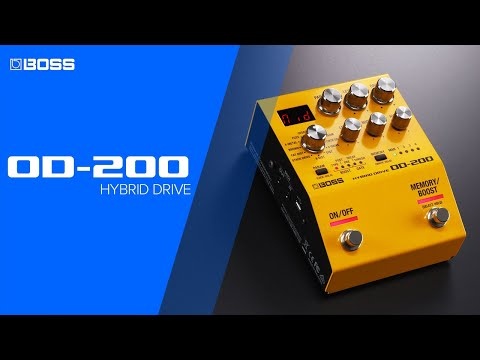

BossOD-200 Hybrid Overdrive
The OD-200 Hybrid Drive, which combines decades of BOSS tone experience with cutting-edge technologies, provides the next-level sound, feel, and flexibility to overdrive and distortion. This dream pedal, powered by hybrid analog/digital circuitry, offers 12 primary modes, 15 boost kinds, series/parallel gain paths, and more to create any drive tone you can think. Even a cutting-edge gate is built in, which is perfect for reducing noise and tightening up high-gain drive tones.
Features
- - Advanced hybrid design with analog and digital circuitry provides a huge range of drive tones from classic to modern
- - Twelve primary drive modes plus 15 boost types with independent pre/post gain controls
- - Selectable series or parallel boost structures for unlimited gain shaping
- - Advanced gate section for eliminating noise and tightening high-gain tones
- - Class-leading sound quality with 32-bit AD/DA, 32-bit floating-point processing, and 96 kHz sampling rate
- - Access 128 user setups from the panel or MIDI program change
- - Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button
- - Panel Lock function disables controls to prevent unwanted changes
- - Customizable multi-function footswitches for bypass, boost, memory selection, and more
- - Support for expanded control via external footswitches, an expression pedal, or MIDI
- - Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
- - Micro USB jack for firmware updates
- - Runs on a PSA-series AC adaptor or three AA-size batteries
SPECIFICATIONS
Sampling Frequency
- - 96 kHz
AD/DA Conversion
- - 32 bits
Processing
- - 32-bit floating-point
Drive Circuit
- - Analog + Digital
Modes
- - 12 modes
- - OVERDRIVE, BLUES, SCREAM, CNTR OD, X-DRIVE, DIST, X-DIST, STACK DRIVE, FAT DIST, BROWN, X-METAL, FUZZ
Memory
- - 127 + Manual
Nominal Input Level
- - INPUT: -10 dBu
Maximum Input Level
- - INPUT: +7 dBu
Input Impedance
- - INPUT: 1 M ohm
Nominal Output Level
- - OUTPUT: -10 dBu
Maximum Output Level
- - OUTPUT: +7 dBu (Load Impedance: 220 k ohms or greater)
Output Impedance
- - OUTPUT: 1 k ohms
Recommended Load Impedance
- - OUTPUT: 10 k ohms or greater
Bypass
- - Buffered bypass
Controls
- - ON/OFF switch, MEMORY/BOOST switch
- - MODE knob, DRIVE knob, LEVEL knob, PARAM knob, LOW knob, MIDDLE knob, HIGH knob
- - PARAM button, MEMORY button
Display
- - 7 segments, 3 characters (LED)
Indicator
- - PARAM indicator, MEMORY (MAN, 1--4) indicators
Connectors

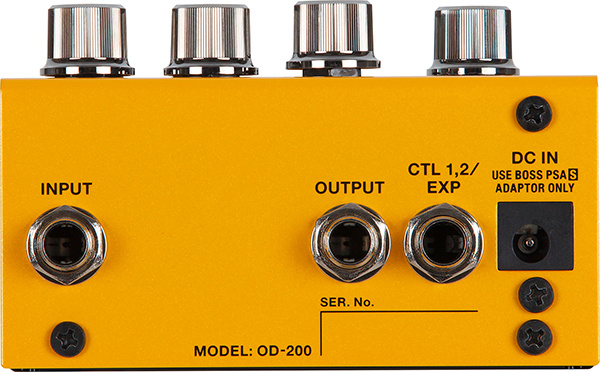

- - INPUT jack, OUTPUT jack: 1/4-inch phone type
- - CTL 1, 2/EXP jack: 1/4-inch TRS phone type

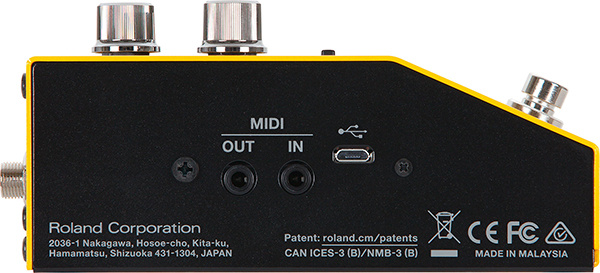

- - MIDI (IN, OUT) jacks: Stereo miniature phone type
- - DC IN jack
- - USB port: USB micro B-type (program update only)
Power Supply
- - Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw
- - 220 mA
Expected Battery Life Under Continuous Use
- Alkaline: Approx. 6 Hours
* These figures will vary depending on the actual conditions of use.
Accessories
- - Owner's Manual
- - Leaflet "USING THE UNIT SAFELY"
- - Alkaline battery (AA, LR6) x 3
- - Rubber foot x 4
Options (sold separately)
- - AC adaptor: PSA-S series
- - Footswitch: FS-5U
- - Dual footswitch: FS-6, FS-7
- - Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
- - MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
SIZE AND WEIGHT
- - Width: 101 mm l 4 inches
- - Depth: 138 mm l 5-7/16 inches
- - Height: 63 mm l 2-1/2 inches
- - Height (including rubber foot): 65 mm l 2-9/16 inches
- - Weight: 600 g l 1 lb 6 oz
- - Weight (including battery): 670 g l 1 lb 8 oz
