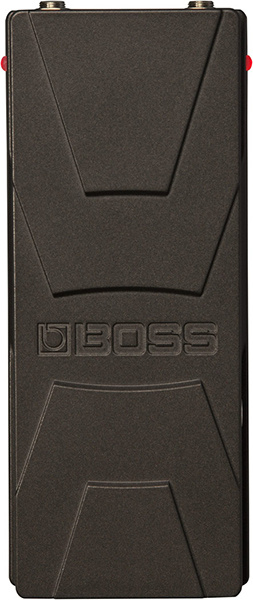

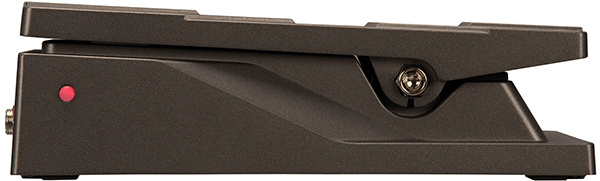

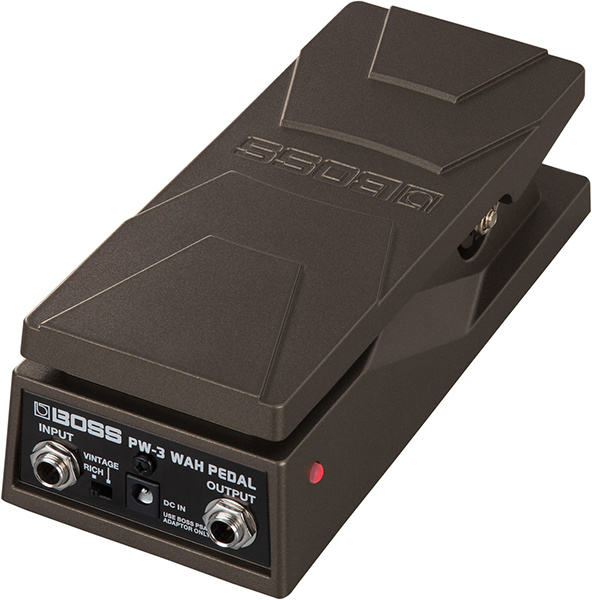

BossPW-3 Wah Pedal
Show all:
Wah,Accessories
DescriptionRead moreRead less
The compact, sturdy PW-3 offers great wah tones while saving valuable pedalboard space with its rugged build. The PW-3's Rich mode, recently designed by BOSS, offers a distinctively full wah voice that keeps the low-end depth and fullness lost with conventional wah circuits.
Features
- - Unique Rich mode retains low-end fullness, eliminating the thin tone of typical wah designs
- - Vintage mode for the familiar classic wah sound
- - Low-noise operation and pro playing feel with smooth pivot action and adjustable tension
- - Space-saving design fits easily on crowded pedalboards
- - Rugged, die-cast aluminum chassis provides a rock-solid feel and gig-ready durability
- - On/off LEDS on each side of the pedal make it easy to see the status at a glance
SPECIFICATIONS
Connectors
- - INPUT jack: 1/4-inch phone type
- - OUTPUT jack: 1/4-inch phone type
- - DC IN jack
Indicators
- - Dual indicator
Controls
- - Pedal
- - Tone switch
Power Supply
- - Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
- - AC adaptor (PSA series: sold separately)
Current Draw
- - 25 mA
Accessories
- - Owner's Manual
- - Alkaline battery (9 V, 6LR61)
- - Sheets (for adjusting the force required to turn the wah on/off)
SIZE AND WEIGHT
- - Width: 80 mm l 3-3/16 inches
- - Depth: 192 mm l 7-9/16 inches
- - Height: 58 mm l 2-5/16 inches
- - Weight: 800 g l 1 lb. 13 oz
