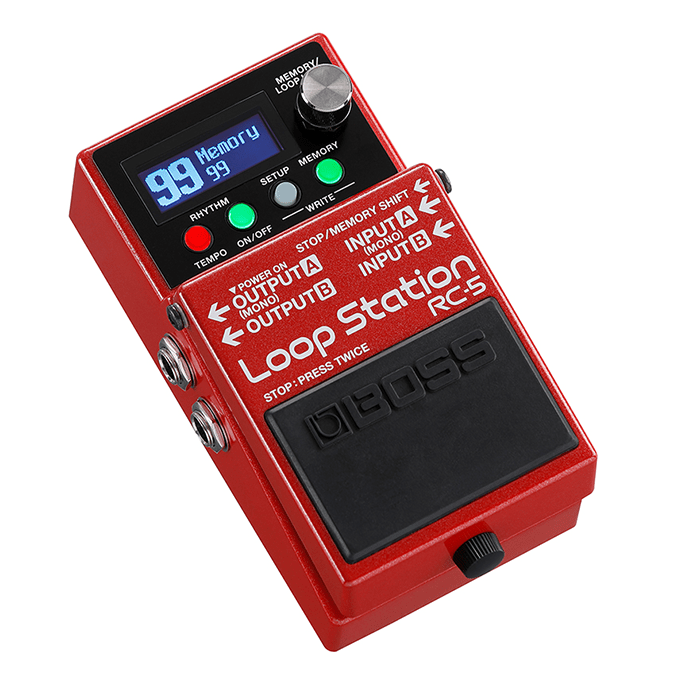

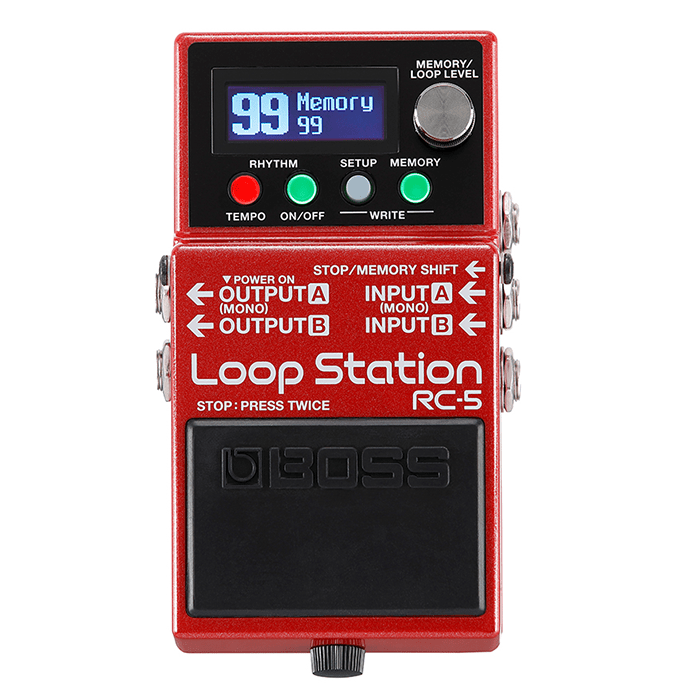

BossRC-5 Loop Station
Show all:
Guitar Pedals,Accessories
DescriptionRead moreRead less
The RC-5 will provide your pedalboard with the widest possible looping range when you step up to it. The compact RC-5 puts a deep well of musical power at your fingertips with over 50 rhythms, 13 hours of stereo recording, 99 phrase memories, and more. You can record sound with premium 32-bit quality, navigate parameters and check the status of loops with the backlit LCD, and tap into expanded operation via the control jack and TRS MIDI I/O.
Features
- - BOSS looping features in a compact footprint
- - Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
- - Stereo looper engine with 13 hours of recording time
- - LCD with multi-color backlight for viewing loop status and editing parameters
- - Reverse function for infusing loops with interesting textures
- - Seven different drum kits and 57 preset rhythms with A/B variations
- - Support for expanded control via external footswitches, an expression pedal, or MIDI
- - Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
- - Onboard storage for 99 phrase memories
- - Back up and load WAV loops via USB
SPECIFICATIONS
Sampling Frequency
- 44.1 kHz
AD/DA Conversion
- 32 bits
Processing
- 32-bit floating point
Recording/Playback
- Number of Track: 1
- Data Format: WAV (44.1 kHz, 32-bit float, stereo)
- Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
Rhythm Type
- 57 Patterns x 2 Variations
Rhythm Kit
- 7 types
Effect
- Reverb (only for rhythm part)
Memory
- 99
Nominal Input Level
- INPUT A/MONO, B: -20 dBu
Input Impedance
- INPUT A/MONO, B: 1 M ohm
Nominal Output Level
- OUTPUT A/MONO, B:-20 dBu
Output Impedance
- OUTPUT A/MONO, B: 1 k ohm
Recommended Load Impedance
- OUTPUT A/MONO, B: 10 k ohms or greater
Bypass
- Buffered bypass
Controls
- MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch
Display
- Graphic LCD (96 x 32 dots, RGB backlit LCD)

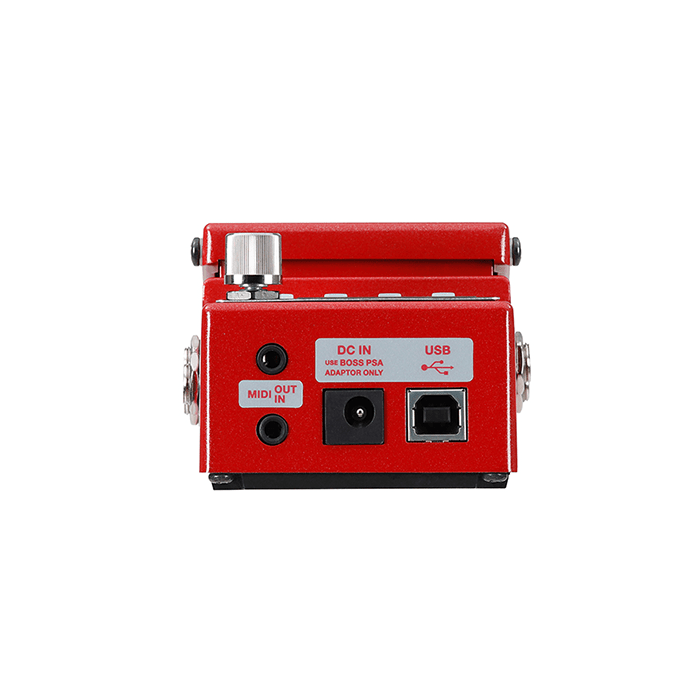

Connectors
- INPUT A/MONO, B jacks: 1/4-inch phone type
- OUTPUT A/MONO, B jacks: 1/4-inch phone type
- STOP/MEMORY jack: 1/4-inch TRS phone type
- USB port: USB B type
- MIDI (IN, OUT) jacks: stereo miniature type
- DC IN jack
Power Supply
- Alkaline battery (9 V, 6LR61 or 6LF22)
Alkaline battery (9 V, 6LR61 or 6LF22)
Current Draw
- 170 mA
Expected battery life under continuous use
- Alkaline: Approx. 2 hours
*These figures will vary depending on the actual conditions of use.
Accessories
- Owner's manual
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Alkaline battery (9 V, 6LR61 or 6LF22)
Options (sold separately)
- AC adaptor: PSA-S series
- Footswitch: FS-5U
- Dual Footswitch: FS-6, FS-7
- Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
- TRS/MIDI connecting cable: BMIDI-5-35
SIZE AND WEIGHT
- Width: 73 mm (2-7/8 inches)
- Depth: 129 mm (5-1/8 inches)
- Height: 56 mm (2-1/4 inches)
- Weight (including battery): 450 g (1 lb)
