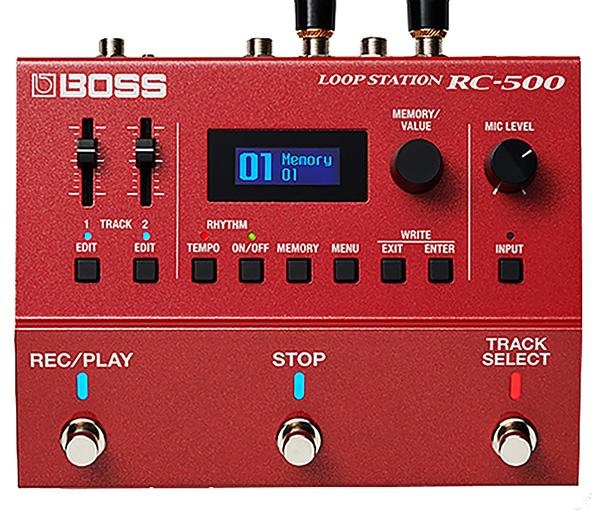

BossRC-500 Loop Station
For guitarists, singer/songwriters, multi-instrumentalists, and anyone else who wants to advance their looping, the RC-500 is a crucial ally. With two loop tracks, mic and stereo instrument inputs, rhythms, and motivational Loop FX—all supported by high-end 32-bit audio quality—you can create compositions in real time. Store loops in the onboard storage, then experiment with expanded operation using MIDI and external controls. The RC-500 equips serious creators with the resources they need to develop fresh concepts and present powerful performances that will leave audiences wanting more. It is packed with next-generation Loop Station features.
Features
- - Advanced two-track looper with onboard mixing and deep control options
- - Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
- - Stereo looper engine with 13 hours of recording time
- - LCD with multi-color backlight for viewing loop status and editing parameters
- -Mono/stereo inputs for easy pedalboard integration, plus independent XLR mic input with phantom power
- - Reverse function and Loop FX (repeat, scatter, shift, and vinyl flick) for dynamic and engaging loop performances
- - 16 different drum kits and 57 preset rhythms with A/B variations
- - Support for expanded control via external footswitches, an expression pedal, or MIDI
- - Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
- - Onboard storage for 99 phrase memories
- - Back up and load WAV loops via USB
- - Runs on four AA batteries or optional AC adaptor
SPECIFICATIONS
Sampling Frequency
- 44.1 kHz
AD/DA Conversion
- 32 bits
Processing
- 32-bit floating point
Recording/Playback
- Number of Track: 2
- Data Format: WAV (44.1 kHz, 32-bit float, stereo)
- Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
Rhythm Type
- 57 Patterns x 2 Variations
Rhythm Kit
- 16 types
Effect
- LOOP FX (only for loop tracks)
- Type: BEAT REPEAT, BEAT SHIFT, BEAT SCATTER, VINYL FLICK
- Reverb (only for rhythm part)
Memory
- 99
Nominal Input Level
- MIC IN:-40 dBu (variable)
- INST IN A/MONO､B: -10 dBu
Maximum Input Level
- MIC IN:+8 dBu
- INST IN A/MONO, B: +8 dBu
Input Impedance
- MIC IN: 4 k ohms
- INST IN A/MONO, B: 1 M ohm
Nominal Output Level
- OUTPUT A/MONO, B: -10 dBu
Maximum Output Level
- OUTPUT A/MONO, B: +8 dBu
Output Impedance
- OUTPUT A/MONO, B: 1 k ohm
Recommended Load Impedance
- OUTPUT A/MONO, B: 10 k ohms or greater
Bypass
- Buffered bypass
Controls
- REC/PLAY switch, STOP switch, TRACK SELECT switch, MEMORY/VALUE knob, MIC LEVEL knob, TRACK 1 slider, TRACK 2 slider, TRACK 1 EDIT button, TRACK 2 EDIT button, RHYTHM TEMPO button, RHYTHM ON/OFF button, MEMORY button, MENU button, EXIT button, ENTER button, INPUT button
Display
- Graphic LCD (96 x 32 dots, RGB backlit LCD)

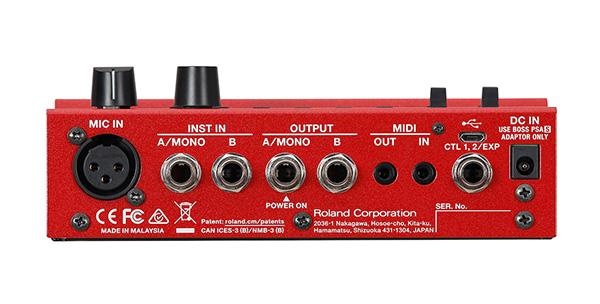

Connectors
- INST IN A/MONO, B jacks: 1/4-inch phone type
- MIC IN jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max
- OUTPUT A/MONO, B jacks: 1/4-inch phone type
- CTL 1,2/EXP jack: 1/4-inch TRS phone type
- USB port: USB micro B type
- MIDI (IN, OUT) jacks: stereo miniature type
- DC IN jack
Power Supply
- Alkaline battery (AA, LR6) x 4
- AC adaptor (PSA-S series: sold separately)
Current Draw
- 330 mA (with phantom power)
- 240 mA (without phantom power)
Expected battery life under continuous use
- Alkaline: Approx. 3.5 hours (without phantom power)
- Approx. 2 hours (with phantom power)
*These figures will vary depending on the actual conditions of use.
Accessories
- Owner's manual
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Alkaline battery (AA, LR6) x 4
- Rubber foot x 4
Options (sold separately)
- AC adaptor: PSA-S series
- Footswitch: FS-5U
- Dual Footswitch: FS-6, FS-7
- Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
- TRS/MIDI connecting cable: BMIDI-5-35
SIZE AND WEIGHT
- Width: 170 mm (6-3/4 inches)
- Depth: 138 mm (5-7/16 inches)
- Height (including rubber foot): 62 mm (2-1/2 inches)
- Weight (including battery): 950 g (2.1 lb)
