Description
Read more

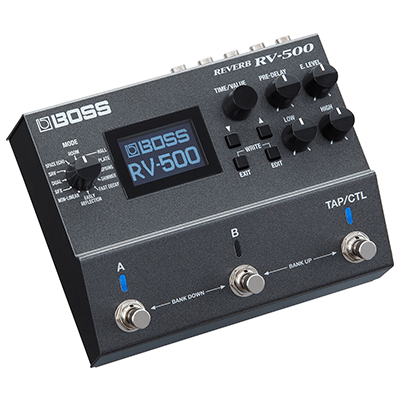

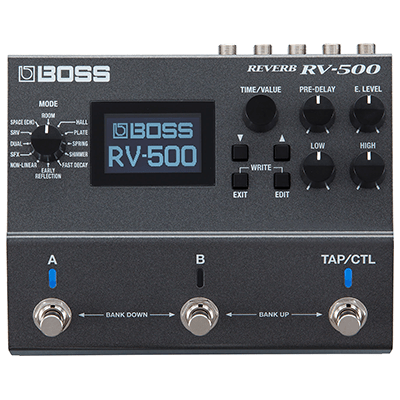

The RV-500 BOSS's most powerful and versatile reverb processor, featuring 32-bit AD/DA, 32-bit/96 kHz processing, and extensive programmability. With 12 modes and 21 reverb algorithms, it offers a wide range of reverb textures, from subtle ambience to immersive soundscapes. Its high-powered DSP lets you use a digital delay with any reverb patch and even run two reverb patches simultaneously. It also includes MIDI I/O, external footswitch/expression support, and USB connectivity for the free RV-500 Editor/Librarian software, making it the most advanced reverb pedal available.
FEATURES
- Studio-level sound with first-in-class 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
- 12 modes with 21 reverb types, all with deep editing parameters
- Includes a wide range of reverb types from standard to advanced, plus Roland classics such as the SRV-2000 Reverb and RE-201 Space Echo
- A/B Simul mode allows you to use two reverb patches at once
- Selectable carryover function allows reverb tails to continue with patch change or effect bypass
- Powerful DSP provides independent digital delay with modulation along with each reverb patch
- Graphic LCD and intensive real-time control options
- 297 onboard patch memories and hands-on controls
- Selectable buffered-bypass or true-bypass operation
- MIDI I/O for interfacing with MIDI control devices
- USB-MIDI for connecting to the RV-500 Editor/Librarian or a DAW
- Runs on four AA-size batteries or PSA-series AC adapter
SPECIFICATIONS
| Sampling Frequency | 96 kHz |
| AD/DA Conversion | 32 bits |
| Processing | 32-bit floating point |
| Modes | 12 modes ROOM HALL PLATE SPRING SHIMMER FAST DECAY EARLY REFLECTION NON-LINEAR SFX DUAL SRV SPACE ECHO |
| Memory | 198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C]) |
| Nominal Input Level | INPUT A/MONO, B: -10 dBu |
| Maximum Input Level | INPUT A/MONO, B: +8 dBu |
| Input Impedance | INPUT A/MONO, B: 1 M ohm |
| Nominal Output Level | OUTPUT A/MONO, B: -10 dBu |
| Maximum Output Level | OUTPUT A/MONO, B: +8 dBu |
| Output Impedance | OUTPUT A/MONO, B: 2 k ohms |
| Recommended Load Impedance | OUTPUT A/MONO, B: 20 k ohms or greater |
| Bypass | Buffered bypass or True bypass (with relays) |
| Controls | A switch, B switch, TAP/CTL switch DOWN button, UP button, EXIT button, EDIT button MODE knob, TIME/VALUE knob, PRE-DELAY knob, E.LEVEL knob, LOW knob, HIGH knob |
| Display | Graphic LCD (128 x 64 dots, backlit LCD) |

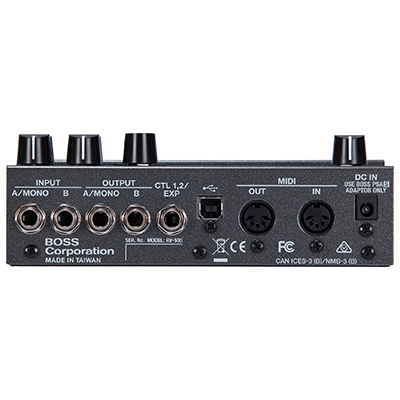

| Connectors | INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type CTL 1,2/EXP jack: 1/4-inch TRS phone type USB COMPUTER port: USB type B MIDI (IN, OUT) connectors DC IN jack |
| Power Supply | Alkaline battery (AA, LR6) x 4, AC adaptor (sold separately) |
| Current Draw | 225 mA |
| Expected battery life under continuous | Alkaline: Approx. 4.5 hours * These figures will vary depending on the actual conditions of use. |
| Accessories | Owner's manual Leaflet "USING THE UNIT SAFELY" Alkaline battery (AA, LR6) x 4 |
| Options (sold separately) | AC adaptor: PSA-S series Footswitch: FS-5U, FS-5L Dual Footswitch: FS-6, FS-7 Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5 |
| Size and Weight | |
| Width | 170 mm | 6-3/4 inches |
| Depth | 138 mm | 5-7/16 inches |
| Height | 62 mm | 2-1/2 inches |
| Weight (Including Battery) | 1.0 kg | 2 lbs. 4 oz. |
