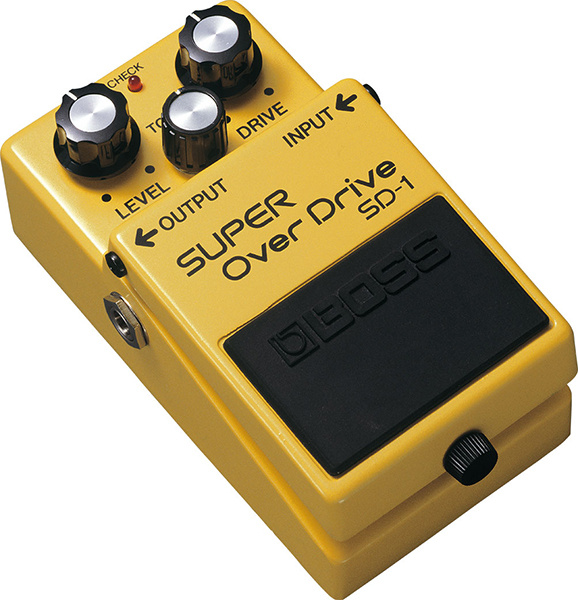

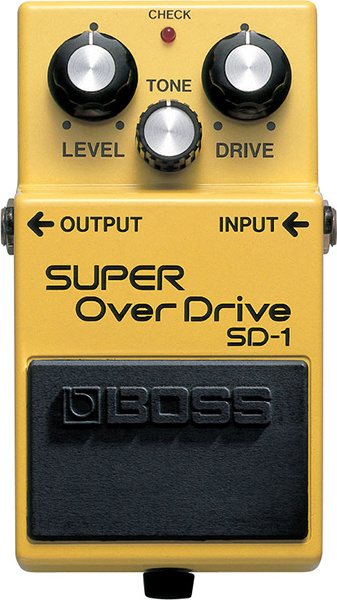

BossSD-1 Super Overdrive Pedal
Show all:
Overdrive,Guitar Pedals
Description
Generations of musicians in every musical genre have relied on the workhorse SD-1 Super Overdrive as their primary gain pedal. The SD-1 produces rich, smooth, and incredibly musical overdrive tones that continue to excite guitarists all over the world. It is built around the ground-breaking asymmetrical clipping circuit from the OD-1 Overdrive, one of the three original BOSS small pedals from 1977.
Features
- - Genre-defining BOSS overdrive sound
- - Unique asymmetrical clipping circuit produces tube-like overdrive characteristics
- - Mild-to-moderate drive tones with a focused midrange and tight low end
- - Ideal for use with clean and slightly driven amps
- - Also works great for bringing tightness and definition to high-gain amp tones
- - Stacks well with boost, overdrive, and distortion pedals
- - BOSS five-year warranty
SPECIFICATIONS
Nominal Input Level
- -20 dBu
Input Impedance
- 1 M ohm
Nominal Output Level
- -20 dBu
Output Impedance
- - 1 k ohm
Recommended Load Impedance
- - 10 k ohms or greater
Bypass
- - Buffered bypass
Controls
- - DRIVE knob
- - TONE knob
- - LEVEL knob
- - Pedal switch
Indicator
- - CHECK indicator (Used for indication of check battery)
Connectors
- - INPUT jack: 1/4-inch phone type
- - OUTPUT jack: 1/4-inch phone type
- - DC IN jack
Power Supply
- - Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
- - AC adaptor (PSA series: sold separately)
Current Draw
- - 10 mA
Expected battery life under continuous use
- - Carbon: Approx. 60 hours
- - Alkaline: Approx. 90 hours
*These figures will vary depending on the actual conditions of use.
Accessories
- - Owner's manual
- - Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- - Carbon-zinc battery (9 V, 6F22)
Options (sold separately)
- - AC adaptor: PSA series
SIZE AND WEIGHT
- Width: 73 mm l 2-7/8 inches
- Depth: 129 mm l 5-1/8 inches
- Height: 59 mm l 2-3/8 inches
- Weight (including battery): 360 g l 13 oz
