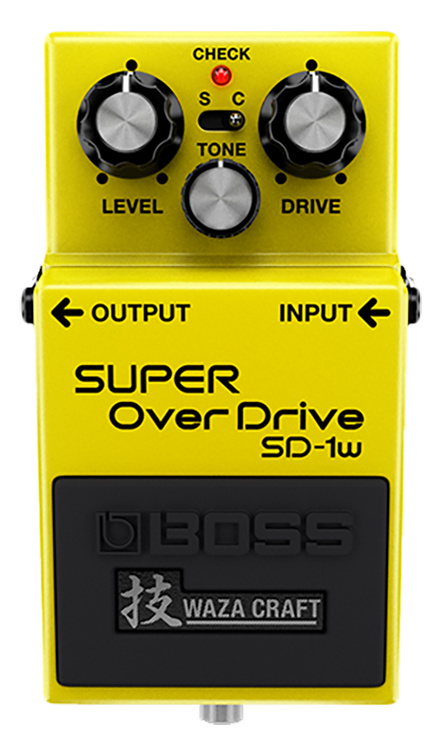

BossSD1W Super Overdrive Waza Craft Special Edition
Show all:
Overdrive,Guitar Pedals
Description
Read moreRead less
The Waza Craft SD-1W Super Overdrive, which was ardently created by the top engineers at BOSS in Japan, offers a premium stomp experience that lovers of individualized pedal tone will adore. The SD-1W hot rods the renowned BOSS overdrive with all-discrete analog circuitry since it was designed with an ear for very excellent sound. While Custom mode gives a wider tonal range and gain, Standard mode preserves the distinctive SD-1 sound.
Features
- - Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
- - Premium sound based on the legendary SD-1 Super Overdrive
- - Newly revised, the all-analog discrete amplifier circuit
- - Standard and Custom sound modes
- - Highly responsive to picking dynamics and volume changes
- - BOSS five-year warranty
SPECIFICATIONS
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Controls | Pedal switch |
| Mode switch | |
| LEVEL knob | |
| TONE knob | |
| DRIVE knob | |
| Indicator | CHECK indicator (Serves also as battery check indicator) |
| Connectors | INPUT jack OUTPUT jack DC IN jack |
| Power Supply | Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22) AC adaptor (sold separately) |
| Current Draw | 15 mA |
| Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.) | Carbon: Approx. 25 hours Alkaline: Approx. 42 hours |
| Accessories | Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information") Carbon-zinc battery (9 V, 6F22) |
| Option (sold separately) | AC adaptor (PSA series) |
| SIZE AND WEIGHT | |
| Width | 73 mm | 2-7/8 inches |
| Depth | 129 mm | 5-1/8 inches |
| Height | 59 mm | 2-3/8 inches |
| Weight | 430 g | 1 lb |
