BossSpace Echo Pedal With Presets
Show all:
Guitar Pedals,Accessories
Description
Read moreRead less

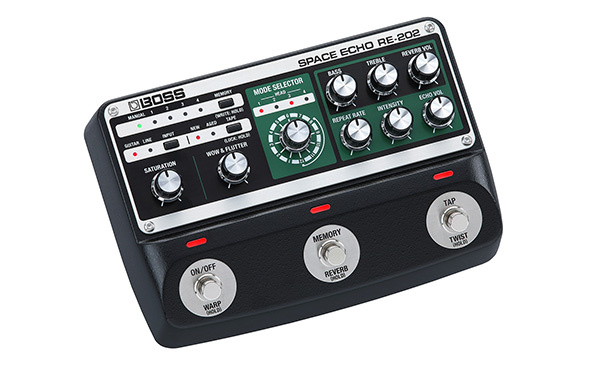

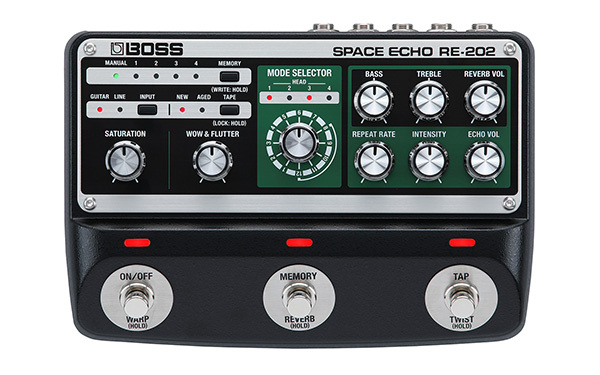

The RE-202 perfectly reproduces the Space Echo's characteristic sound and behavior. Without the need for routine hardware upkeep and tape replacement, the RE-202 gives the RE-201's entire retro atmosphere. The famous 12-position mode selector is present, along with all the other essential controls from the original.
Features
- - Authentically recreates the sound and behavior of the legendary Roland RE-201 Space Echo
- - Classic multi-head tape echo sound with an expanded delay time
- - Original three-head configuration plus additional tape head for 12 unique echo combinations
- - Independent stereo reverb section with original spring reverb type plus hall, plate, room, and ambiance
- - Saturation control for adding magnetic tape compression and preamp coloration
- - Wow & Flutter control for introducing varying levels of natural tape modulation
- - Choose between new and aged tape conditions
- - Selectable input modes for optimum performance with instruments and line-level gear
- - Warp and Twist effects with footswitch control
- - Select between the unprocessed analog dry signal or the modeled sound of the original Space Echo preamp
- - Four onboard memories plus the current panel settings
- - Save and select 127 memories via external MIDI program change
- - Tap tempo and carryover functions
- - True stereo input and output
- - Expandable control via external footswitches, an expression pedal, or MIDI
SPECIFICATIONS
Sampling Frequency | 48 kHz |
AD Conversion | 24 bits + AF method |
 | AF method (Adaptive Focus method) This is a proprietary method from Roland & Boss |
 | that vastly improves the signal-to-noise (SN) ratio of the AD converted |
DA Conversion | 32 bits |
Processing | 32-bit floating point |
Modes | 12 modes |
Memory | 127 + Manual |
Nominal Input Level | INPUT A/MONO, INPUT B: -10 dBu |
Maximum Input Level | INPUT A/MONO, INPUT B: +7 dBu |
Input Impedance | INPUT A/MONO, INPUT B: 1 M ohm |
Nominal Output Level | OUTPUT A/MONO, OUTPUT B: -10 dBu |
Maximum Output Level | OUTPUT A/MONO, OUTPUT B: +7 dBu |
Output Impedance | OUTPUT A/MONO, OUTPUT B: 1 k ohm |
Recommended Load Impedance | OUTPUT A/MONO, OUTPUT B: 10 k ohms or greater |
Bypass | Buffered bypass |
Controls | ON/OFF switch |
 | MEMORY switch |
 | TAP switch |
 | SATURATION knob |
 | WOW & FLUTTER knob |
 | MODE SELECTOR knob |
 | BASS knob |
 | TREBLE knob |
 | REVERB VOL knob |
 | REPEAT RATE knob |
 | INTENSITY knob |
 | ECHO VOL knob |
 | MEMORY button |
 | INPUT button |
 | TAPE button |
Connectors | INPUT A/MONO jack, INTPUT B jack, OUTPUT A/MONO jack, OUTPUT B jack:Â |
 | 1/4-inch phone type |
 | CTL 1, 2/EXP jack: 1/4-inch TRS phone type |
 | MIDI (IN, OUT) jacks: Stereo miniature phone type |
 | DC IN jack |
 | USB port: USB micro B-type (program update only) |
Power Supply | AC adaptor |
Current Draw | 140 mA |
Accessories | AC adaptor |
 | Owner's Manual |
 | Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") |
 | Rubber foot |
Options (sold separately) | Footswitch: FS-5U |
 | Dual footswitch: FS-6, FS-7 |
 | Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5 |
 | MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 |
SIZE AND WEIGHT | Â |
Width | 192mm | 7-9/16 inches |
Depth | 133mm | 5-15/64 inches |
Height | 52mm | 2-3/64 inches |
Height (including rubber foot) | 53mm | 2-3/32 inches |
Weight | 860 g | 1 lb 15 oz |
