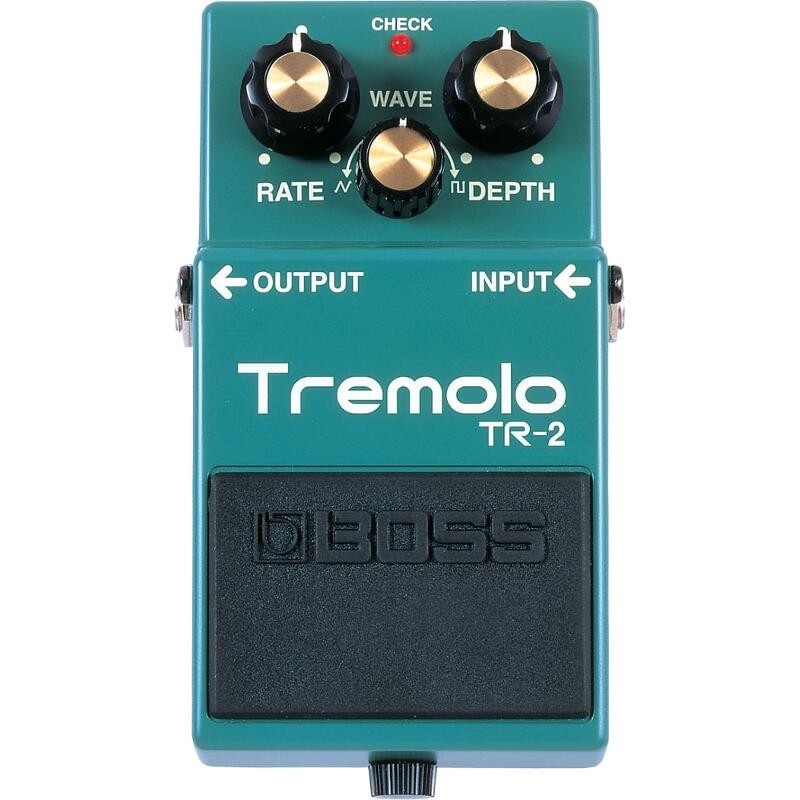

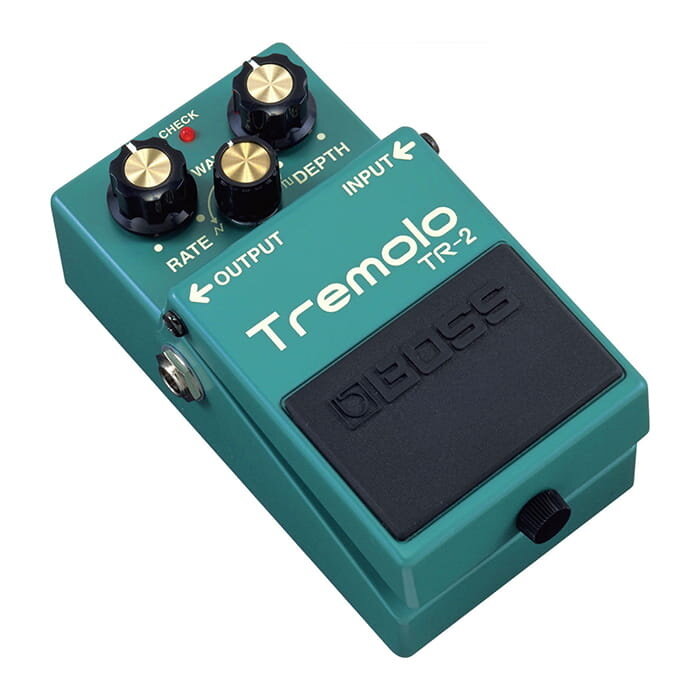

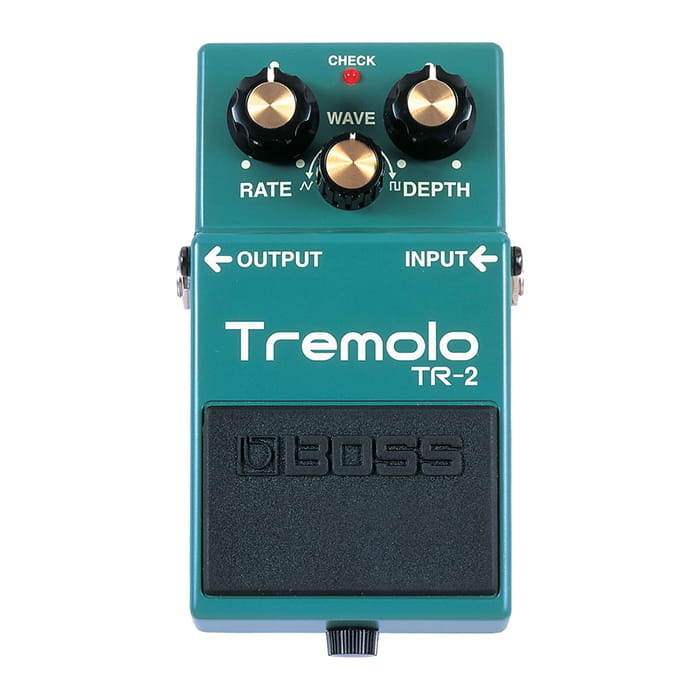

TR2 Tremolo Pedal
Show all:
Tremolo,Accessories
Description
Read moreRead less
The BOSS TR-2 Tremolo is a tiny, user-friendly pedal that gives guitarists access to vintage tremolo effects. Numerous effect options are offered by dedicated "Wave," "Rate," and "Depth" knobs.
Features
- - Provides guitarists with high-quality vintage tremolo effects in an easy-to-use compact pedal
- - Dedicated "Wave," "Rate" and "Depth" knobs allow for precise effect tailoring
- - "Rate" control allows for higher speed adjustment than classic PN-2
- - "Wave" control alters LFO waveform from triangle to square
- - "Depth" control determines the strength of the effect
- - BOSS five-year warranty
SPECIFICATIONS
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Bypass | Buffered bypass |
| DEPTH knob | |
| RATE knob | |
| WAVE knob | |
| Pedal switch | |
| Indicator | CHECK indicator (Used for indication of check battery) |
| Connectors | INPUT jack: 1/4-inch phone type |
| OUTPUT jack: 1/4-inch phone type | |
| DC IN jack | |
| Power Supply | Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) |
| AC adaptor (PSA series: sold separately) | |
| Current Draw | 25 mA |
| Expected battery life under continuous use | Carbon: Approx. 12 hours |
| Alkaline: Approx. 28 hours | |
| *These figures will vary depending on the actual conditions of use. | |
| Accessories | Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") |
| Carbon-zinc battery (9 V, 6F22) | |
| Options (sold separately) | AC adaptor: PSA series |
| SIZE AND WEIGHT | |
| Width | 73 mm | 2-7/8 inches |
| Depth | 129 mm | 5-18/ inches |
| Height | 59mm | 2-3/8 inches |
| Weight (including battery) | 385 g | 14 oz |
