Description

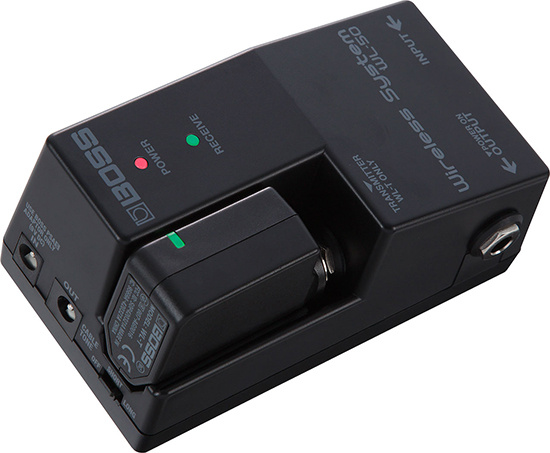

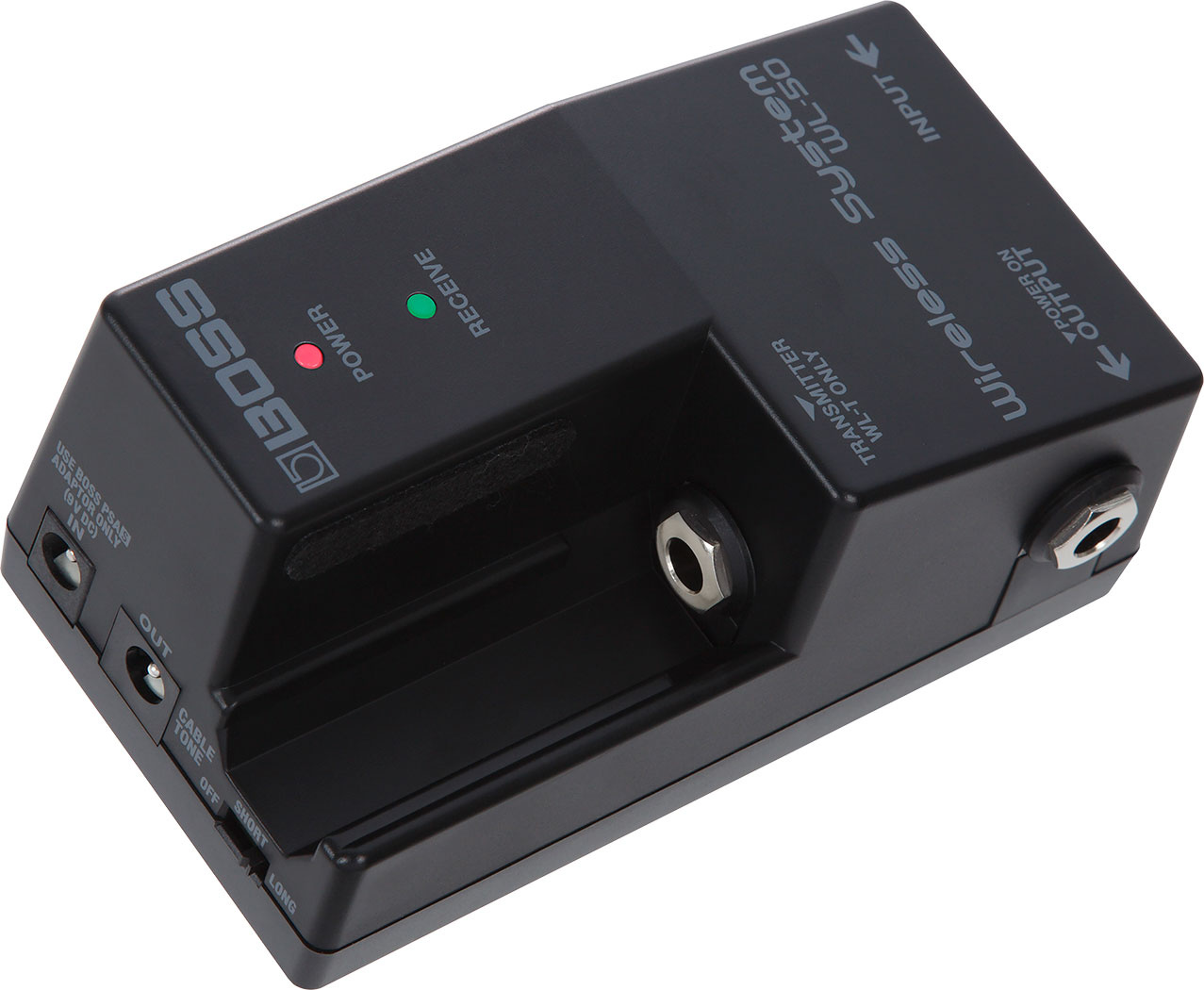

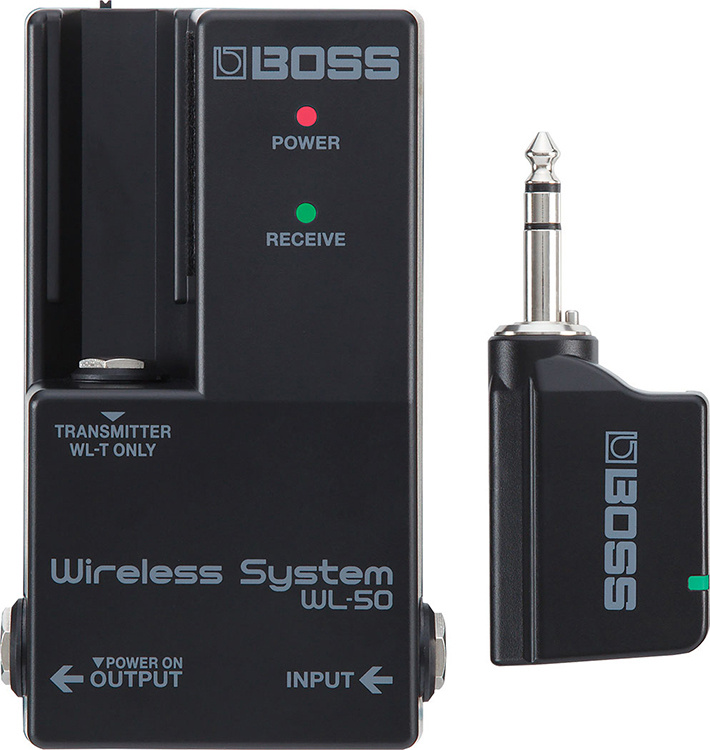

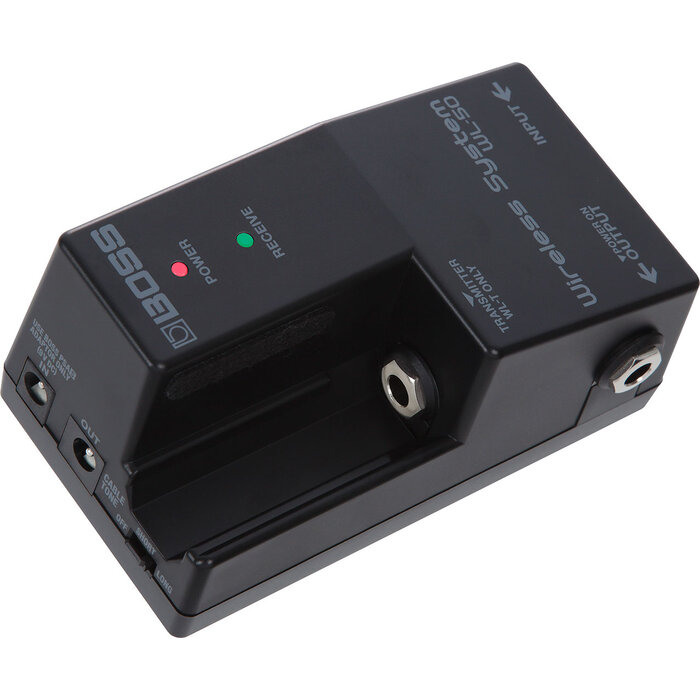

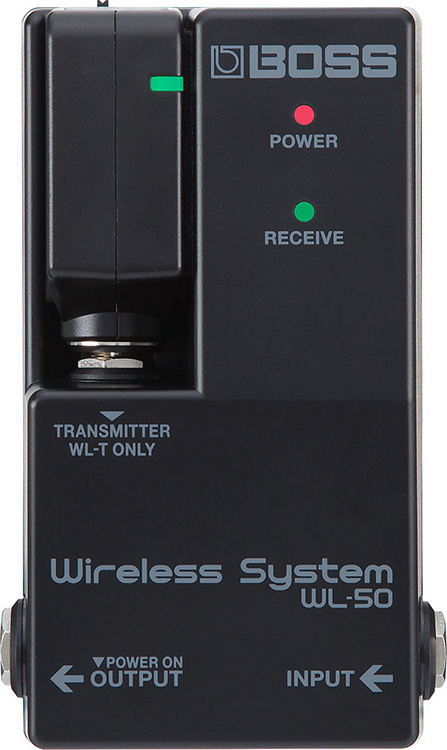

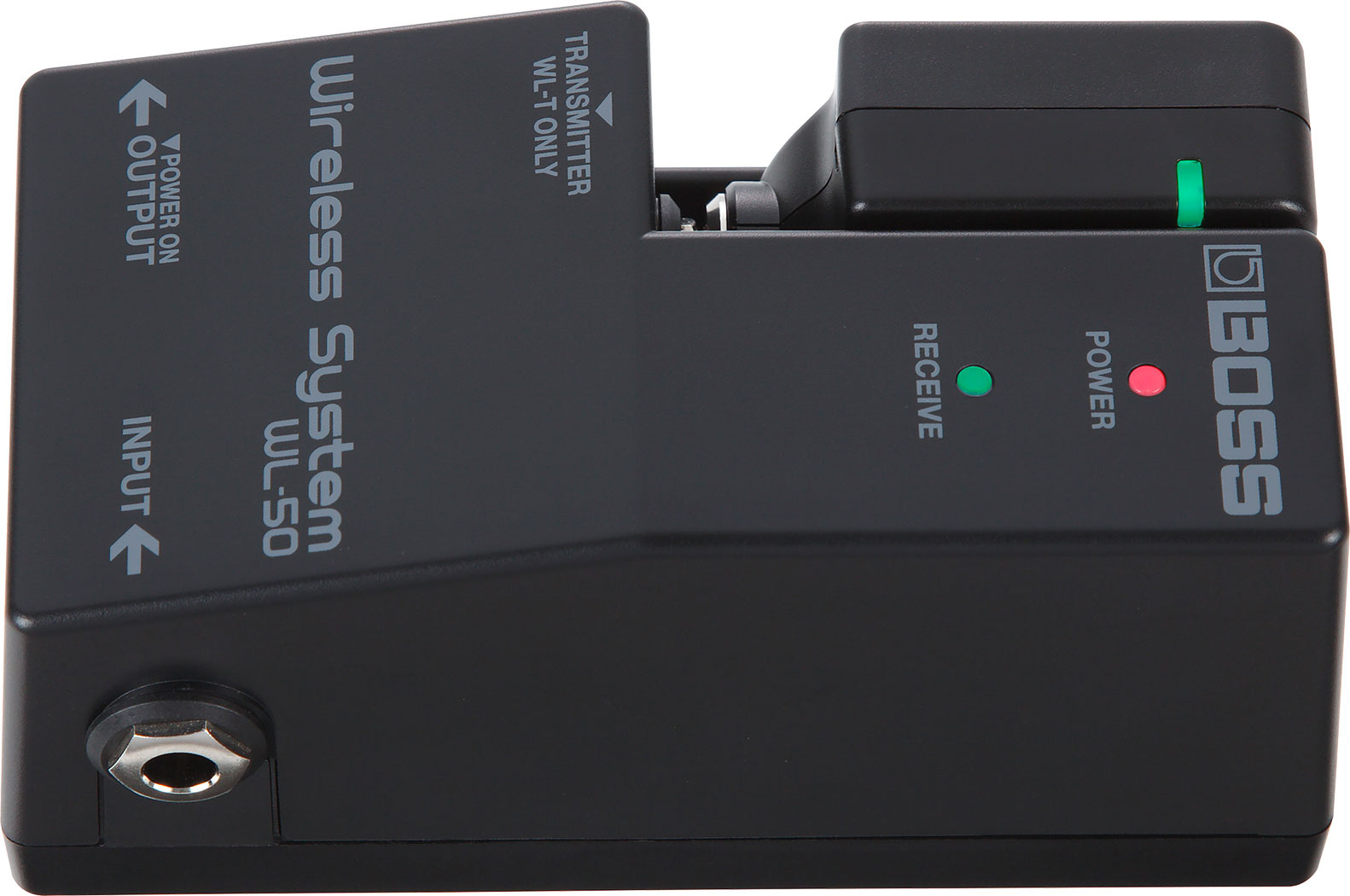

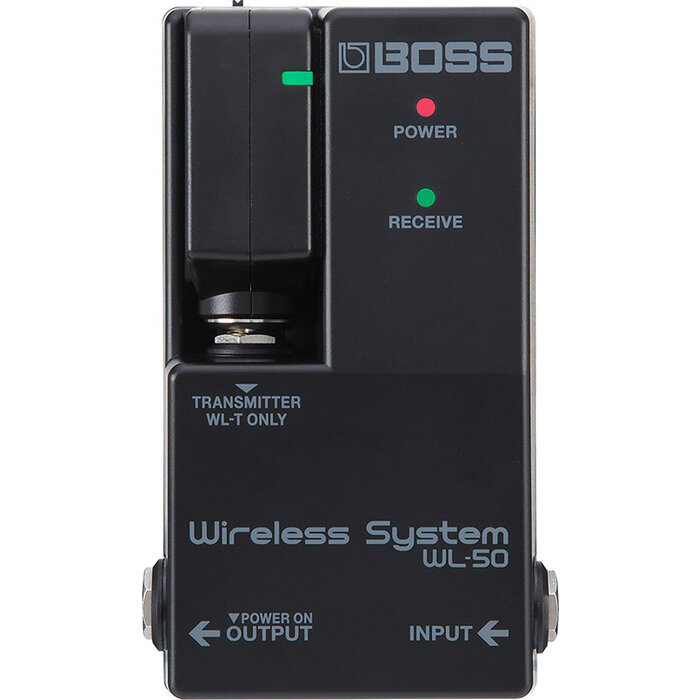

The WL-50 eliminates all the normal issues with wireless systems through high-quality audio and a plug-and-play setup. The compact receiver contains a docking socket for charging the transmitter and automatically identifying the best wireless connection. It is shaped like a stompbox and may be used with different pedals. Even better, you can use the handy DC output to distribute power to many pedals on your board.

Features

- Plug-and-play wireless system in a stompbox-size format for pedalboards
- Optimum wireless connection set automatically, with no complicated setup required
- Newly developed BOSS technology delivers premium audio performance with rock-solid stability, ultra-low latency (2.3 ms), and 65-foot/20-meter range (line-of-sight propagation)*
- Built-in rechargeable battery in transmitter provides up to 12 hours of continuous playing time
- Plug the transmitter into the receiverâ€™s docking port for charging and automatic wireless setup**
- Selectable cable tone simulation options: short, long, and bypass
- Receiver powered by optional PSA-S adaptor or two AA batteries
- With PSA-S adaptor power, the receiverâ€™s DC output can distribute power to one or more pedals using an optional PCS-20A daisy-chain cable
- Spare WL-T Transmitter available separately

SPECIFICATIONS

- Wireless Format:Â BOSS proprietary digital audio format
- Wireless Carrier Frequency:Â 2.4 GHz
- Compatible Channels:Â 14 (May vary due to local conditions)
- Transmission Range:Â 65 feet line-of-sight (May vary due to local conditions)
- Latency:Â 2.3 ms
- Dynamic Range: 110 dB or greater
- Frequency Response: 20 Hz-20 kHz
- Nominal Input level: -10 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -10 dBu
- OutputÂ Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Controls: Cable Tone switch (OFF/SHORT/LONG)
- Indicators: Power | Receive

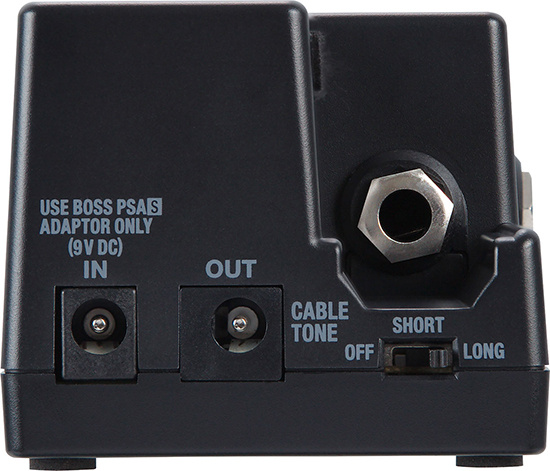

- Connectors: INPUT jack:Â 1/4-inch phone type |Â OUTPUT jack: 1/4-inch phone type |Â TRANSMITTER jack: 1/4-inch TRS phone type |Â DC IN jack |Â DC OUT jack
- Power Supply:Â Alkaline battery (AA, LR6) x 2 |Â AC adaptor (sold separately)
- Current Draw:Â During wireless operation: 60 mA |Â While charging transmitter: 320 mA
- Expected battery life under continuous use:Â Alkaline battery (AA, LR6): Approximately 7Â hours |Â * These figures will vary depending on the actual conditions of use.
- Accessories:Â Owner's Manual |Â Leaflet USING THE UNIT SAFELY |Â Transmitter |Â Rubber foot x 4 |Â Alkaline battery (AA, LR6) x 2 |Â An AC adaptor (PSA-S series) is required to charge the transmitter (WL-T).
- Options (sold separately):Â AC adaptor: PSA-S series |Â Parallel DC cord: PCS-20A (DC Plug x8)

SIZE AND WEIGHT (RECEIVER)

- Width: 72 mm | 2-7/8 inches
- Depth: 121 mm | 4-13/16 inches
- Height: 56 mm | 2-1/4 inches
- Weight (including battery): 220 g | 8 oz

SPECIFICATIONS (TRANSMITTER (WL-T))

- Nominal Input Level: -10 dBu (1 M ohm)
- Indicator: Battery
- Connectors:Â Input plug: 1/4-inch TRS phone type |Â DC IN 5 V port: USB Micro-B type
- Power Supply:Â Rechargeable lithium-ion battery |Â Supplied from the DC IN 5 V port
- Current Draw: 350mA
- Battery Charging Time: Approximately 3 hours
- Expected battery life under continuous use:Â Approximately 12 hours |Â * These figures will vary depending on the actual conditions of use.

SIZE AND WEIGHT (TRANSMITTER (WL-T))

- Width: 87 mm | 3-7/16 inches
- Depth: 22 mm | 7/8 inches
- Height: 36 mm | 1-7/16 inches
- Weight: 43 g | 2 oz
