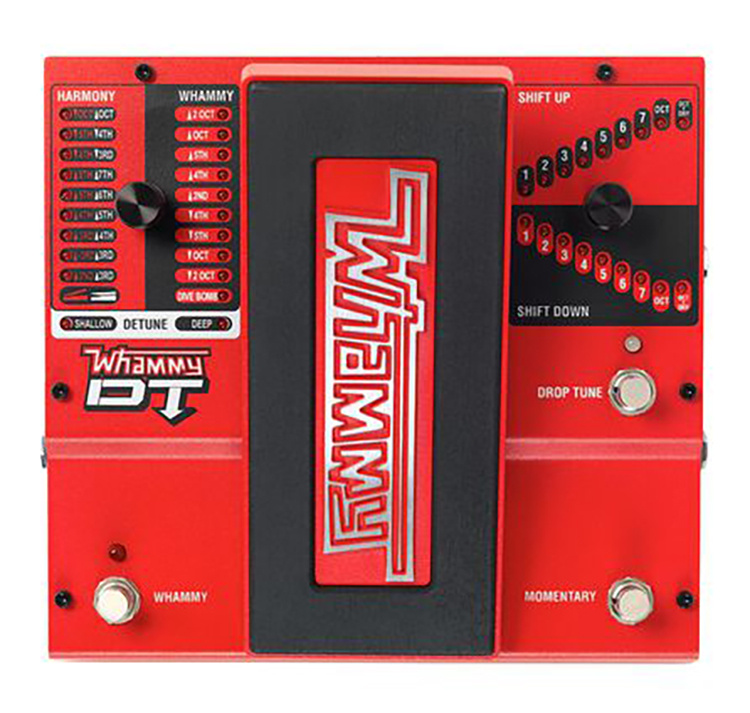

DigiTechWhammy Dt

SPECIFICATIONS

• - D/A Conversion: 24 Bit
• - Pitch Bend Range: +2/-3 Octaved
• - Detune Range: -4 to -30 cents
• - Drop Tune Range: 1-7 Semitones, Octave, Octave + Dry
• - Power Consumption: 2.6 Watts (< 288 mA @ 9 VDC)
• - Power Adapter: 9 VDC External Adapter
• - Sample Rate: 44.1 kHz
• - Frequency Response: 20 Hz to 20 kHz
• - Signal to Noise Ratio: > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
• - THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
• - Height: 2.36"
• - Width: 8.2"
• - Depth: 7.73"

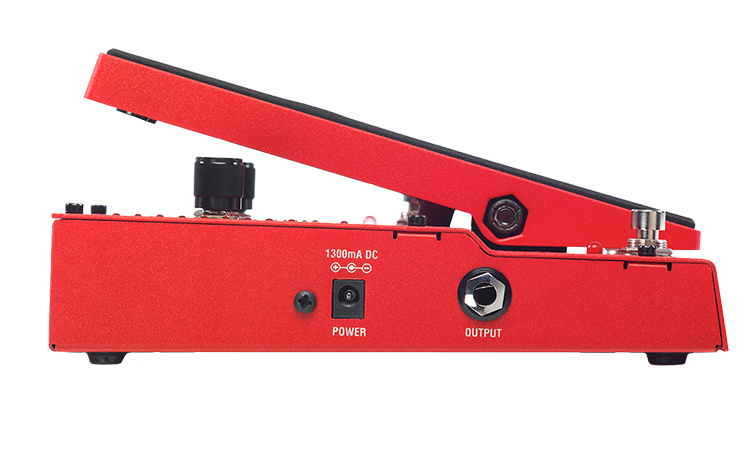

• - Output Type: 1/4” Unbalanced TS
• - Max Output Level: +10 dBu
• - Output Impedance: 1 kΩ

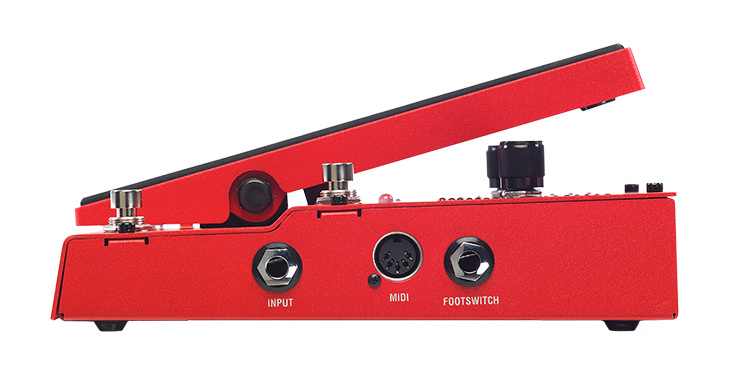

• - Instrument Input Type: 1/4” Unbalanced TS
• - Max Input Level: +5 dBu
• - Input Impedance: 1 MΩ
• - MIDI Input: 5-Pin Din
• - Footswitch Input: 1/4” TRS – for use with optional FS3X Footpedal
