DigiTechWhammy Ricochet Pedal
Show all:
Pitch,Guitar Pedals
Description
Read moreRead less

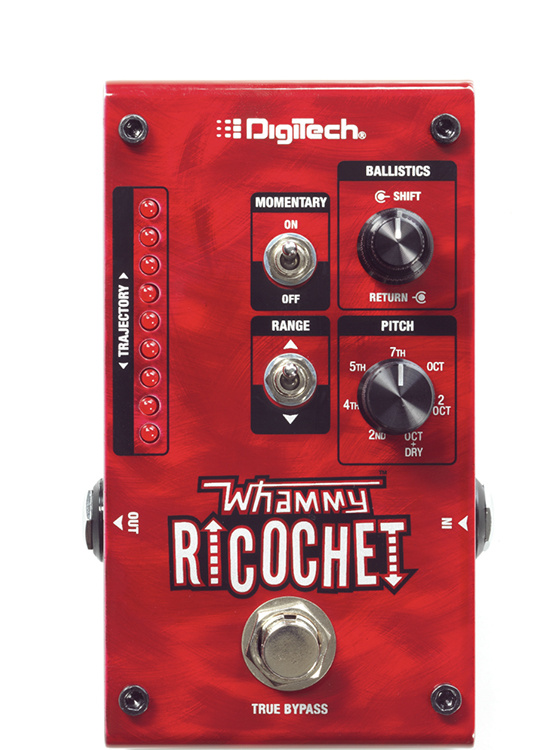

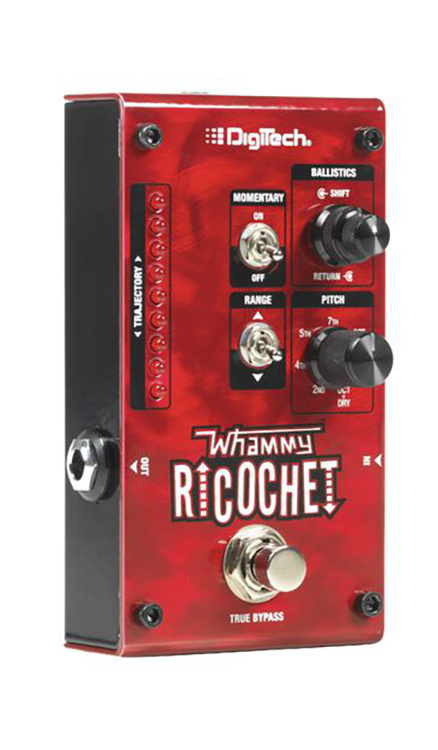

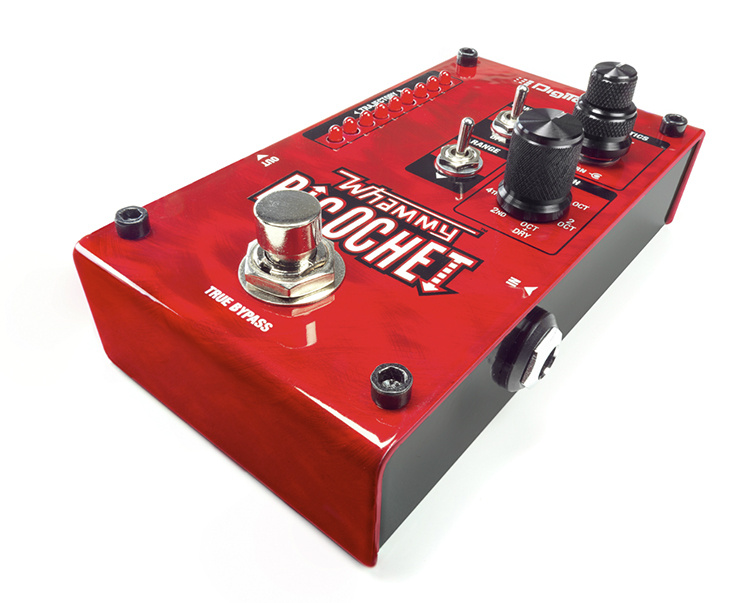

The Whammy Ricochet incorporates the well-known Whammy pitch shifting effect into a compact pedal. The Whammy Ricochet bends the pitch of the incoming note at a pace regulated by shift and return controls rather than utilizing a foot treadle, as is the case with regular DigiTech Whammy pedals.
SPECIFICATIONS
| Controls | Ballistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off |
| Sample Rate | 44.1 kHz in classic mode, 22 kHz in chords mode |
| Frequency Response | 20 Hz–16 kHz (classic mode), 20 Hz–11 kHz (chords mode) |
| Signal to Noise Ratio | > -106dB (A weighted); ref = max level, 22 kHz bandwidth |
| A/D/A Converter | 24-bit |
| THD | 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain |

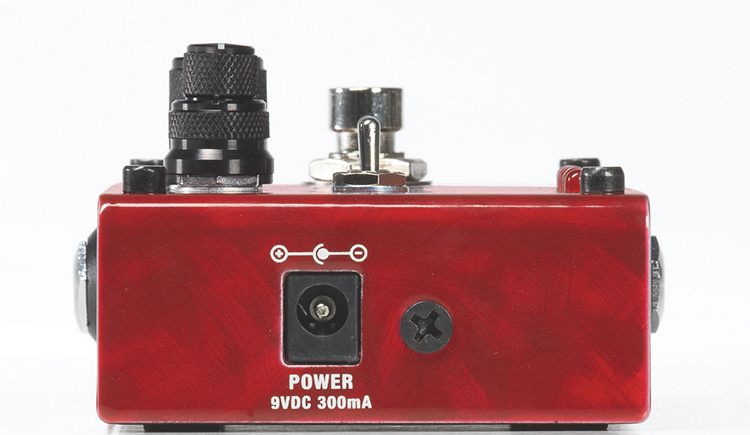

| Power Consumption | 2.1 Watts (235 mA typical @ 9 VDC) |
| Power Requirements | 9 VDC External Adapter (sold separately) |
| Power Supply | PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK) |
| Power Adapter Output | 9 VDC 1.3 A |
| Length | 4.75" |
| Width | 2.875" |
| Height | 1.75" |
| Weight | 0.8 lbs. |
| Output | 1/4" Unbalanced (Tip-Sleeve) |
| Max Output Level | +10 dBu |
| Output Impedance | 1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off) |
| Input | 1/4" Unbalanced (Tip-Sleeve) |
| Max Input Level | +5 dBu |
| Input Impedance | 1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off) |
