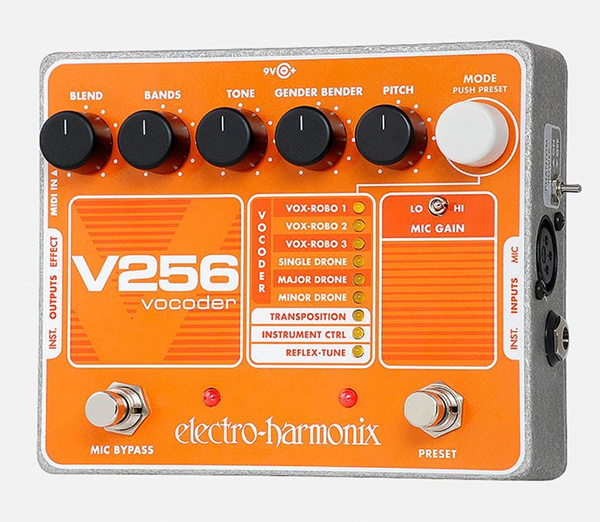

Electro HarmonixV256 Vocoder
Show all:
Guitar Pedals,Accessories
DescriptionRead moreRead less
The V256 Vocoder Pedal from Electro-Harmonix includes internal synthesizers for easy vocoding without an external instrument. The V256 has nine modes to choose from, each giving you a different sonic palette to work with. In addition, each mode may change the functionality of some of the V256's knobs.
Features
- - 3 VOX-ROBO vocoder modes that feature a robotic synthesizer
- - Single, Major, and Minor modes feature a drone synthesizer
- - 3 Vocal transposition modes including Transposition, Instrument Control, and Reflextune
- - Vocoder bands adjustable from a vintage sounding 8 bands to a smooth sounding 256 bands
- - Tone, Gender Bender, and Pitch controls
- - Save and load up to 9 presets; 1 preset for each mode
- - Scroll through the press using the Mode knob or Preset footswitch
- - Blend control
- - Vocoder band adjustment from 8-256 bands
- - Gender bender for male or female emphasis adjust
- - Reflex Tune for articulate Vocal pitch correction
- - Built-In balanced Mic Pre-Amp with switchable Phantom Power and Gain adjustment
- - Transposition for pitch shifting
- - Instrument control for monophonic pitch replacement
SPECIFICATIONS
CONNECTORS
- - 1 x XLR, microphone input
- - 1 x 1/4" phone jack, INST input
- - 1 x XLR, effect output
- - 1 x 1/4" phone jack, INST output
- - 1 x Power jack, 9 VDC input
- - 1 x 5-pin MIDI input jack
CONTROLS
- - 1 x Knob: Blend
- - 1 x Knob: Bands
- - 1 x Knob: Tone
- - 1 x Knob: Gender-Bender
- - 1 x Knob: Pitch
- - 1 x Knob: Mode
- - 1 x Push-switch: Mode
- - 1 x Footswitch: Preset
- - 1 x Footswitch: Mic Bypass
- - 1 x Toggle Switch: Mic Gain
- - 1 x Toggle Switch: Phantom Power
LED INDICATORS
- - Preset, solid/blinking
- - Status, solid/blinking
MIC PREAMPS
- - LO Mode = 15 dB; HI Mode = 25 dB (XLR out into High Z load)
- - LO Mode = 4.5 dB; HI Mode = 15 dB (XLR out into 600Ω load)
- - A/D and D/A Conversion Sample Rate = 36 kHz
- - A/D and D/A Conversion Bit Resolution = 24-bits
OUTPUT IMPEDANCE
- - 700Ω
POWER IMPEDANCE
- - 9 - 9.6 VDC @ 200 mA
DIMENSIONS
- - 4.75 x 5.75 x 2.5" (146 x 121 x 64 mm)
