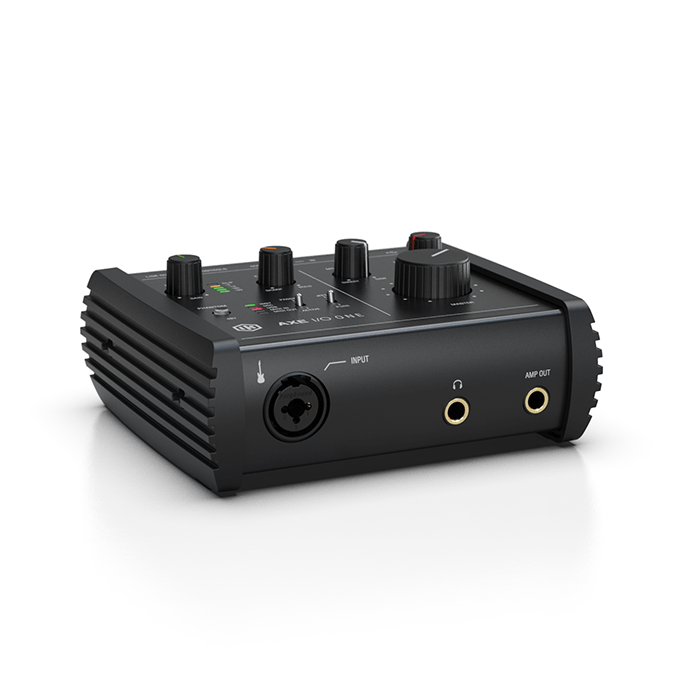

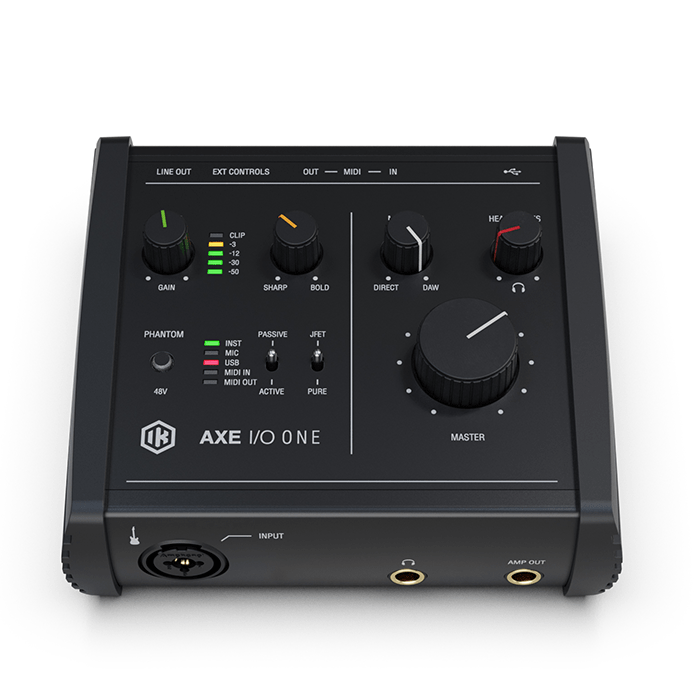

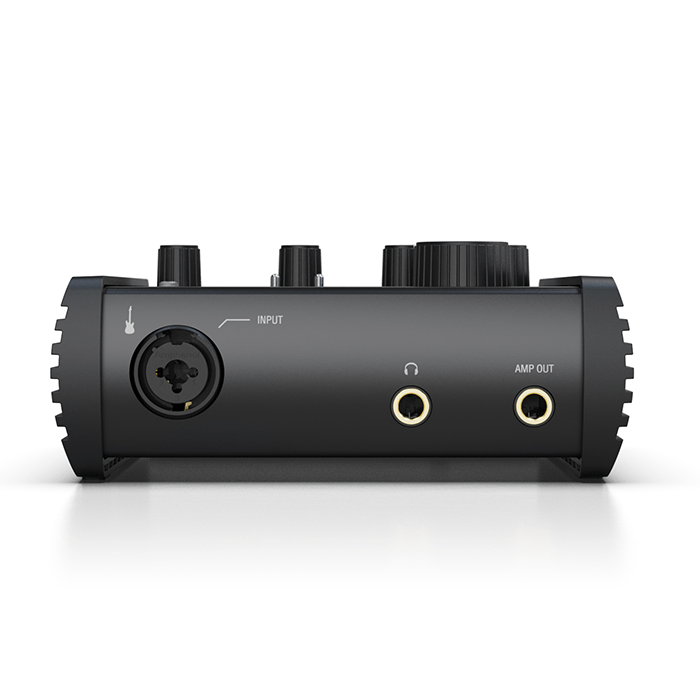

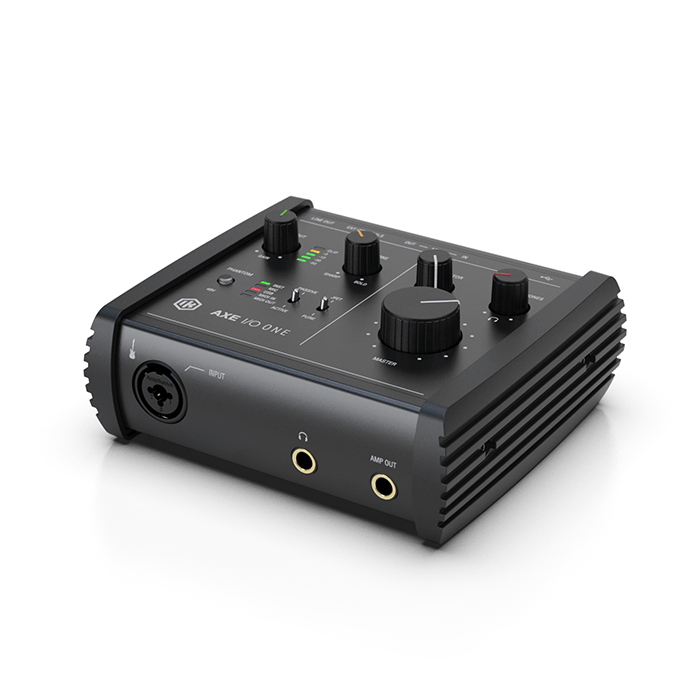

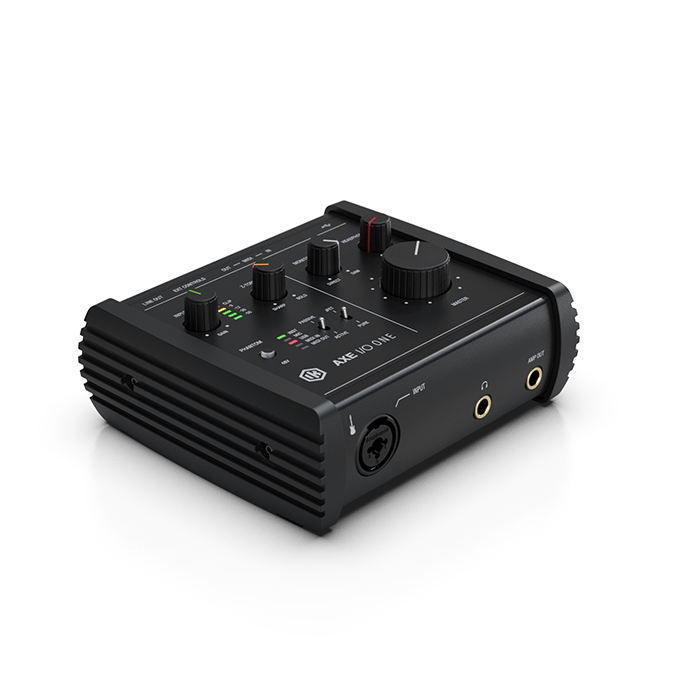

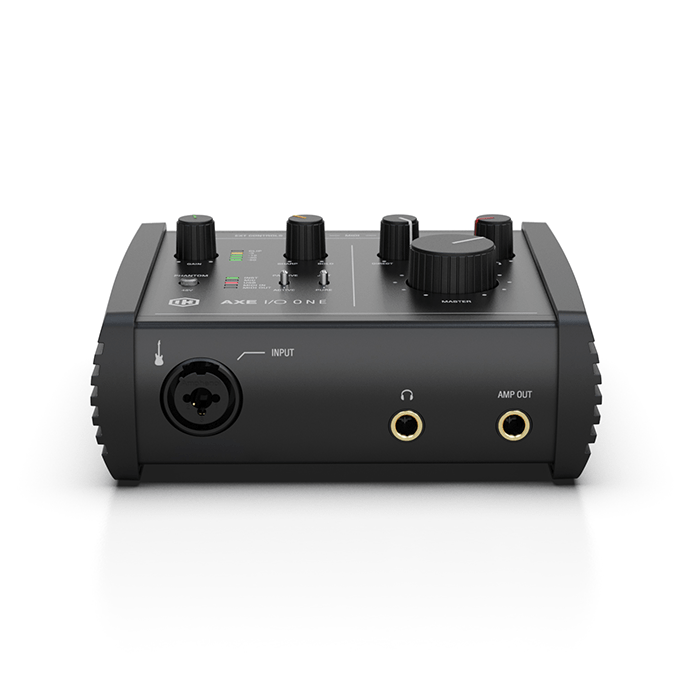

IK MultimediaAXE I/O ONE

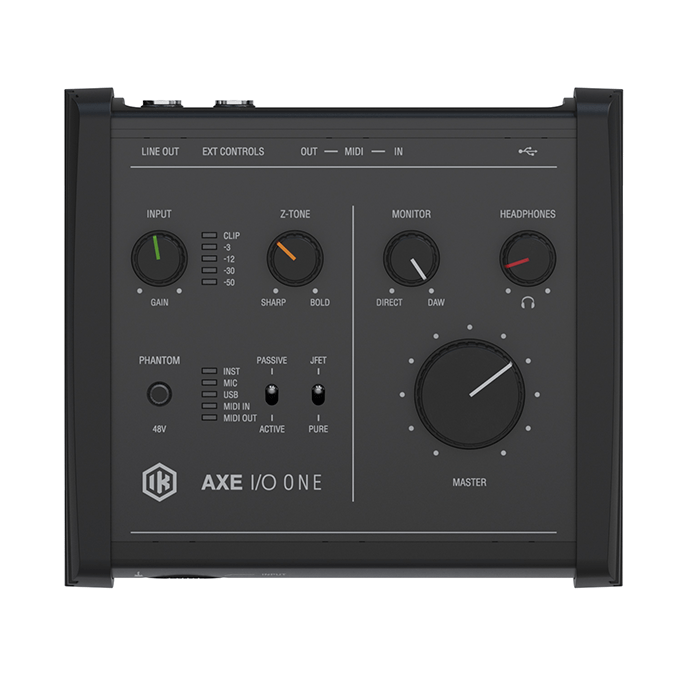

The IK AXE I/O ONE is a 1-in/3-out USB audio interface designed for guitarists and producers. Its Z-TONE input brings out your pickup’s true sound, while PURE and JFET stages let you switch between modern and vintage tones. The ACTIVE/PASSIVE selector ensures the best signal from the start.

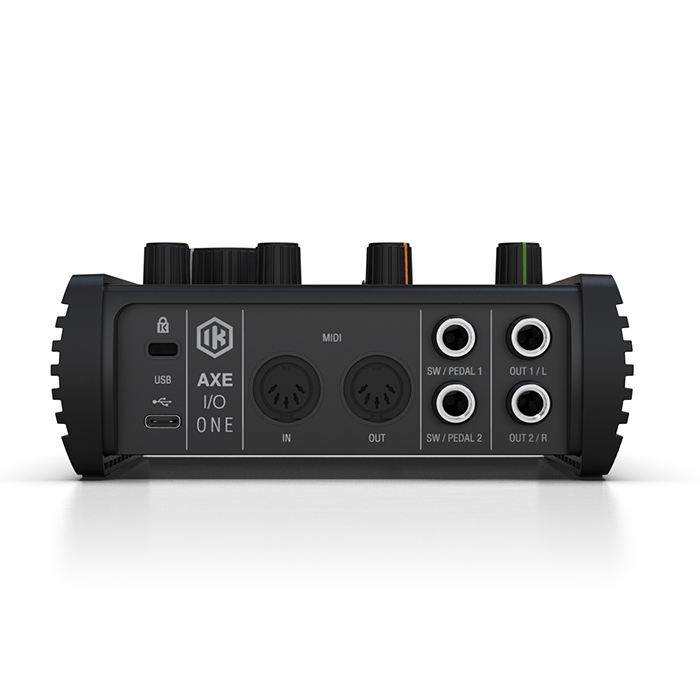

Capture acoustic guitar and vocals with a Class-A mic preamp and enjoy high-definition 24-bit/192 kHz audio for crystal-clear sound. The amp out with ground loop interrupter makes tone modeling easy, while MIDI in/out connects keyboards, e-drums, and controllers. Two programmable inputs support pedals or switches for extra control.
Includes AmpliTube 5 SE, TONEX SE, and Ableton Live Lite to get you started right away. IK AXE I/O ONE-your complete recording solution.
SPECIFICATIONS
| Common | |
| AD and DA Resolution | 24-bit |
| Sampling Rate | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Host Connection | USB Type-C socket |
| Mic Input | |
| Configuration | Class-A discrete differential microphone preamp, pin 2 hot |
| Input Impedance | 4 kOhms differential |
| Input Level (Min Gain) | 0 dBFS is obtained with a +7 dBu signal at the XLR input |
| Input Level (Max Gain) | 0 dBFS is obtained with a -42 dBu signal at the XLR input |
| Frequency Response | From 9 Hz to 45 kHz within 0.5 dB (96 kHz sample rate) |
| Dynamic Range | 108 dB(A) |
| THD+N | -104 dB(A) at -10 dBFS |
| Instrument Input | |
| Configuration | Multiple topology instrument preamp |
| Input Impedance (Passive Mode) | Variable from 1 MOhms down to 2.2 kOhms |
| Input Impedance (Active Mode) | 10 kOhms |
| Input level, min gain | 0 dBFS is obtained with a +10.5 dBu signal at the TS input |
| Input level, max gain | 0 dBFS is obtained with a -19 dBu signal at the TS input |
| Frequency response | From 11 Hz to 45 kHz within 0.5 dB (96 kHz sample rate) |
| Dynamic range | 108 dB(A) |
| THD, PURE mode | 0.0018 % (-1 dBFS input) |
| THD, JFET mode | 0.42 % |
| Line Outputs 1-2 (Monitor) | |
| Configuration | Electronically balanced |
| Output Impedance | 150 Ohms balanced, 75 Ohms unbalanced |
| Output level | 0 dBFS corresponds to +12.8 dBu |
| Frequency response | From 10 Hz to 42 kHz within 0.5 dB (96 kHz sample rate) |
| Dynamic range | 108 dB(A) |
| THD @ -1 dBFS | 0.0015% |
| THD+N | -95 dB(A) at -1 dBFS |
| Channels 1-2 crosstalk | 109 dB(A) |
| Output 3 (Amp Output) | |
| Configuration | Unbalanced, floating, with selectable ground lift |
| Output Impedance | 75 Ohms |
| Output level | 0 dBFS corresponds to -3.5 dBu |
| Frequency response | From 20 Hz to 44 kHz within 1 dB (96 kHz sample rate) |
| Dynamic range | 108 dB(A) |
| THD+N | -93 dB(A) |
| Headphone Output | |
| Output Impedance | Virtually ideal source (zero Ohms) until clipping |
| Maximum Output Level | +5 dBu into 50 Ohms load (approx 40 mW) |
| Frequency response | From 1 Hz to 44 kHz within 1 dB (96 kHz sample rate) |
| Dynamic range | 108 dB(A) |
| Package Includes | |
| AXE I/O One | Included |
| USB Cable | USB A-Type to USB C-Type connection cable (1.5m/4.32ft) |
| Dimensions | |
| Size | 13cm/5.12" x 14.5cm/5.71" x 5.2cm/2.04" |
| Weight | 0.37kg/0.8lb |
| Compatibility | |
| Computers | 64-bit application. Requires a 64-bit CPU and Operating System. |
| Mac® (64-bit) | Minimal: macOS 10.15 or later. One free USB port. |
| Windows® (64-bit) | Minimal: Windows 10 or later. One free USB port. |
