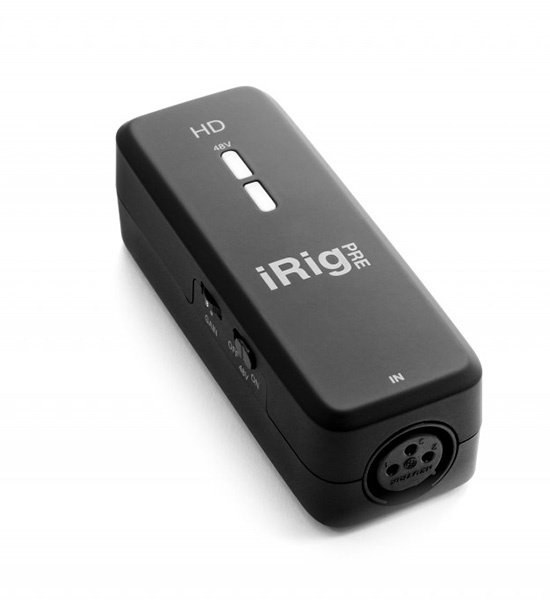

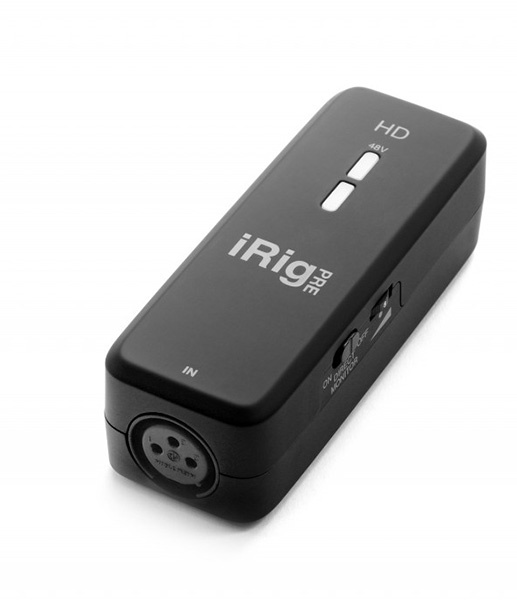

IrigIk Multimedia; Pre Hd Microphone Interface
iRig Pre HD enables you to record on the fly with your preferred XLR mics in breathtaking quality. This means that wherever you are, your portable device can easily provide authentic studio sound. The iRig Pre HD is an excellent, adaptable, high-resolution microphone interface for studio recording, cinema, radio, television, and broadcast applications. It packs a powerful punch in a very portable shell and produces excellent results with even the most gain-hungry microphones. You can effortlessly record the entire dynamics of the sound being captured by your microphone down to the smallest details and with crystal-clear quality thanks to its integrated, high-grade Class A preamp. With the help of stylish multicolor LEDs, you can visually adjust the appropriate amount of gain for your applications and determine whether phantom power is being used.
Features
- MFi microphone interface certified by Apple “Made for iPhone and iPadâ€
- Compatible with Mac and PC

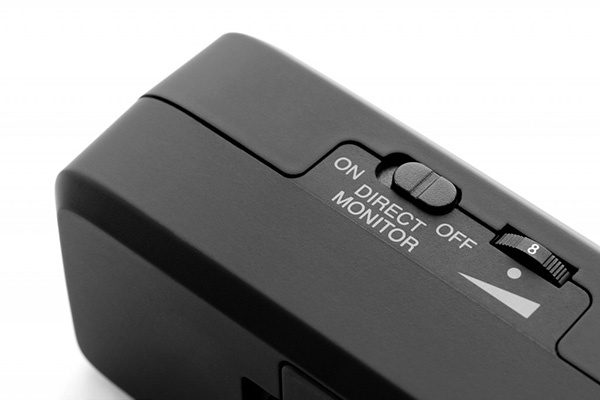

- Direct monitor switch for real-time monitoring or for playback
- +48V Phantom Power (with 2 x AA batteries)

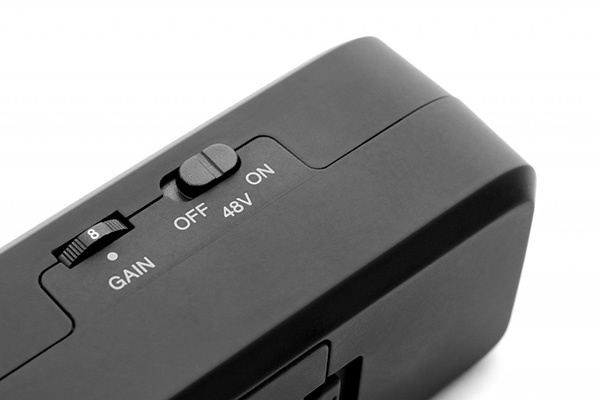

- Class A mic preamp with onboard gain control
- High-definition 24-bit converters with up to 96kHz sampling frequency

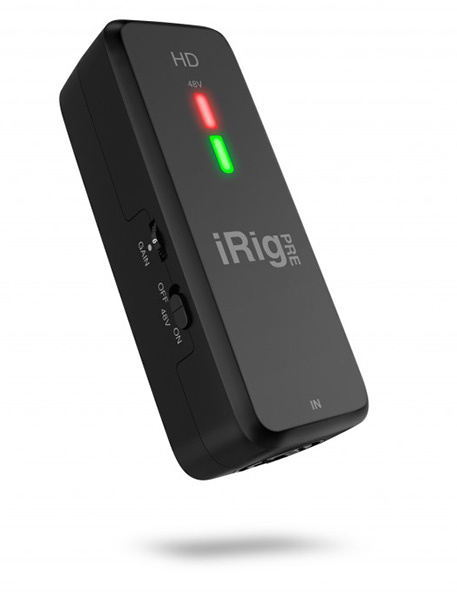

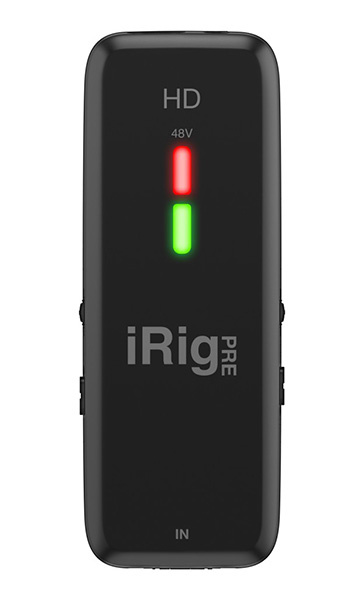

- Multicolor LED for easy gain settings
- Includes IK’s renowned, professional software and apps
- Ultra-light and compact
- Sleek and elegant design
- Comes with USB and Lightning cables, 2 x AA batteries and a velcro mounting strip
- Custom ASIO driver for superior performance on Windows machines
SPECIFICATIONS
MICROPHONE INPUT | Â |

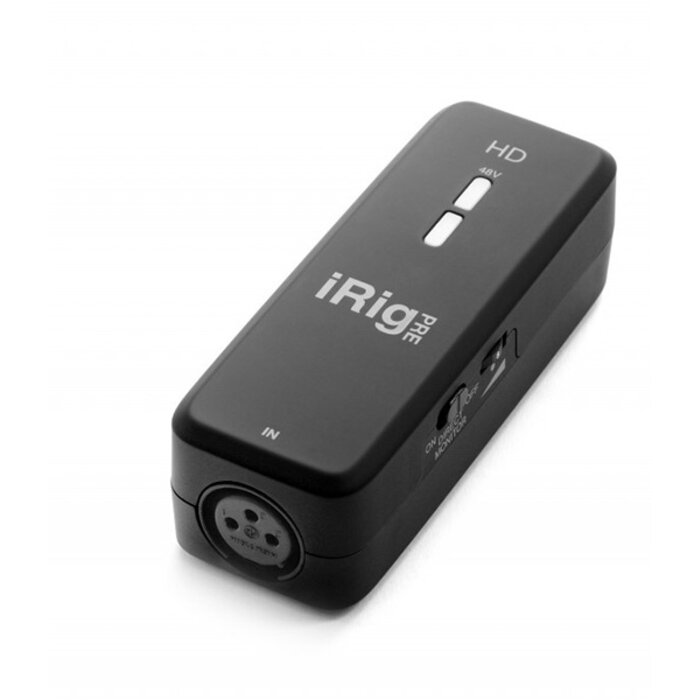

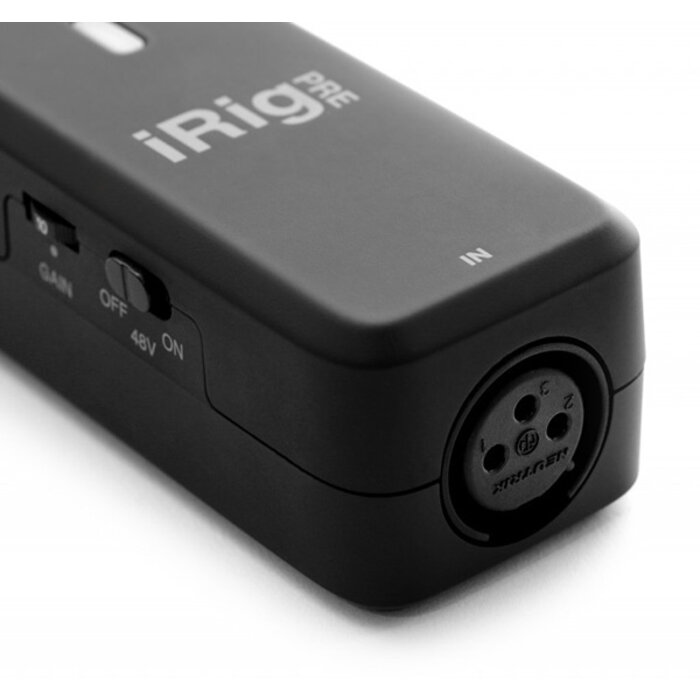

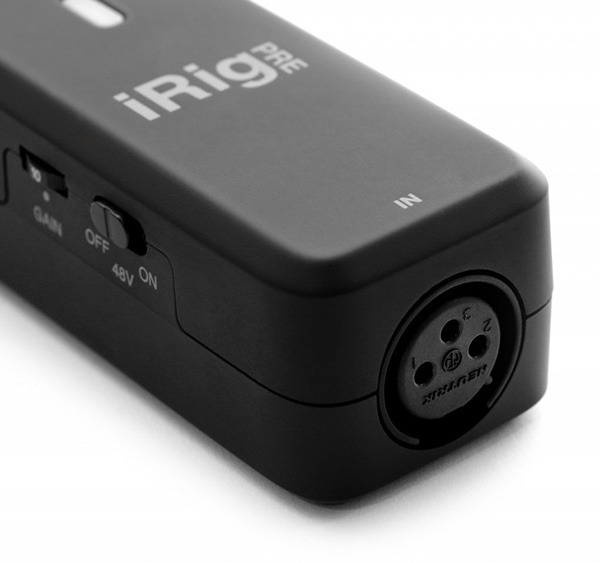

Microphone Input | balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground |
Microphone Input Level | Â from 6 mVpp to 1.4 Vpp |
Microphone Input Impedance | 2 kOhms |
Gain Range | 40 dB |
Phantom Power | +48V ± 4V |
Frequency Response | 20 Hz - 20 kHz +/-1.5dB |
Input Noise | -97 dB RMS, -105 dB(A) |
 |  |
STEREO HEADPHONE OUTPUT | Â |

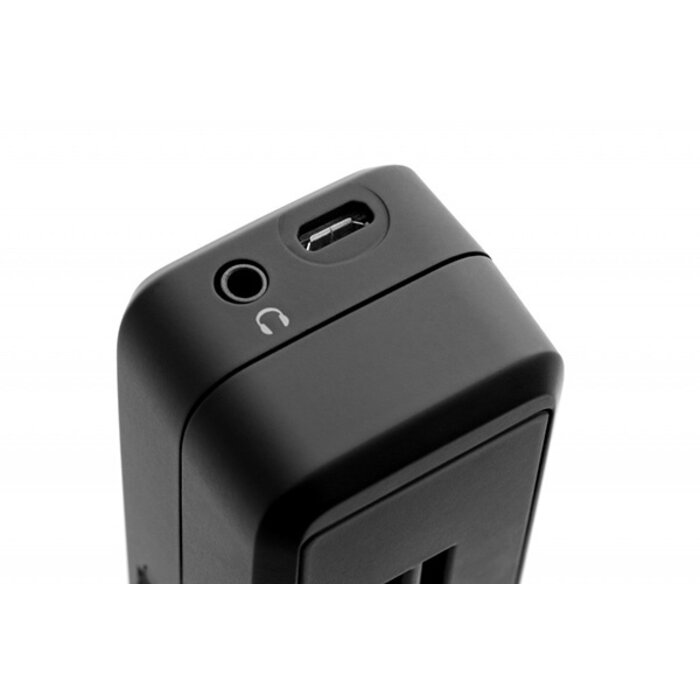

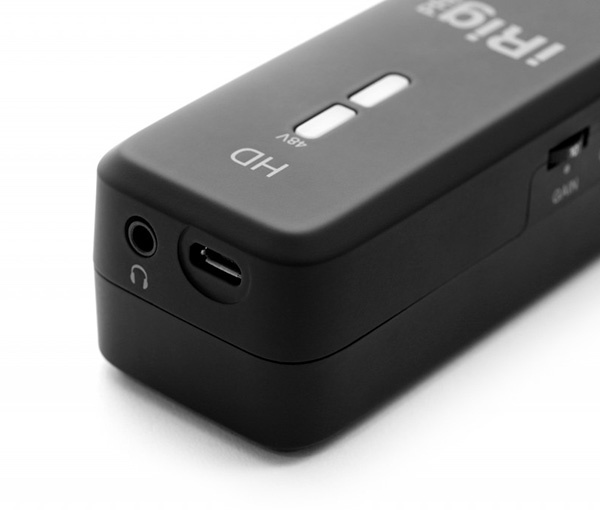

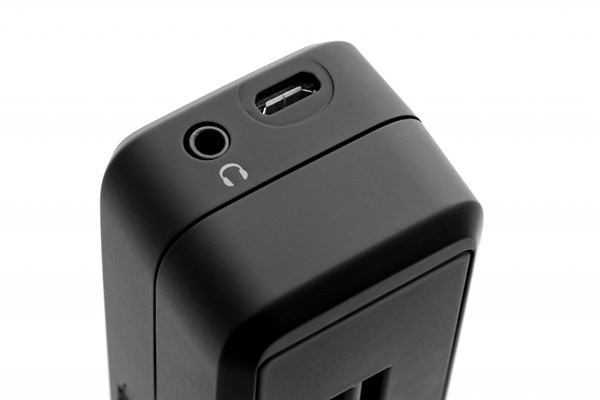

Connector | 1/8†TRS Jack. Tip: right / Ring: left / Shield: ground |
Headphone Level Control | numbered thumbwheel |
Headphone Level Power | 100mW into 50 Ohms |
 |  |
OTHER INPUT/OUTPUT | Â |
Device Connector | Micro - USB |
 |  |
COMMON | Â |
Conversion | 24-bit A/D, 24-bit D/A |
Sampling Rate | 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz |
Power | USB bus powered when used with a computer |
 | USB bus powered when used with a computer |
 |  |
PACKAGE INCLUDES | Â |
 | iRig Pre HD |
 | Lightning to micro-USB cable |
 | USB-A to micro-USB cable |
 | USB-C to micro-USB cable |
 | 2 x 1.5V AA battery |
 | Velcro strip |
 |  |
DIMENSIONS | Â |
Size | 40mm/1.57" x 110mm/4,33" x 34mm/1.34" |
Weight | 75g/2.65oz (batteries excluded) |
Cable length | 60cm/23.62" |
