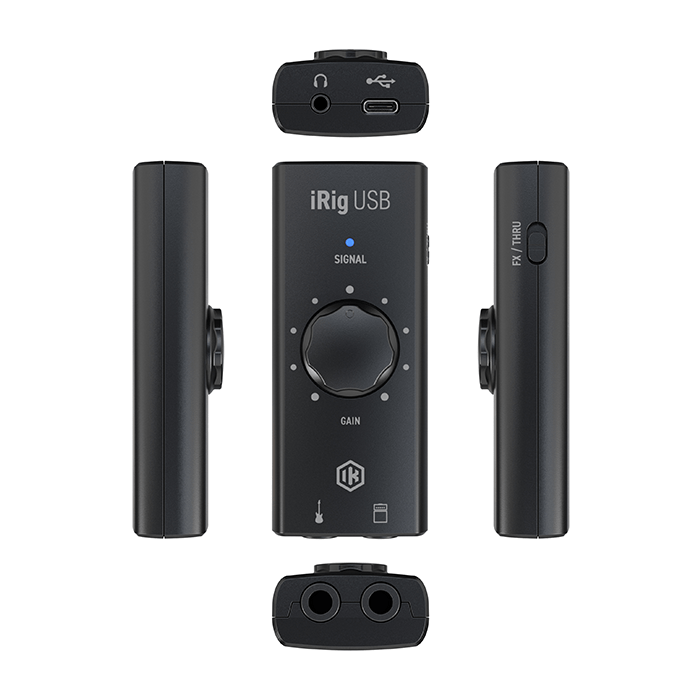

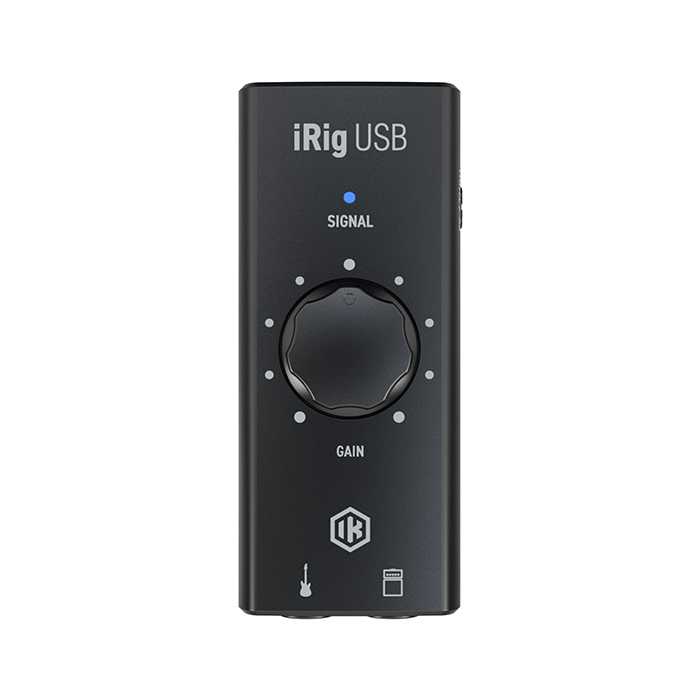

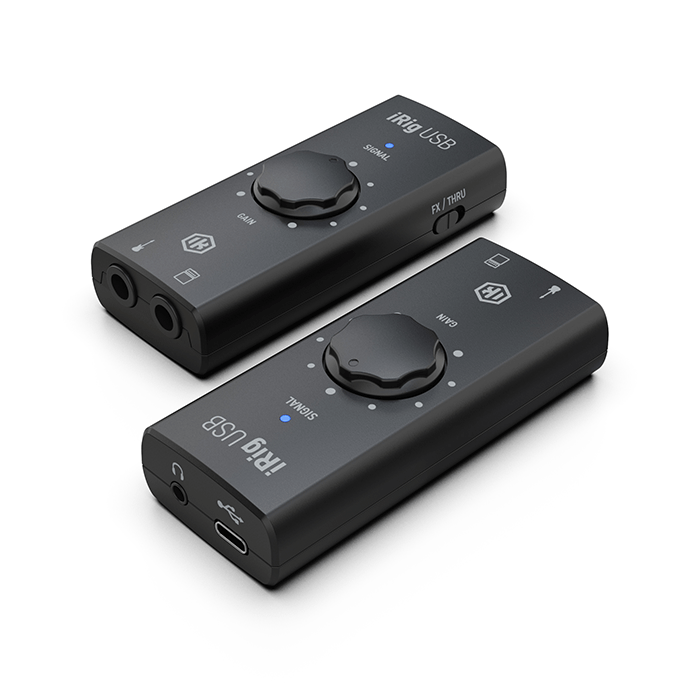

IK MultimediaiRig USB Audio Interface
Musicians who travel can use the IK iRig USB; it provides a portable audio interface design for playing their guitar or bass instrument. The iRig USB interfaces smoothly between iPad and Mac and PC as well as iPhone 15 for all music environments, including practice recording and performance.

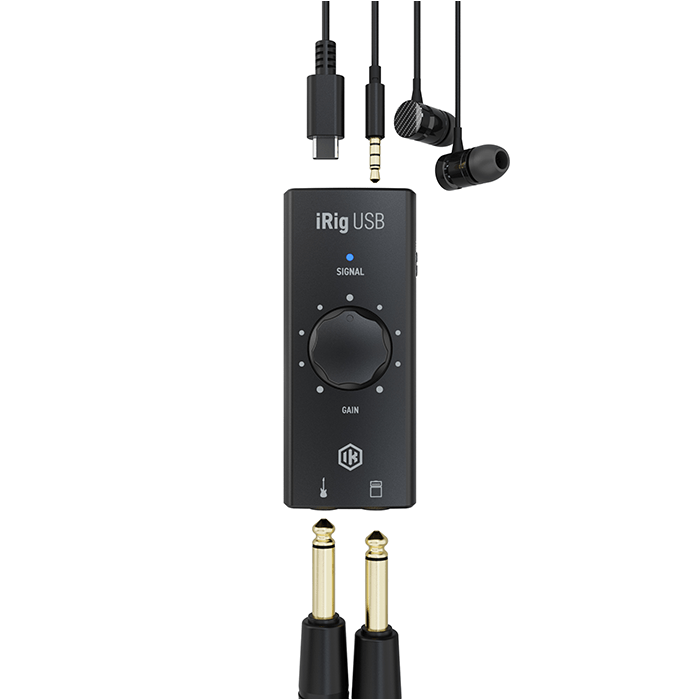

You can listen through 1/8″ headphone output or directly link it to amps and pedalboards through 1/4″ amp output. The device functions with all major applications for practice and recording while serving both novices and skilled users. The device includes the AmpliTube & ToneX amp modeling applications for professional tone capabilities in its initial package.
This device functions without batteries and draws power from your device after you connect it with a single plug.
SPECIFICATIONS
| Common | |
| AD and DA Resolution | 24-bit |
| Sampling Rate | 44.1 kHz and 48 kHz |
| Host Connection | USB Type-C socket |
| Instrument Input | |
| Input Impedance | 500 kOhms |
| Maximum Input Level | +13.5 dBu |
| Frequency Response | From 20 Hz to 20 kHz within 0.5 dB (48 kHz sample rate) |
| Dynamic Range | 90 dB(A) |
| Amp Output | |
| Configuration | Unbalanced |
| Output Impedance | 3.3 kOhms |
| Frequency Response | From 10 Hz to 20 kHz within 1 dB (48 kHz sample rate) |
| Dynamic Range | 97 dB(A) |
| Headphone Output | |
| Output Impedance | 22 Ohms |
| Maximum Output Level | Approx 6mW into 50 Ohms load |
| Frequency Response | From 10 Hz to 20 kHz within 1 dB (48 kHz sample rate) |
| Dynamic Range | 94 dB(A) |
| Package Includes | |
| iRig USB Interface | Included |
| USB Cable | USB-C to USB-C cable (60 cm/23.62") |
| Dimensions | |
| Size | 99 mm/3.9" x 42 mm/1.65" x 25 mm/0.98" |
| Weight | 54 g/1.9 oz. |
| Compatibility | |
| Computers | |
| Mac® | macOS 10.6 or later. One free USB port. |
| Windows® | Windows 10 or later. One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed. |
| iOS Devices | Compatible with iPhone and iPad devices with USB-C connector. Also compatible with iPhone and iPad devices with Lightning connector using Apple's Lightning to USB 3 Camera Adapter. |
| Android Devices | Compatible with Android devices running Android 5 or later and with USB digital audio capabilities. |
