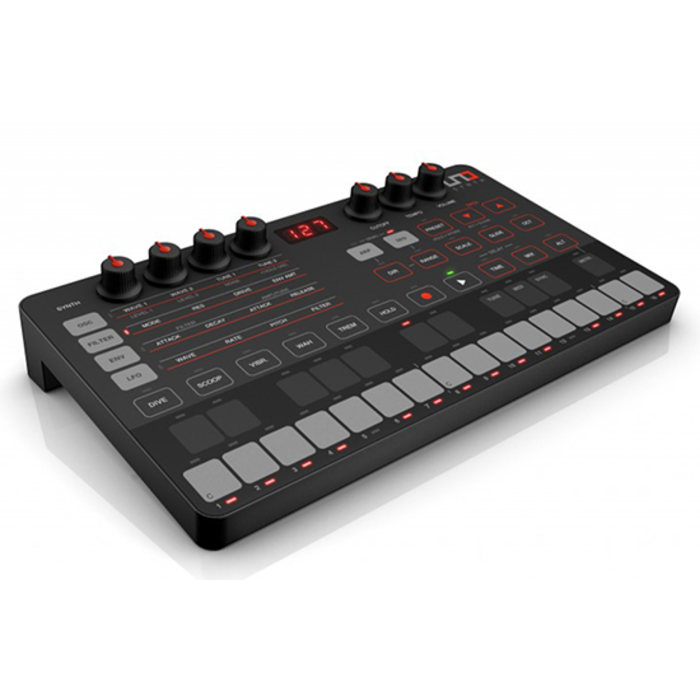

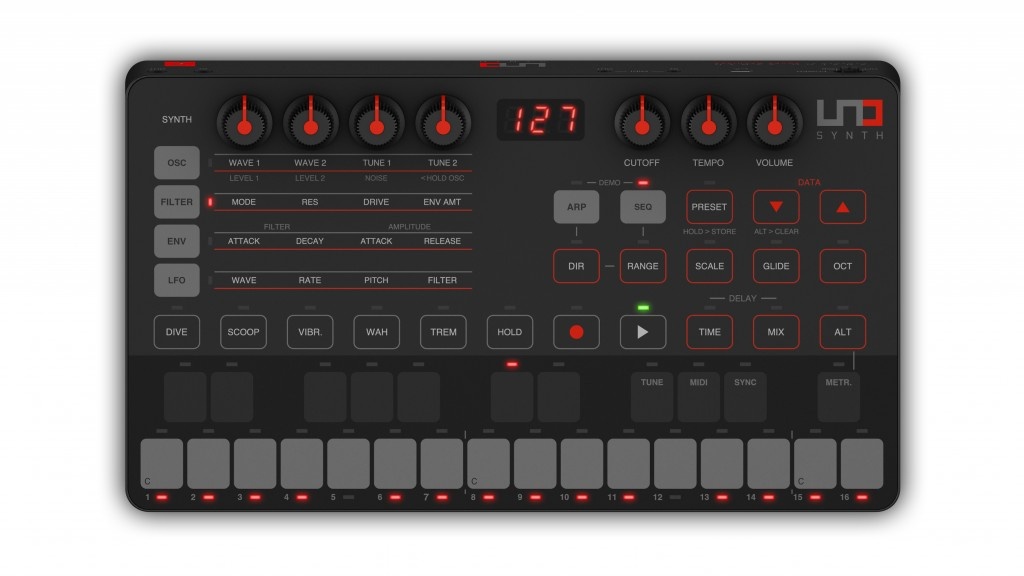

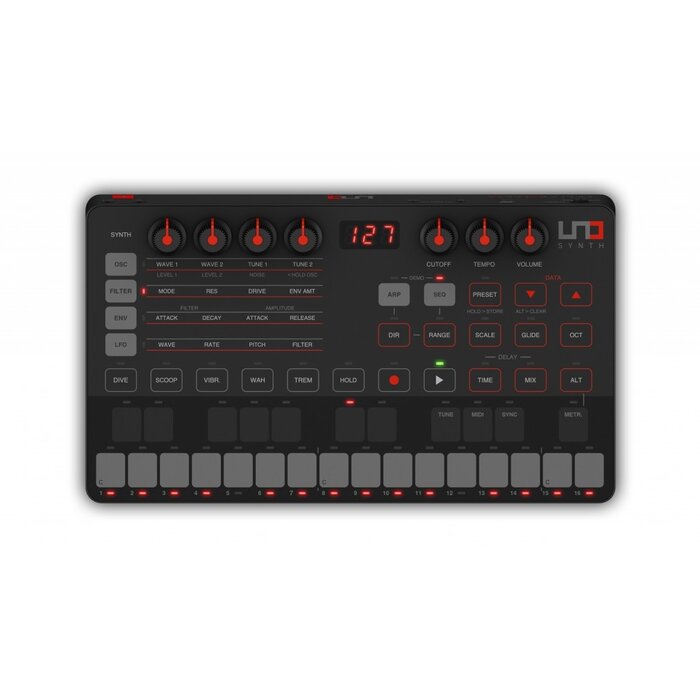

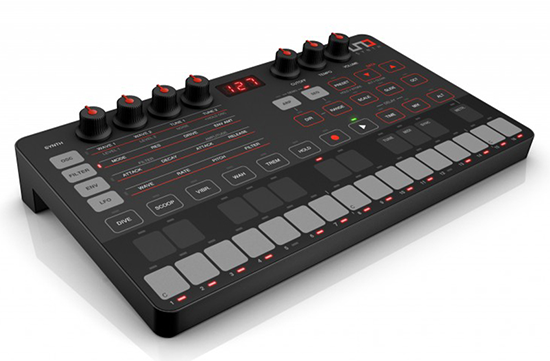

IK UNO SYNTH

The ultimate real analog synth for everyone. UNO Synth is the ultimate portable, monophonic, true analog synthesizer and IK Multimedia’s entry in the hardware synthesizer world.

Seasoned synth professionals and beginners alike will love UNO Synth’s high-quality, pure analog audio path and its ultra-compact form factor. With both classic and modern synth sounds instantly at hand, UNO will put a smile on the face of synth fans of every musical genre. All this is in a synth module that can be easily carried anywhere.

Features

• - Access full ADSR envelope controls by holding ENV
• - Access full ADSR envelope controls by holding FILTER
• - USB now supports MIDI out
• - MIDI can now by routed from USB to DIN and vice versa
• - Added a visual indicator if a preset has been edited and not saved

SPECIFICATIONS

SYNTHESIS

• - Type: Analog
• - Polyphony: 1 voice
• - Synthesis structure: 2 VCO, Noise generator, 1 VCF, 1 VCA, 2 EG, 1 LFO
• - VCO variable shape waveforms: Triangle, Sawtooth, Pulse with variable pulse width
• - VCF: 2-pole resonant multimode filter with Cutoff, Resonance, Env Amount, Drive
• - LFO: 7 shapes (Sine, Triangle, Square, Saw Up, Saw Down, Random, Sample & Hold), Rate
• - Modulation Destinations: Amp, Pitch, Filter, PWM, Waveshape (PWM and Waveshape via MIDI CC)
• - EG: 2 for Filter and Amplitude (full ADSR is available via MIDI)

PRESENT

• - 100 Presets (20 factory non-writable, 80 user)

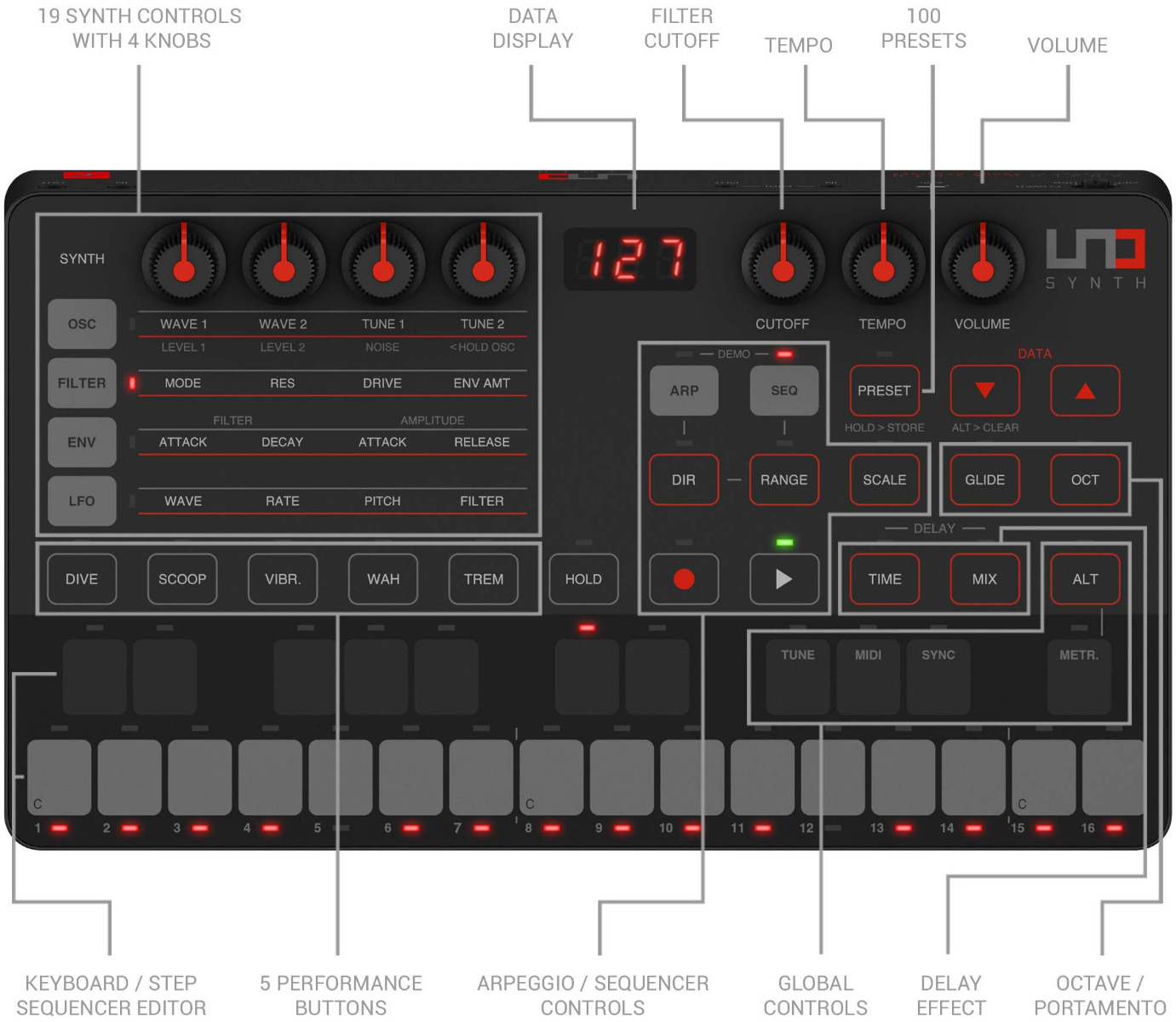

KEYBOARD AND CONTROLS

• - 7 Knobs (4 matrix, 3 fixed)
• - 13 Selectable scales (Chromatic, Major, Minor, Major Pentatonic, Minor Pentatonic, Major Blues, Minor Blues, Harmonic Minor, Mixolydian, Dorian, Klezmer, Hungarian Gypsy, Spanish Gypsy, Japanese, South-East Asian)

SEQUENCER

• - 16-step sequencer
• - Real-time and step recording with parameter recording
• - Real-time parameter recording per-step
• - 3 directions: Forward, Backward, Forward and Backward
• - Selectable length between 1 and 16 steps

ARPEGGIATOR

• - 10 Mode Arpeggiator
• - 4 octave range
• - Hold control

EFFECTS

• - Delay
• - Dive, Scoop, Vibrato, Wah, Tremolo

CONNECTIONS

• - Audio Out: Mini-jack 3.5mm stereo (mono summed)
• - Audio In: Mini-jack 3.5mm stereo (mono summed)
• - 2 x MIDI 2.5mm mini-jack to DIN cables (IN/OUT)
• - 1 Micro USB*

POWER

• - 4x AA Batteries (Alkaline, Ni-Mh)
• - Micro USB connector
• - Optional UNO Synth Power Bank

PACKAGE INCLUDES

• - UNO Synth
• - 1x Micro USB to USB-A cable (60cm/23.62")
• - 2x 2.5mm TRS male to MIDI female adapter (10cm / 3.9")
• - 4x AA batteries (Alkaline)

DIMENSIONS

• - Size: 25.6cm/10.1" x 15cm/5.91" x 5cm/1.96"
• - Weight: 400g/14.1oz (excluded batteries)
