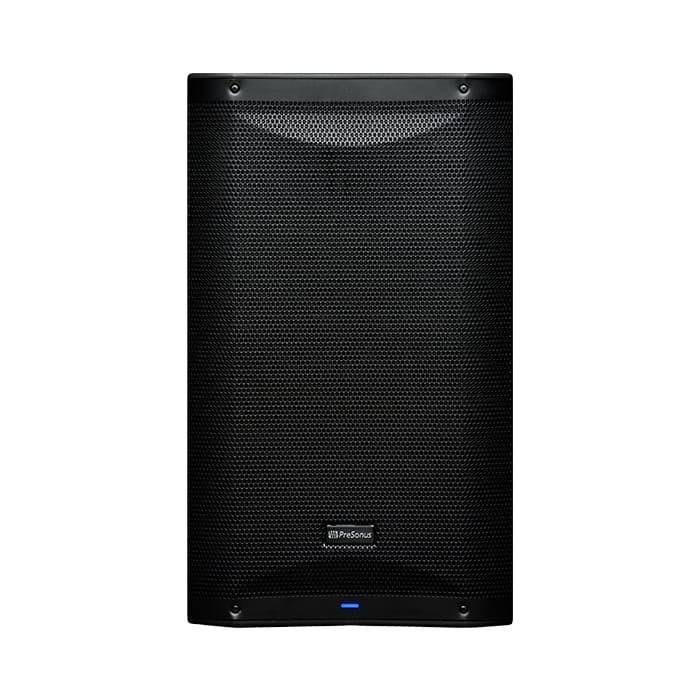

PresonusAir 12 Speaker 2 Way 1X12" Active LS With Dsp
Show all:
Active Speaker,Pro Audio
DescriptionRead moreRead less
Compact and lightweight, AIR12 active loudspeakers provide a rich, extended low-end and natural high-frequency extension in an enclosure that will easily fit in the backseat of a small car. Backed by 1,200W (dynamic) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, the AIR12 gives you all the power and tools you need for both mobile and installed sound.
Features
Main Components
- - Hybrid “best of both worlds” 1,200W (dynamic) power amp configuration:
- - Low-frequency driver: 900W, Class D amplifier
- - High-frequency driver: 300W, Class A/B amplifier
- - Maximum SPL 123 dB peak
- - 1.35-inch, high-frequency compression driver
- - 12-inch woofer with a 2.5-inch voice coil
- - 51 Hz to 20 kHz frequency response
- - 123 dB SPL (max)
- - 90° x 60° (horizontal x vertical) dispersion pattern
- - Onboard mixer with two combo XLR and ¼” inputs and one summed balanced output
Controls
- - Easy-to-use DSP performance presets:
- - DJ—music playback
- - FOH—normal front-of-house o Enhance – enhanced low end for a warmer sound
- - Monitor – optimized for floor wedge placement
- - Speech—applications where speech intelligibility is critical
- - EQ
- - HF response ±10 dB
- - LF response ±10 dB
- - Additional presets and controls:
- - Stand—for mounting on a pole or tripod
- - Bracket - for wall-mount applications
- - Suspend – for suspended applications
Convenience Features

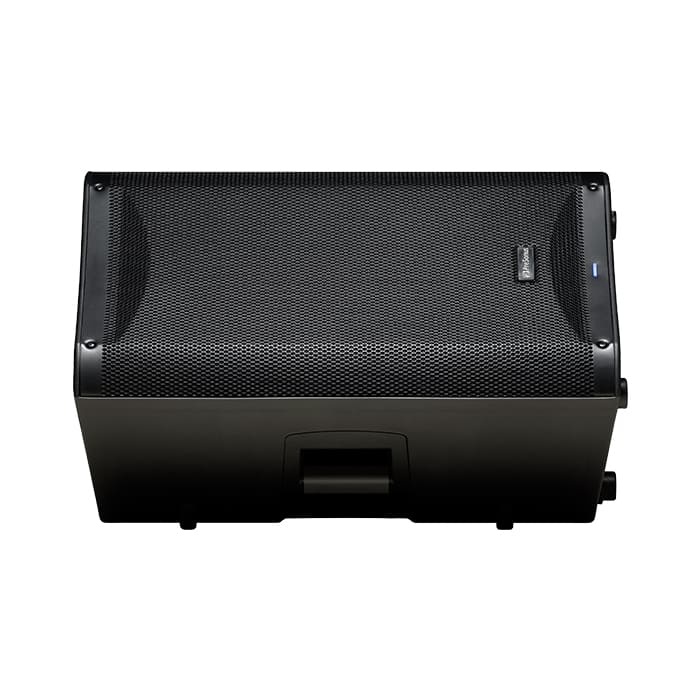

- - Multi-angle enclosure for mains or monitor-wedge applications
- - Comfortable ergonomic handle
- - 35 mm pole socket with 7.5˚ downward tilt
- - M10 rigging points for suspended installation
- - Defeatable front-panel LED
- - Rugged plastic enclosure
- - Tour-grade, 1.2 mm steel grille
SPECIFICATIONS
ACOUSTIC PERFORMANCE
- - Configuration: Active2-way
- - Frequency Range (-3 dB): 51 Hz to 20 kHz
- - Frequency Range (-10 dB): 48 Hz to 20 kHz
- - Crossover Frequency: 1.6 kHz
- - Maximum Output: 123 dB SPL
- - Nominal Dispersion (HxV): 90˚x 60˚

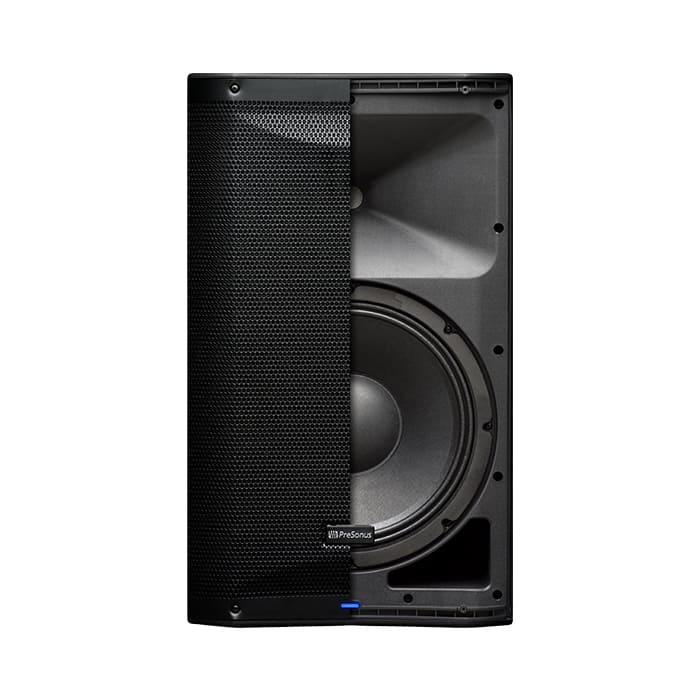

TRANSDUCER
- - LF Driver: 12” (2.5” voice coil)
- - HF Driver: 1.35” compression
AMPLIFIER
- - Amplifier Type: Class D (LF), Class AB (HF)
- - Total System Power: 1,200W dynamic
- - LF Power: 900W
- - HF Power: 300W

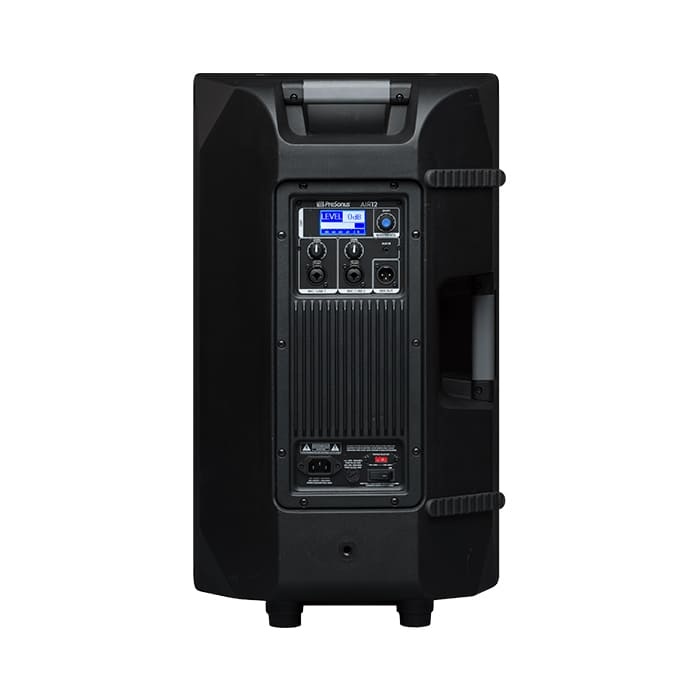

CONNECTIONS AND CONTROLS
- - Inputs: 2 x XLR/TRS mic/line combo; 1 x 1/8” TRS stereo
- - Outputs: 1 x XLR Mix Out
DSP
- - DSP features: LCD screen with EQ and multiple presets
ENCLOSURE
- - Cabinet: H-PP molded
- - Grille: 1.2 mm steel
- - Handles: 1 top, 1 side
- - Flypoints: 2 top, 1 back
- - Pole Mounting: Dual position (0˚, 7.5˚)*
- - Dimensions (H x W x D): 24.4" x 14.2" x 13.8" (619 mm x 360 mm x 351 mm)
- - Weight: 37.5 lbs (17 kg)
POWER
- - Power Input: 115V / 230V ~50/60 switchable
- - Maximum Current: 3.5A (230V-50 Hz), 7A (120V)
