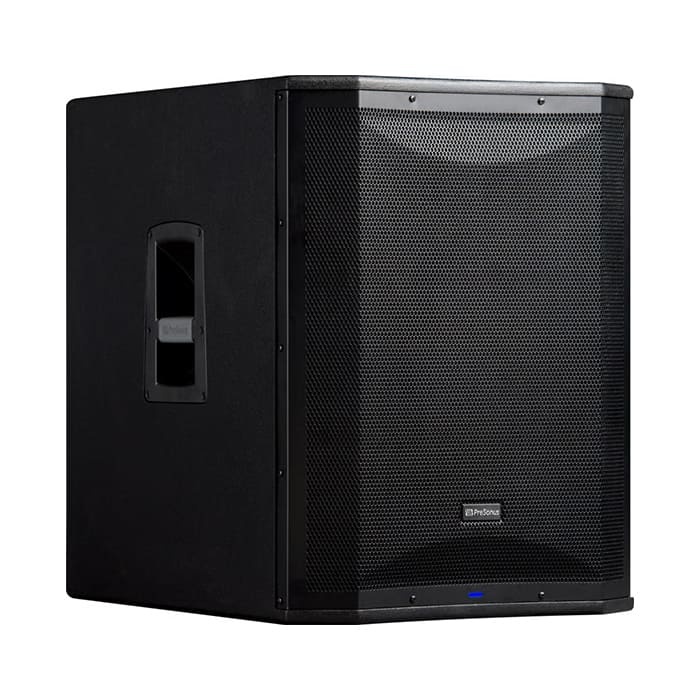

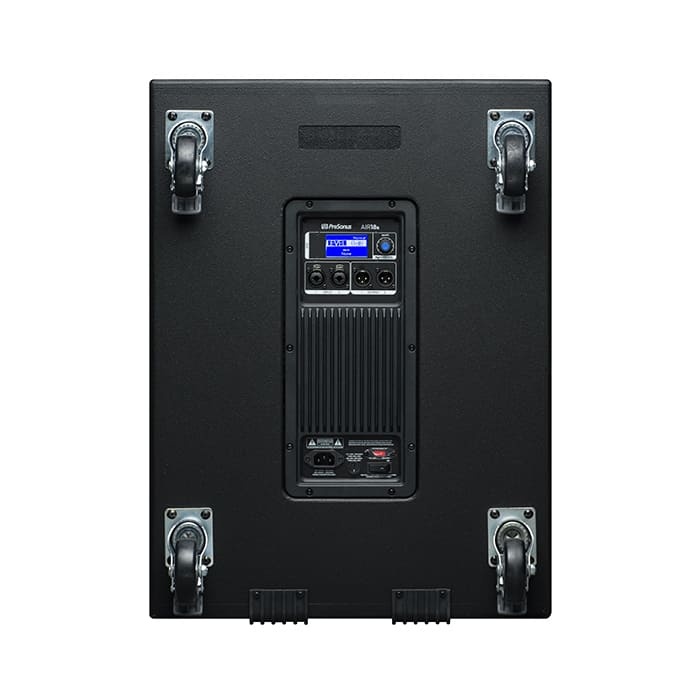

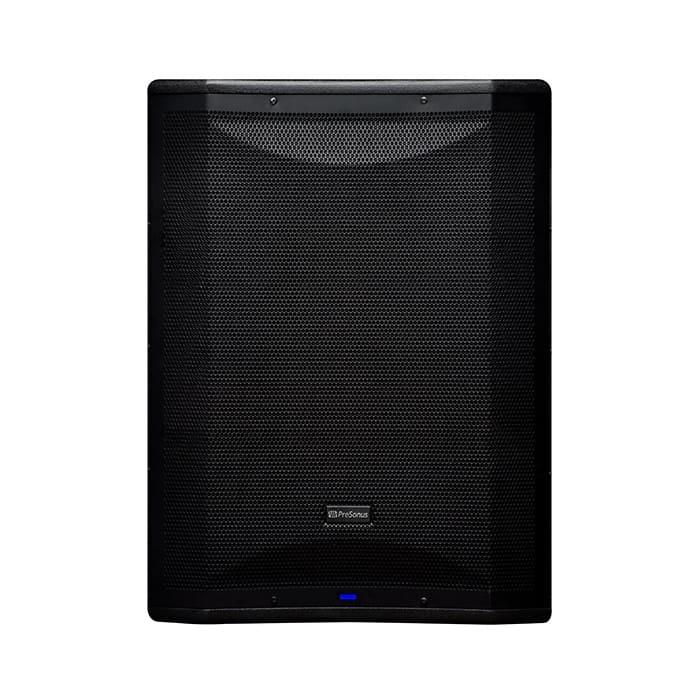

PresonusAir 18S Speaker 1X15" Active Sub With Dsp
Show all:
Sub Woofers,Pro Audio
DescriptionRead moreRead less
The PreSonus® AIR10, AIR12, and AIR15 are ideal partners for the AIR18s subwoofer, which is made to complement any full-range PA loudspeaker and produce a punchy, accurate, and precise low end. It offers plenty of detailed bottom end down to 30 Hz with its 18-inch low-frequency transducer and 1,200 watts of Class D power. However, it is portable and suitable for installed systems and mobile apps.
Features
- - 1,200W (dynamic) Class D power amp

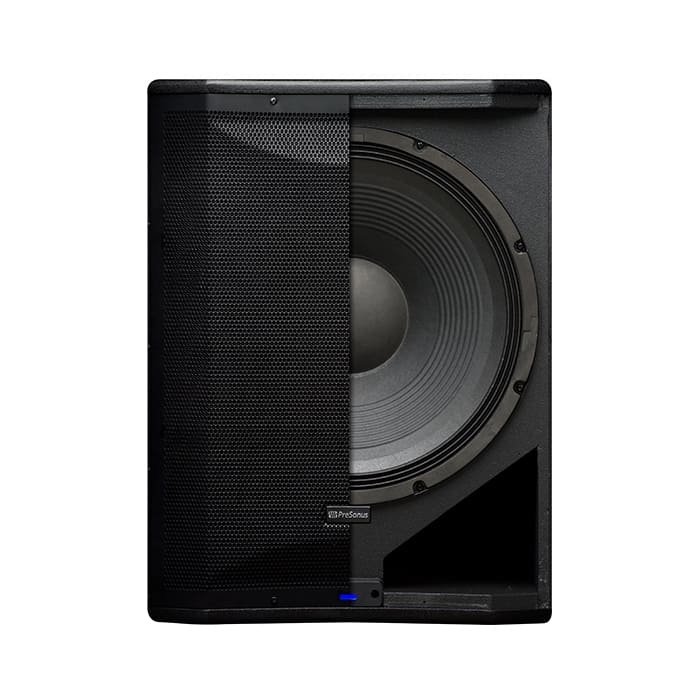

- - 18-inch woofer with a 3-inch voice coil
- - Frequency Response: 30 to 150 Hz
- - Max SPL: 129 dB
- - 2 combo XLR-¼” line inputs and two XLR direct outputs
- - Easy-to-use DSP performance presets:
- - Normal—typical FOH use
- - Mo’ Bass—extended low-end performance
- - Locate—adjusts performance for arrayed and non-arrayed applications
- - Normal – non-arrayed applications
- - Cardioid—create a ground-stacked cardioid subwoofer array (using two of the same model subwoofer)
- - Endfire – create an endfire cardioid subwoofer array (using two of the same model subwoofer)
- - Fully variable lowpass filter (sets the upper frequency limit/crossover point) LP filter presets for use with AIR15, AIR12, and AIR10
- - LP filter presets for use with AIR15, AIR12, and AIR10
- - Alignment delay—adds delay time relative to full-range speaker
- - Polarity—invert the polarity of the summed input signal
- - 2 comfortable ergonomic side handles
- - Ground stack provisions
- - Castor provisions (castor kit included)
- - Defeatable front-panel LED
- - Rugged, texture-painted, birch enclosure
- - Tour-grade, 17 gauge steel grille
SPECIFICATIONS
ACOUSTIC PERFORMANCE
- - Configuration: Active vented design
- - Frequency Range (-3 dB): 30 Hz to 150 Hz
- - Maximum Output: 129 dB SPL
TRANSDUCER
- - LF Driver: 18” (3” voice coil)
AMPLIFIER
- - Amplifier Type: Class D
- - Total System Power: 1,200W dynamic (600W continuous)
CONNECTIONS AND CONTROLS
- - Inputs: 2 x XLR/TRS line combo
- - Outputs: 2 x XLR Link Out
DSP
- - DSP features: LCD screen with EQ and multiple presets
ENCLOSURE
- - Cabinet: 15 mm plywood
- - Grille: 1.5 mm steel
- - Handles: 2 side
- - Mounting: Groundstack provisions
- - Dimensions (H x W x D): 26" x 19.3" x 25.8" (662 mm x 490 mm x 656 mm)
- - Weight: 83.8 lbs (38 kg)
POWER
- - Power Input: 115V / 230V ~50/60 switchable
- - Maximum Current: 5.3A (230V-50 Hz), 10.6A (120V)
