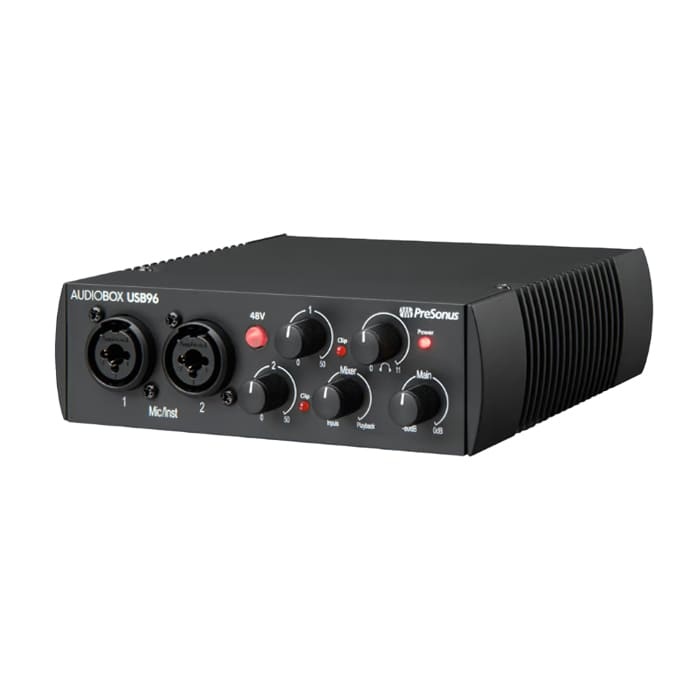

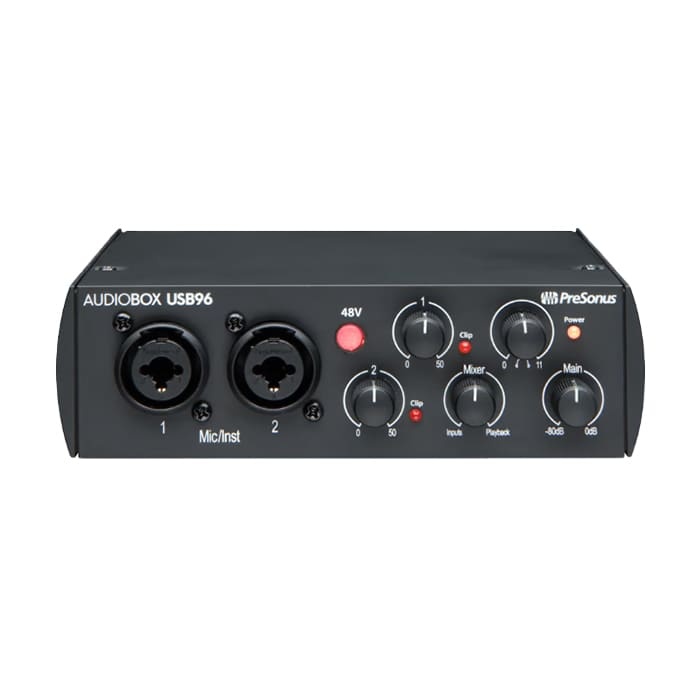

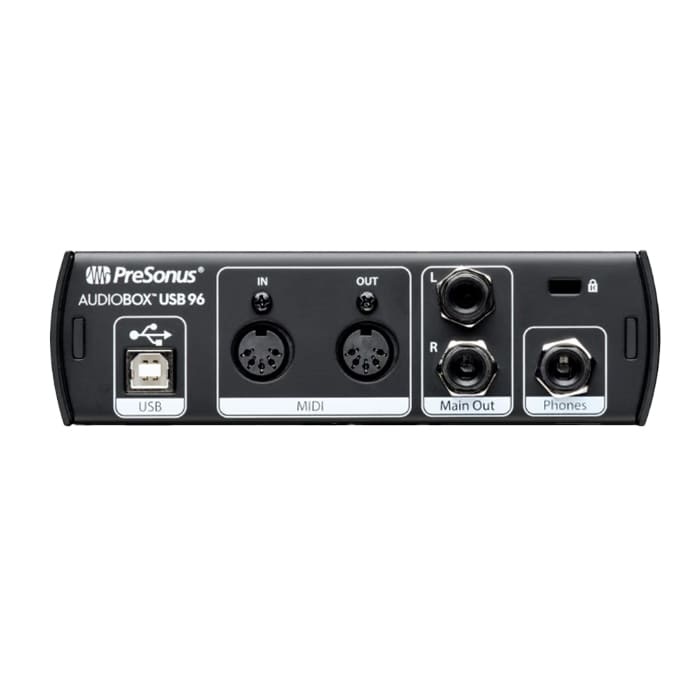

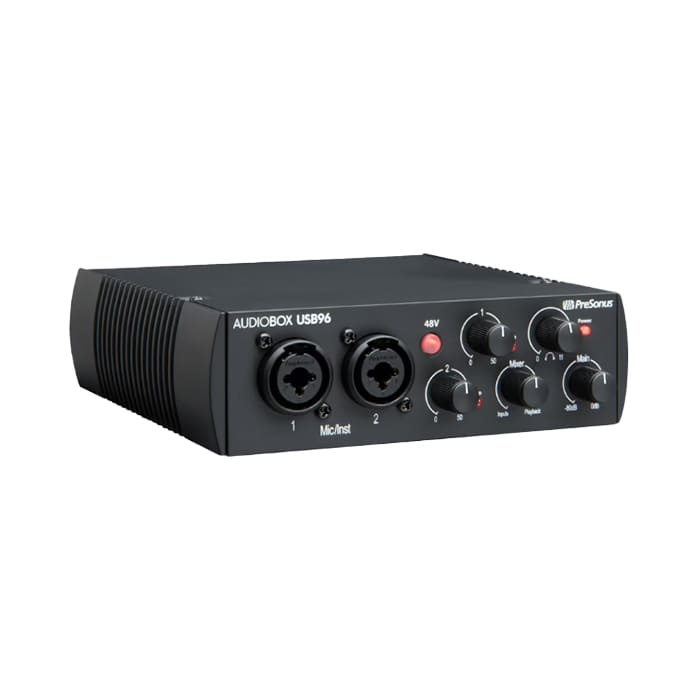

PresonusAudiobox USB 96 2X2 USB 2.0 / 96Khz Audio Interface

SPECIFICATIONS

Computer system requirements

Below are the minimum computer-system requirements for AudioBox USB 96 Studio.

macOS^®

• - macOS^® 10.13 or higher (64-bit only)
• - Intel^® Core™ i3 or better (M1 native compatible)
• - Minimum 4GB RAM / Recommended 8GB or more

Windows^®

• - Windows^® 10 (64-bit only)
• - Intel^® Core™ i3/AMD A10 processor or better
• - Minimum 4GB RAM / Recommended 8GB or more

Mac and Windows Systems

• - USB 2.0 port
• - Internet connection
• - Internal or external 7200 RPM storage drive highly recommended
• - 30 GB hard disk space
• - Monitor with 1366x768 resolution

AUDIOBOX USB 96 SPECIFICATIONS

MICROPHONE PREAMP

• - Type: XLR Female Balanced
• - Frequency Response (±3.0 dB): 20 Hz to 20 kHz
• - Input Impedance (Balanced): 1200Ω
• - THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain): < 0.008%
• - S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz): > 95 dB
• - Common Mode Rejection Ratio (1 kHz, 55 dB Gain): > 45 dB
• - Gain Control Range (± 1 dB): 0 dB to 35 dB
• - Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): -3 dBu
• - Phantom Power (±2 VDC): +48 VDC

INSTRUMENT INPUT

• - Type: 1/4"
• - TRS Female Unbalanced Input Impedance: 0.5 MΩ

LINE OUTPUTS

• - Type: 1/4"
• - Balanced Output Impedance: 51Ω

HEADPHONE OUTPUT

• - Type: ¼" TRS Active Stereo
• - Maximum Output: 60 mW/Ch @ 60Ω Load
• - Frequency Response (±1.0 dB): 20 Hz - 30 kHz

MID I/O

• - Type: Dual 5-pin Female DIN

DIGITAL AUDIO

• - ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
• - DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
• - Bit Depth: 24
• - Reference Level for 0 dBFS: +4 dBu
• - Internal Sample Frequency Selections (kHz): 44.1, 48, 88.2, 96
• - Power: USB 2.0 Bus-powered

PHYSICAL

• - Dimensions: 1/3U (steel chassis)
• - Height: 5.5” (139.7 mm)
• - Depth: 1.75" (44.45 mm)
• - Width: 5.5” (139.7 mm)
• - Weight: 1.4 lbs (0.64 kg)
