PresonusStudio 1810C EU
With the PreSonus® Studio 1810c audio interface, you don’t have to choose between mobility and connectivity. This compact device delivers studio-quality sound and flexible input options on the go. It features four XMAX mic preamps, high-quality instrument preamps, balanced line-level inputs, and an ADAT input to expand with eight additional channels as needed.
The high-quality converters and professional-grade XMAX preamps capture rich musical harmonics without distortion, providing deep lows and smooth highs. Input and output metering help you monitor levels while recording alone. The easy-to-use DSP monitor mixing lets you create four separate mixes for yourself and others, while two output pairs allow for two different stereo mixes. The Cue A/B button makes it easy to toggle between mixes while monitoring through headphones.
The Studio 1810c ensures you're ready to produce professional recordings anywhere, with superior mic preamps and expandable inputs for outstanding results.
FEATURES
- Simultaneous I/O up to 18 inputs/8 outputs (8x6 at 192 kHz)
- 2 mic/instrument/line inputs with XMAX Class A mic preamps
- 2 mic/line inputs with XMAX Class A mic preamps
- 4 balanced ¼-inch TRS direct-to-ADC line inputs
- 8 channels of ADAT Optical input (4 channels at 96 kHz)
- 2 balanced ¼-inch TRS main outputs and 2 balanced ¼-inch TRS line outputs for monitor mixing all DC coupled for sending control voltages
- High-power headphone output
- Stereo S/PDIF digital I/O and MIDI In/Out
- 18x6 onboard DSP monitor mixer
- Front-panel mute and level controls for main outputs
- 6 ladder-style 8-LED level meters (4 input, 2 main output)
- 24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers

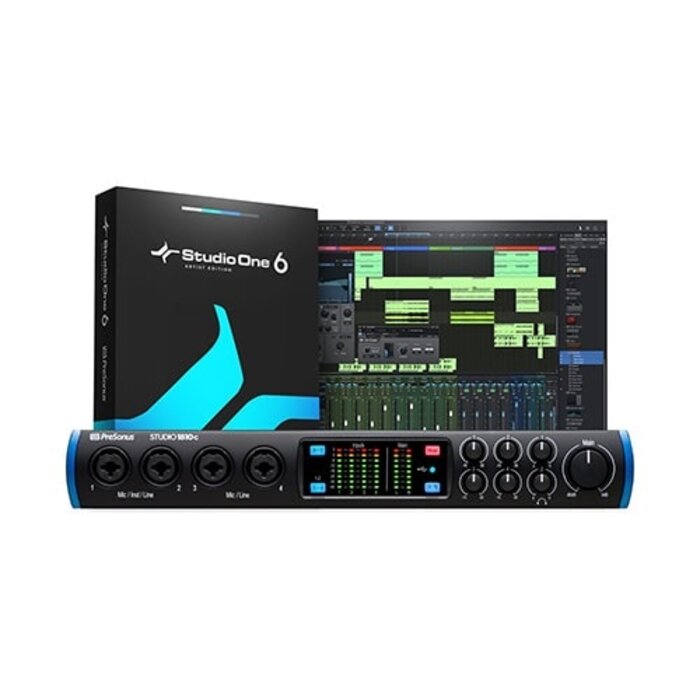

- Includes Studio One Artist®, Studio Magic Software Suite, and Ableton® Live Lite
- Brand: Presonus
- Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Converter Resolution: 24 bit
- ADC Converter Dynamic Range: 114 dB
- DAC Converter Dynamic Range : 114 dB
- Microphone Input Max Level : +16 dBu, min gain
- Microphone Input Gain Range: 80 dB
- Microphone Input Frequency Response: 20 Hz - 20 kHz (unity gain)
- Microphones Input Dynamic Range: 110 dB (A-wtd, min gain)
- Microphone Input THD + N: 0.005% (1 kHz, 0dBu, unity gain)
- Microphone Input EIN: -128 dBu (A-wtd, 20 kHz BW, Rs=150Ω, max gain)
- Microphone Input Impedance: 1400Ω
- Microphone Input Phantom Power: 48V (>10 mA per channel)
- Line Input Max Level: +21 dBu (balanced, min gain)
- Line Input Gain Range: 40 dB
- Line Input Frequency Response: 20 Hz-20 kHz (unity gain)
- Line Input Dynamic Range: 112 dB (A-wtd, min gain)
- Line Input THD + N: 0.005% (1 kHz, +18 dBu, min gain)
- Line Input Impedance: 10 kΩ
- Instrument Input Max Level: +15 dBu (unbalanced, min gain)
- Instrument Input Gain Range: 80 dB
- Instrument Input Frequency Response: 20 Hz - 20 kHz (min gain)
- Instrument Input Dynamic Range: 112 dB (A-wtd, min gain)
- Instrument Input THD + N: 0.020% (1 kHz, +10 dBu, min gain)
- Instrument Input Impedance: 1M Ω
- Main Output Type: ¼" TRS female, DC Coupled
- Main Output Maximum Level: +18 dBu, balanced
- Main Output Frequency Response: 20Hz - 20kHz (unity gain)
- Main Output Dynamic Range: 108 dB (A-wtd, unity gain)
- Main Output THD + N: 0.004% (1 kHz, -1 dBFS, unity gain)
- Line Output Type: ¼" TRS female, DC coupled
- Line Output Maximum Level: +18 dBu, balanced
- Line Output Frequency Response: 20 Hz - 20 kHz
- Line Output Dynamic Range: 108 dB (A-wtd, -60 dBFS)
- Line Output THD + N: 0.004% (1 kHz, -1 dBFS, unity gain)
- Headphone Output Maximum Power: 150 mW/channel (60Ω load)
- Headphone Output Frequency Response: 20 Hz - 20 kHz (unity gain)
- Headphone Output Dynamic Range: 103 dB (A-weighted, 1 kHz, unity gain)
- Headphone Output THD + N: 0.250% (1 kHz, 150 mW, unity gain)
- Headphone Output Impedance Working Range: 32Ω to 600Ω
- Height: 1.75" (44 mm)
- Width: 12.5" (317 mm)
- Depth: 5.5" (140 mm)
- Weight: 3.2 lbs (1.45 kg)
