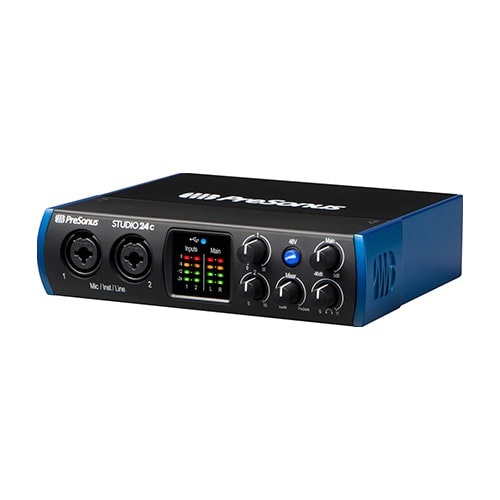

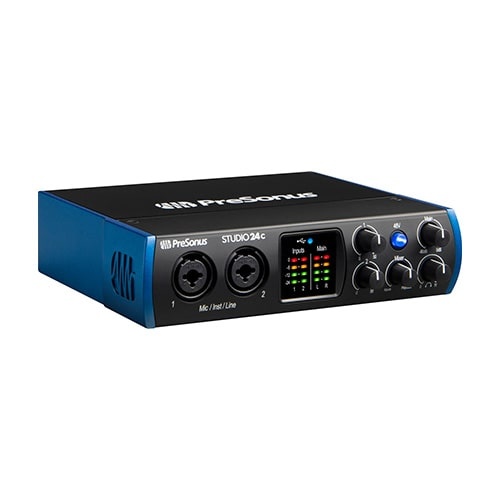

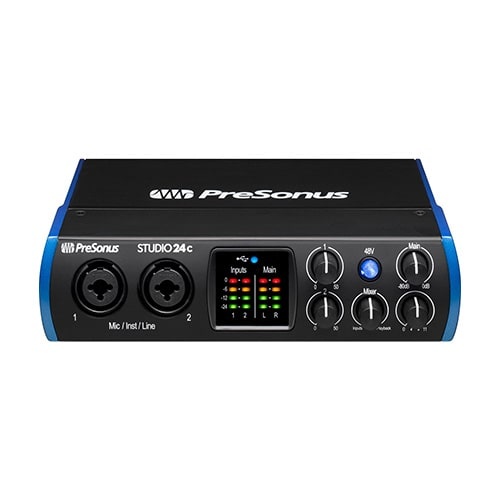

PresonusStudio 24C Interface
The Studio 24c is perfect for recording your first album or podcast, ensuring you sound your best. It features two XMAX-L mic preamps for clear vocal recording and high-headroom instrument preamps for direct guitar or bass connections. With professional input metering, you can easily track your recording levels.
High-quality converters and XMAX-L preamps capture rich musical harmonics smoothly. Input and output metering help you monitor levels when recording alone, while an easy-to-use Mix control lets you blend analog inputs with computer playback for a quick monitor mix.
Whether you’re a beginner or an experienced producer, the Studio 24c offers clear, high-definition sound in a durable, portable unit. It also includes a free license for Studio One® Artist music production software, so you can start recording immediately.
FEATURES
- Simultaneous I/O up to 2 inputs/2 outputs
- 2 mic/instrument/line inputs with XMAX-L mic preamps
- 2 balanced ¼-inch TRS main outputs to connect professional studio monitors
- High-power headphone output

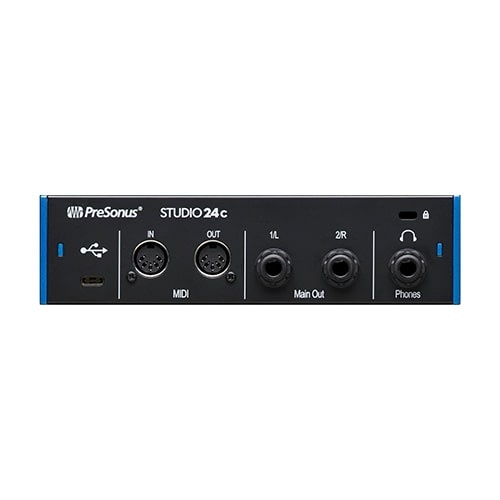

- MIDI In/Out
- Mixer knob for low-latency direct input monitoring
- Front-panel level controls for main outputs

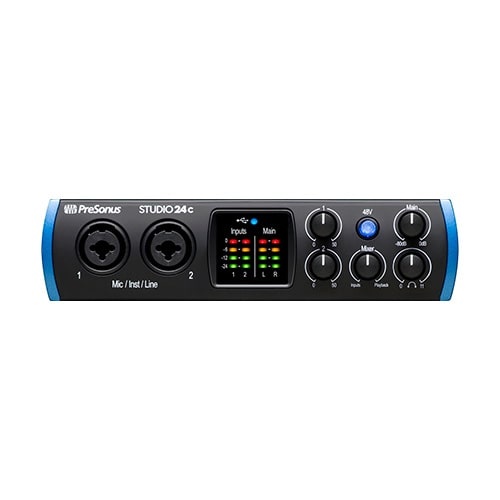

- 4 ladder-style LED level meters (2 input, 2 main output)
- 24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
- Includes Studio One Artist® and the Studio Magic Software Suite
- Brand: Presonus
- Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, or 192 kHz
- Converter Resolution: 24 bit
- ADC Converter Dynamic Range: 108 dB
- DAC Converter Dynamic Range : 108 dB
- Microphone Input Max Level : +10 dBu (±0.5 dBu, min gain)
- Microphone Input Gain Range: 50 dB
- Microphone Input Frequency Response: 20 Hz - 20 kHz (±0.3 dBu, unity gain, unwtd)
- Microphones Input Dynamic Range: 106 dB (A-wtd, min gain)
- Microphone Input THD + N: 0.004% (1 kHz, -1 dBFS, min gain)
- Microphone Input EIN: -126 dBu (A-weighted, 150Ω, max gain)
- Microphone Input Impedance: 1.4 kΩ
- Microphone Input Phantom Power: +48 VDC (10 mA total)
- Instrument Input Max Level: +19 dBu (min gain)
- Instrument Input Gain Range: 50 dB
- Instrument Input Frequency Response: 20 Hz – 20 kHz (±0.1 dBu, unity gain, unwtd)
- Instrument Input Dynamic Range: 105 dB (A-wtd, unity gain)
- Instrument Input THD + N: 0.002% (1 kHz, min gain)
- Instrument Input Impedance: 750 kΩ
- Main Output Type: ¼" TRS, Female
- Main Output Maximum Level: +10 dBu (1 kHz, unity gain, balanced)
- Main Output Frequency Response: 20 Hz – 20 kHz (±0.3 dBu, unity gain, unwtd)
- Main Output Dynamic Range: 104 dB (unity gain, unwtd)
- Main Output THD + N: 0.001% ( 1 kHz, -1 dBFS, unity gain)
- Headphone Output Maximum Power: 47 mW / channel @ 56Ω
- Headphone Output Frequency Response: 20 Hz – 20 kHz (±0.5 dBu, unity gain, unwtd)
- Headphone Output Dynamic Range: 83 dB (A-wtd, 56Ω load)
- Headphone Output THD + N: 0.01% (1 kHz, 0 dBFS, loaded)
- Headphone Output Impedance Working Range: 32Ω to 300Ω
- Height: 1.75" (44 mm)
- Width: 7 "(180 mm)
- Depth: 5.5 "(144 mm)
- Weight: 2 lbs. (0.9 kg)
