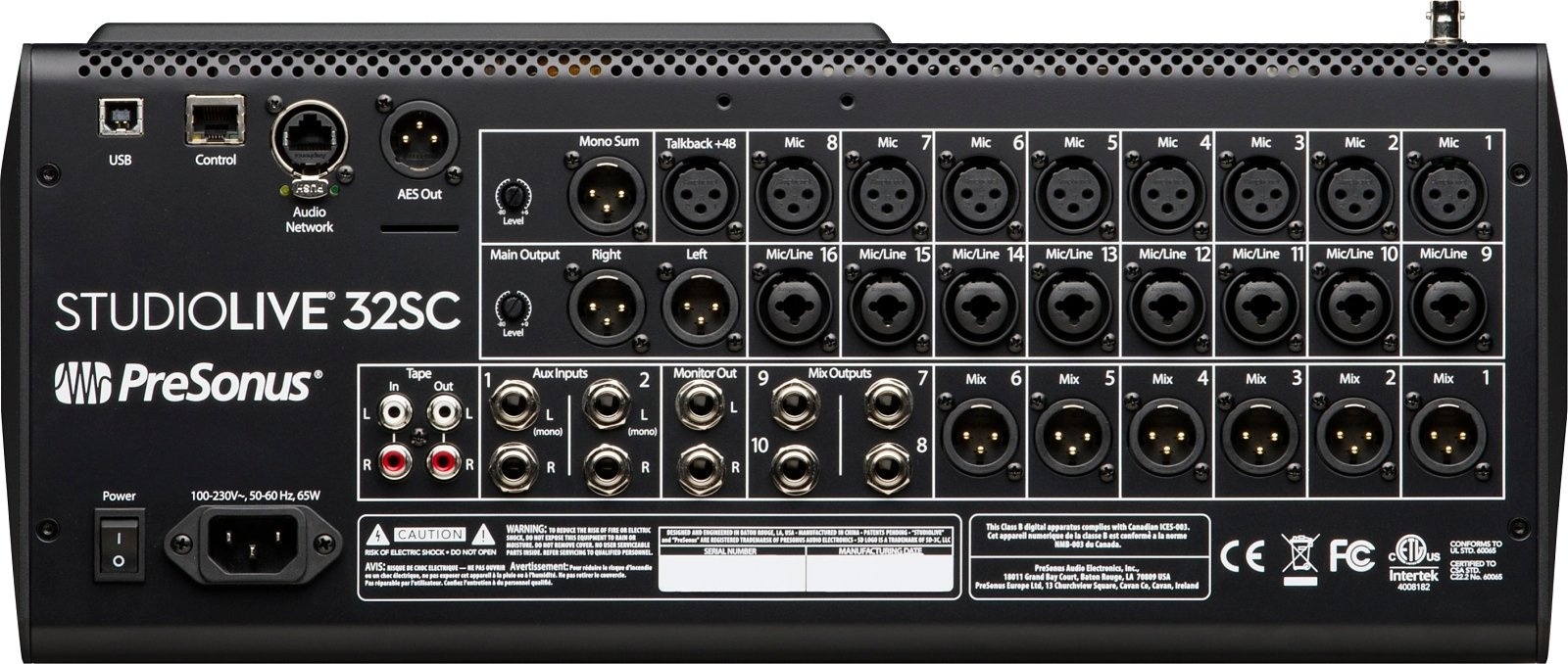

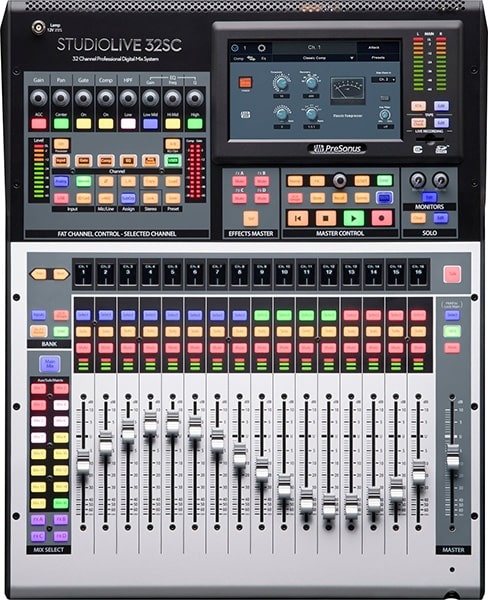

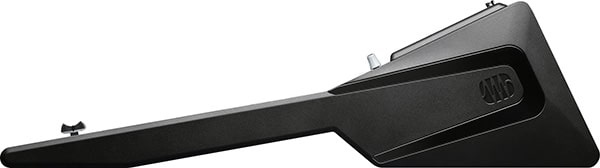

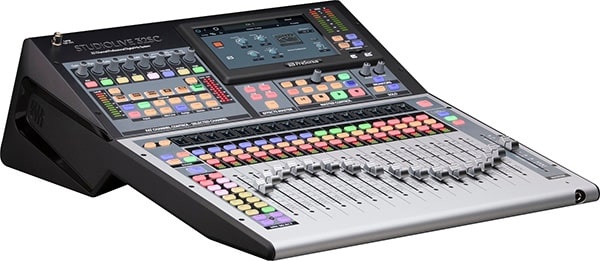

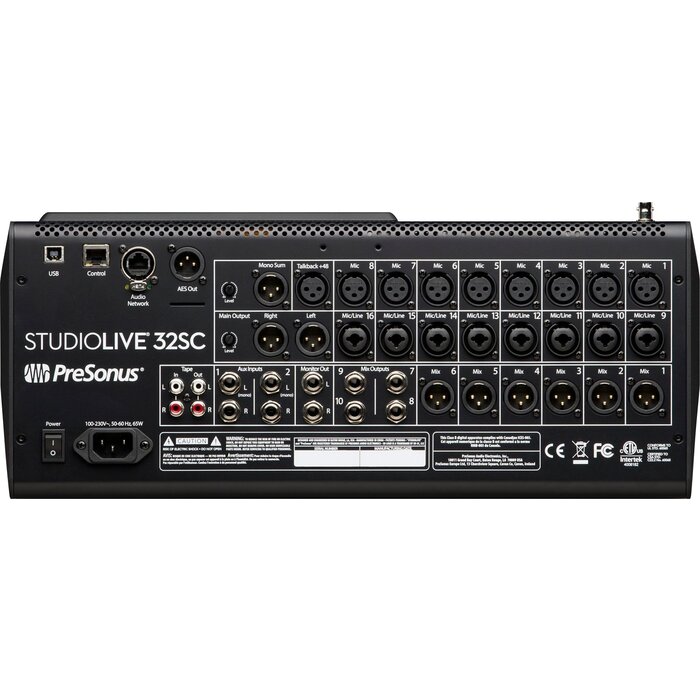

The StudioLive 32SC is a rack-mountable, portable digital mixer with 32 channels that is powerful enough to rival its larger brothers—especially when you take into account its affordable pricing. It's easily extendable using AVB - it can easily network with PreSonus NSB-series stage boxes for extra inputs and EarMix 16M personal monitor mixers for personalized onstage mixes. The 16 FlexMixes on the 32SC can be set up separately to operate as matrix mixes, aux busses, or subgroups; the routing possibilities are virtually endless. Every input channel and output bus in the Fat Channel processing section has access to expanded plug-in choices featuring traditional compression and vintage-style EQ.
PreSonus Capture® recording software, which you can use on your Mac or Windows computer or mixer directly, is also included with the 32SC. For the ideal redundant live recording setup, record to an SD card, USB, or both, along with your preferred stereo mix.
FEATURES
- Portable, rack-mountable, and flexible digital console for installed sound, mobile, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
- Fully recallable 32-channel digital mixing console
- Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
- Built-in 128-channel (64x64) USB interface - the most of any mixer
- Onboard multitrack SD Card recorder with true Virtual Soundcheck
- 16 FlexMixes (aux mixes, subgroups, or matrix mixes)
- FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
- Complete professional solution: suite of integrated software, including Studio One® Artist DAW and Capture®
SPECIFICATIONS
| MICROPHONE PREAMP | LINE INPUTS | |||
| Total Harmonic Distortion | <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted | Line Inputs Maximum Level | =+18 dBu | |
| Signal To Noise Ratio | 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) | Line Inputs Frequency Response | 20-20 kHz (±0.5 dBu at Unity Gain) | |
| Common Mode Rejection Ratio | 65 dB (1 kHz at Unity Gain) | Line Inputs Total Harmonic Distortion | <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted | |
| Gain Control Range | 0 dB to 60 dB (±1 dB) | Line Inputs Impedance | 10 kΩ | |
| Microphone Preamp Maximum Input Level | =+12 dBu (Unity Gain) | |||
| Phantom Power | +48 VDC (±2 VDC) | |||
| Frequency Response | 20-20 kHz (±0.5 dBu at Unity Gain) | |||
| Microphone Preamp Input Impedance | 1 kΩ | |||
| HEADPHONE OUTPUTS | DIGITAL AUDIO | |||
| Headphone Outputs Maximum Output | 100 mW/ch. @ 60Ω load | Digital Audio Dynamic Range | ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz) | |
| Frequency Response | 20 Hz to 20 kHz, +/-0.5 dB | Digital Audio Bit Depth | 24 | |
| Total Harmonic Distortion | 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted | Supported Sample Rates | 48 kHz, 44.1 kHz | |
| ELECTRONICS | MISCELLANEOUS | |||
| Voltage | 100-120V | Connection Type | IEC | |
| Headphone Jack | 1/4" TRS Active Stereo | |||
