PresonusUSB Microphone With Dsp

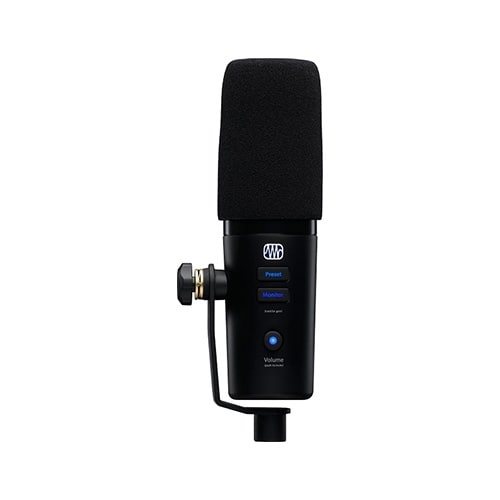

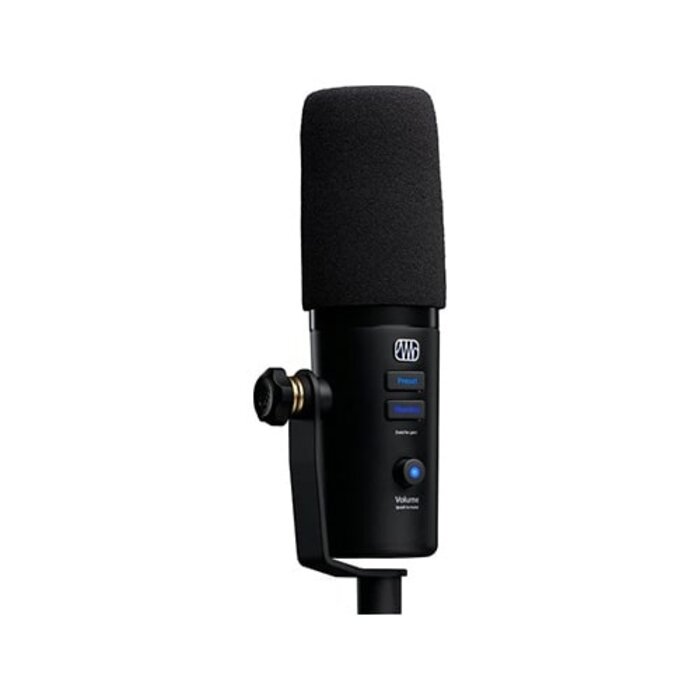

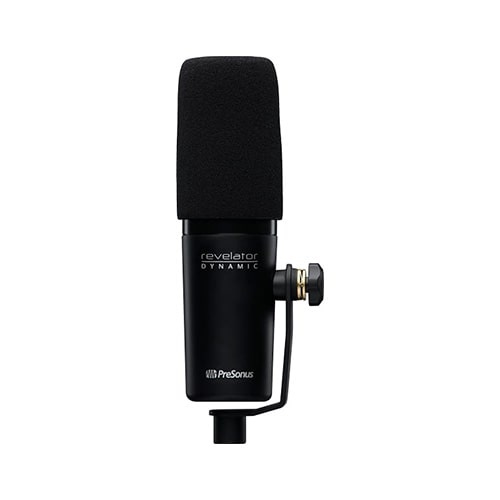

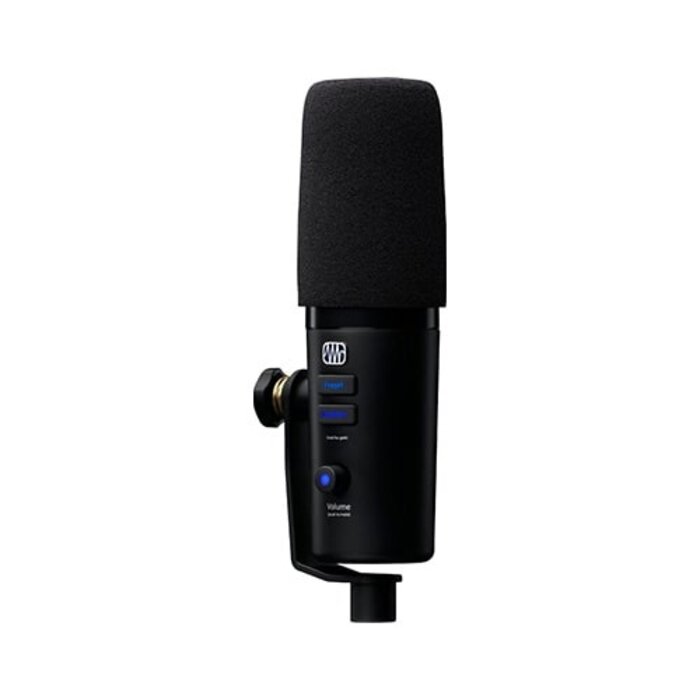

The Revelator Dynamic USB microphone offers the clarity and warmth of the PD-70 mic, with customizable presets to enhance your voice. It features a built-in mixer for blending your voice with backing tracks, Zoom calls, or gameplay audio, making it perfect for streaming, podcasting, or monitoring.
Its custom capsule captures your voice clearly, reducing handling noise and breathiness, while superior off-axis rejection minimizes unwanted sounds like echoes or background noise. With eight pro-level presets, your voice sounds polished from the start, and you can record fully processed audio to save time in editing.
The simple monitor control allows easy adjustments for a clear performance, letting you hear the polished sound of your vocals in real-time.
FEATURES
- Professional bus-powered USB-C®-compatible dynamic microphone for vocal recording, podcasting, streaming, vlogging, gaming, and more
- Designed for your voice:Â Custom-designed dynamic microphone capsule provides vocal clarity and superior off-axis rejection
- Professional sound made easy:Â Professionally crafted Presets make you sound like a pro with a single click. You can also create your own custom presets to share, save, or produce on the go.
- Customizable mixes:Â Integrated mixer with two dedicated loopback audio channels to add backing tracks, Skype calls, gameplay audio, and more!
- Onboard processing: Effects processing lets you polish your sound with reverb, compression, EQ, and fantastic Voice FX — all built into Revelator Dynamic
- Bus-Powered: Revelator Dynamic is powered by your connected USB-C device so no need for an additional power supply – works great with both Apple and Android devices.

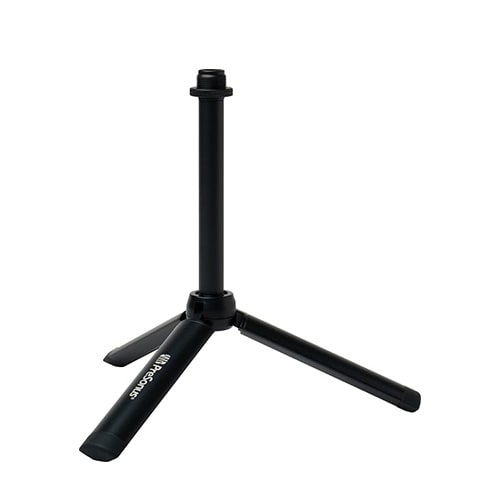

- Desktop stand included:Â PTS-1 extendable desktop mic stand included
- Loud and clear:Â Headphone output with volume control and zero-latency monitoring
- Studio-quality sound:Â 96 kHz / 24-bit operation for pristine audio recording
- Recording Software included:Â Complete recording solution featuring Studio One Artist DAW recording software and Studio Magic software bundle including music tutorials, tons of sound samples and virtual instruments.
- macOS® and Windows® compatible
- iOS® and iPadOS® compatible (may require a Camera Connection Kit)
- Chromebook compatible
SPECIFICATIONS
| Microphone | |
| Type | Mono Condenser |
| Polar Patter | Cardioid, Bi-directional (Figure 8), Omnidirectional |
| Frequency Response (±3.0 dB) | 20 Hz to 20 kHz |
| Sensitivity | 1mV/Pa |
| Max SPL | 110 dB <3% THD |
| Headphone Output | |
| Type | 1/8" TRS active stereo |
| Power Output (RMS) | 22.6 mW (16Ω) |
| THD | 0.008% |
| Frequency Response | 20 Hz to 20 kHz |
| Impedance | 16Ω |
| Dynamic Range | 77.5 dB |
| Audio Interface | |
| Type | USB-C™ compatible USB 2.0 |
| Sample Rate | 44.1, 48, 88.2, and 96 kHz (Note: 44.1 and 48 kHz only on macOS while in Multi Mode) |
| Bit Depth | 24-bit |
| Power | USB Bus Power |
| Hardware Controls | Direct Monitor, Mic Gain, Headphone Level, Mute, Preset Select |
| Software Controls | Mic Gain, Pattern Select, Monitor Mix, Preset Management |
| Onboard DSP | PreSonus Fat Channel: High Pass Filter, Noise Gate, 3 Compressor models, 3 EQ models, and Limiter Voice Effects: Comb Filter, Delay, Doubler, Ring Modulator, Vocoder Reverb |
| Physical | |
| Dimensions (HxWxD) | 8.875" x 5.125" x 5.125" (225 x 130 x 130 mm) |
| Weight | 1.6 lbs. (0.73 kg) |
