RC-505 MK2 Loop Station
Show all:
Looper,Guitar Pedals
Description
Read moreRead less
The most widely used tabletop looper in the world now has next-generation power and flexibility thanks to the RC-505mkII. Five stereo tracks, four simultaneous Input FXs, and four simultaneous Track FXs will elevate your performances. Customizable buttons, extended I/O, improved mixing control, and other improvements long-time RC-505 users wanted will take your performances even higher. The RC-505mkII is a looping dream machine for beatboxers, vocalists, multi-instrumentalists, and other brave looping artists since it was designed for free-flowing creativity on stage and in the studio.
Features
- - The industry-standard tabletop looper, updated and enhanced
- - Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
- - Five simultaneous stereo phrase tracks with dedicated controls and independent volume faders
- - Input FX and Track FX sections, each with four simultaneous effects and four quick-access banks
- - Customizable FX and Track buttons for each phrase track
- - Massive onboard effects selection with 49 Input FX types and 53 Track FX types, including new Harmony, Electric FX, and many others
- - New ultra-durable faders with longer throw for more precise adjustment
- - Newly added Mark Back function provides enhanced undo/redo flexibility while performing
- - Two XLR mic inputs with phantom power, two stereo line input pairs, and three stereo line output pairs
- - 99 memories, each containing five phrase tracks, custom effects and playback settings, control assignments, and more
- - Synchronize your loops with over 200 onboard rhythm patterns and 16 drum kits
- - Deep MIDI control support
- - Two external control jacks, each with support for up to two footswitches or an expression pedal
- - USB for data backup, phrase import/export with BOSS Tone Studio, and pattern import with the RC Rhythm Converter
SPECIFICATIONS
Sampling Frequency | 44.1 kHz |
AD/DA Conversion | 32 bits |
Processing | 32-Bit floating point |
Recording/Playback | Number of Tracks :5 |
Data Format: WAV (44.1 kHz, 32-bit float, stereo) | |
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories) | |
Rhythm Type | 200 types or greater |
Rhythm Kit | 16 types |
Effect | INPUT FX: 49 types |
TRACK FX: 53 types | |
MASTER FX: 2 types | |
Memory | 99 |
Nominal Input Level | MIC 1, 2 INPUT: -40 dBu |
INST 1, 2 INPUT: -10 dBu | |
Maximum Input Level | MIC 1, 2 INPUT: 0 dBu |
INST 1, 2 INPUT: +7 dBu/+20 dBu (selectable) | |
Input impedance | MIC 1, 2 INPUT: 3k ohms |
INST 1, 2 INPUT: 1 M ohms/25 k ohms (selectable) | |
Nominal Output Level | MAIN OUTPUT: -10 dBu |
SUB 1, 2 OUTPUT: -10 dBu | |
Maximum Output Level | MAIN OUTPUT: +7 dBu |
SUB 1, 2 OUTPUT: +7 dBu | |
Output Impedance | MAIN OUTPUT: 1 k ohm |
SUB 1, 2 OUTPUT: 1 k ohm | |
Recommended Load Impedance | MAIN OUTPUT: 10 k ohms or greater SUB 1, 2 OUTPUT: 10 k ohms or greater |

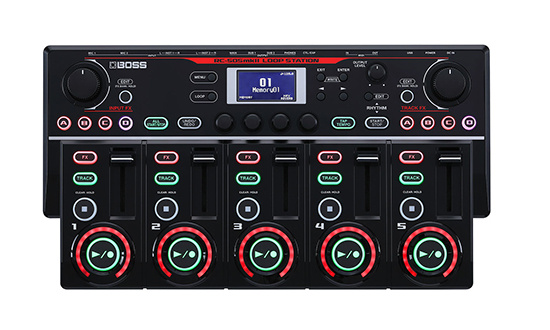

Controls | TRACK1--5 REC/PLAY button, TRACK1--5 STOP button, TRACK1--5 TRACK button, TRACK1--5 FX button, ALL START/STOP button, UNDO/REDO button, TAP TEMPO button, RHYTHM START/STOP button, RHYTHM EDIT button, INPUT FX A--D button, INPUT FX EDIT button, TRACK FX A--D button, TRACK FX EDIT button, MENU button, LOOP button, ENTER button, EXIT button, PAGE buttons, 1--4 knobs, OUTPUT LEVEL knob, TRACK1--5 LEVEL Faders |
Display | Graphic LCD (128 x 64 dots, backlit LCD) |

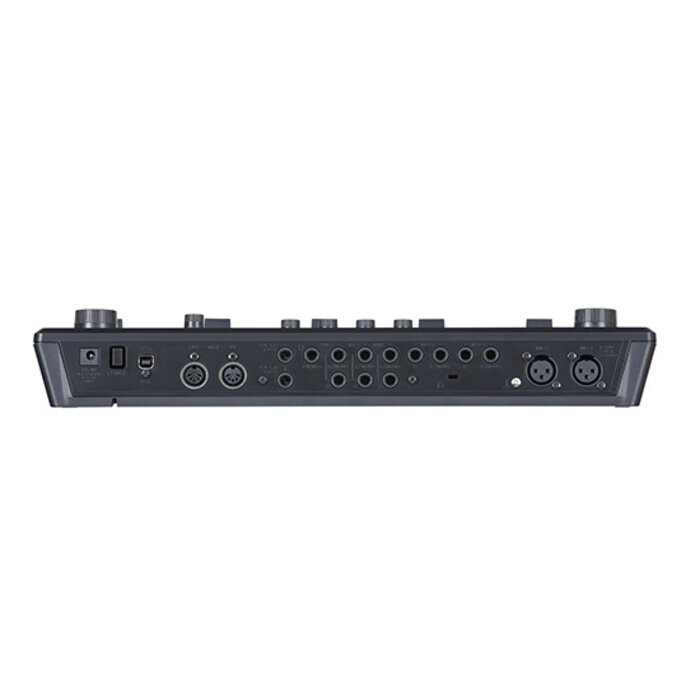

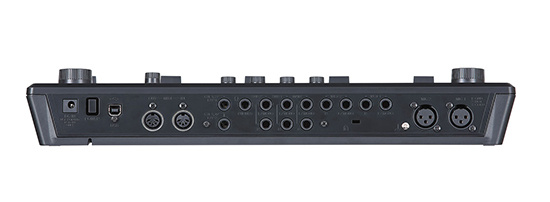

Connectors | MIC IN 1, 2 jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max INST IN 1, 2 jacks, MAIN OUT jacks, SUB OUT 1, 2 jacks: 1/4-inch phone type PHONES jack: Stereo 1/4-inch phone type CTL1,2/EXP1 jack, CTL3,4/EXP2 jack: 1/4-inch TRS phone type USB port: USB B type MIDI (IN, OUT) connectors DC IN jack |
Power Supply | AC adaptor |
Current Draw | 1.0 A (with phantom power) 0.9 A (without phantom power) |
Accessories | AC adaptor Owner's Manual Leaflet "USING THE UNIT SAFELY" |
Options (sold separately) | Footswitch: FS-5U Dual Footswitch: FS-6, FS-7 Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5 |
SIZE AND WEIGHT | |
Width | 420 mm | 16- 9/16 inches |
Depth | 234 mm | 9-1/4 inches |
Height | 67 mm | 2-11/16 inches |
Weight | 1.8 kg | 4 lbs |
