RolandAC33 Acoustic Guitar Amplifier
Show all:
Combo Amps,Combo Amps
DescriptionRead moreRead less
The AC-33 is the first battery-powered amp designed exclusively for acoustic guitar in the world. The AC-33 offers real stereo sound, guitar and mic/line channels, custom-tailored effects, anti-feedback, and a phrase looper while remaining portable and powerful. However, this amplifier was designed to travel uncharted territory. The AC-33's battery-powered capacity enables you to perform anywhere, including on the streets, in the forests, or wherever your creativity takes you.
Features
- - 30 watts (15W+15W) of natural, stereo acoustic sound through twin speakers
- - Runs on AC power or eight AA batteries (accepts rechargeable NiMH types)
- - Dual-channel configuration: Guitar and Mic/Line channel
- - Reverb, chorus, and ambiance effects (Ambience adds spatial, 3D-type depth to the sound)
- - Phrase Looper with 40 seconds of record time
- - Stereo AUX input (connect MP3/CD players, etc), headphone output
- - Anti-feedback function

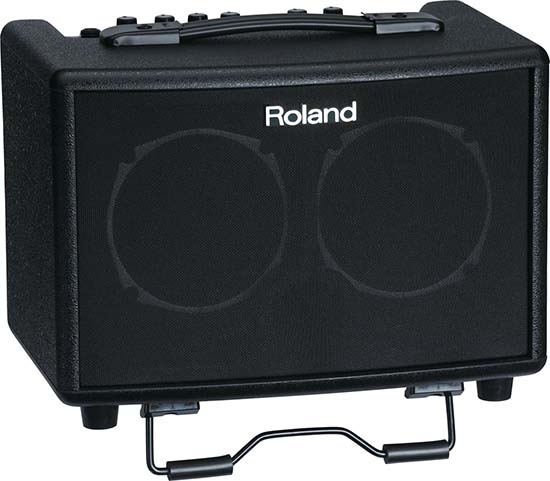

- - Built-in tilt-back stand

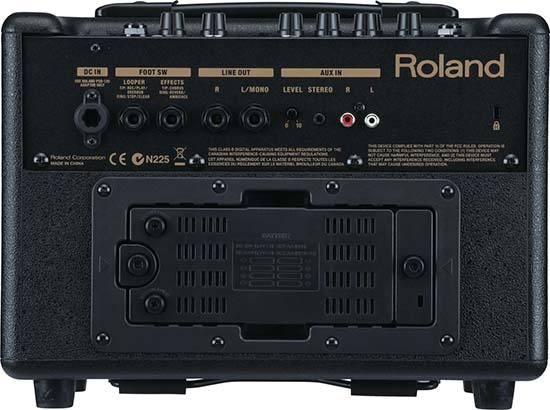

- - Removable battery cartridge for easy battery replacement
- - Now available in rosewood finish (model # AC-33-RW)
SPECIFICATIONS
RATED POWER OUTPUT
- - 15 W + 15 W (when using the AC adaptor)
- - 10 W + 10 W (when using the Alkaline batteries)
NOMINAL INPUT LEVEL (1 kHz)
- - GUITAR Channel: -10 dBu
- - MIC/LINE Channel: -50 dBu/-20 dBu
- - AUX IN: -10 dBu
NOMINAL OUTPUT LEVEL (1 kHz)
- - LINE OUT: -10 dBu

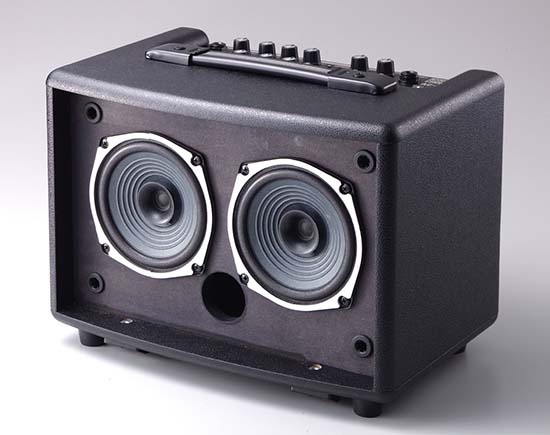

SPEAKERS
- - 12 cm (5 inches) x 2

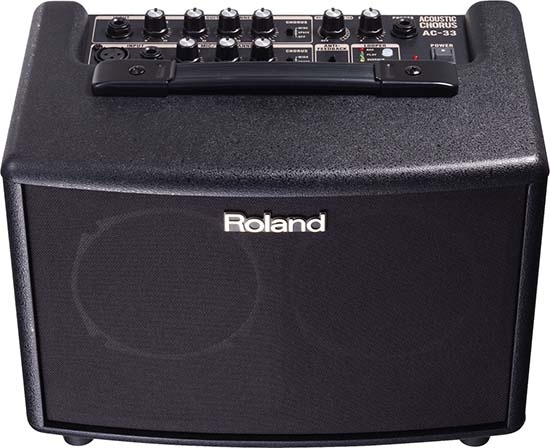

CONTROLS
- - [GUITAR Channel]
- - VOLUME Knob
- - BASS Knob
- - MIDDLE Knob
- - TREBLE Knob
- - CHORUS Switch (OFF, SPACE, WIDE)
- - [MIC/LINE Channel]
- - VOLUME Knob
- - BASS Knob
- - TREBLE Knob
- - CHORUS Switch (OFF, SPACE, WIDE)
- - [REVERB/AMBIENCE]
- - REVERB/AMBIENCE Knob
- - [ANTI-FEEDBACK]
- - ON/OFF Switch
- - [LOOPER]
- - REC/PLAY/OVERDUB Button
- - STOP/CLEAR Button
- - [AUX IN Controls]
- - LEVEL Knob
- - MASTER Knob
- - POWER Switch
INDICATORS
- - REC, PLAY, OVERDUB
- - POWER
CONNECTORS
- - GUITAR Channel Input Jack (1/4-inch phone type)
- - MIC/LINE Channel Input Jacks
- - (XLR type, Balanced)
- - (1/4-inch TRS phone type, Balanced)
- - AUX IN Jacks
- - L, R (RCA phono type)
- - (Stereo miniature phone type)
- - LINE OUT Jacks L (MONO), R (1/4-inch phone type)
- - PHONES Jack (Stereo 1/4-inch phone type)
- - FOOT SW Jack [EFFECTS] (TIP: CHORUS, RING: REVERB/AMBIENCE) (1/4-inch TRS phone type)
- - FOOT SW Jack [LOOPER] (TIP: REC/PLAY/OVERDUB, RING: STOP/CLEAR) (1/4-inch TRS phone type)
- - DC IN Jack
POWER SUPPLY
- - AC Adaptor (included, DC 13 V),
- - Dry battery LR6 (AA) type (alkaline) x 8, or
- - Rechargeable Ni-MH battery (AA, HR6) type x 8
CURRENT DRAW
- - 490 mA
EXPECTED BATTERY LIFE UNDER CONTINUOUS USE
- - Alkaline battery: Approx. 8 hours
- - Rechargeable Ni-MH battery (AA, HR6): Approx. 9 hours
- - These figures will vary depending on the actual conditions of use
ACCESSORIES
- - Owner’s Manual, AC Adaptor, AC Cord
OPTIONS (SOLD SEPARATELY)
- - Footswitch: BOSS FS-5U, Dual Footswitch: BOSS FS-6, FS-7
SIZE AND WEIGHT (EXCLUDING BATTERIES)
- - Width: 318 mm l 12-9/16 inches
- - Depth: 223 mm l 8-13/16 inches
- - Height: 243 mm l 9-5/8 inches
- - Weight: 4.7 kg l 10 lbs 6 oz
