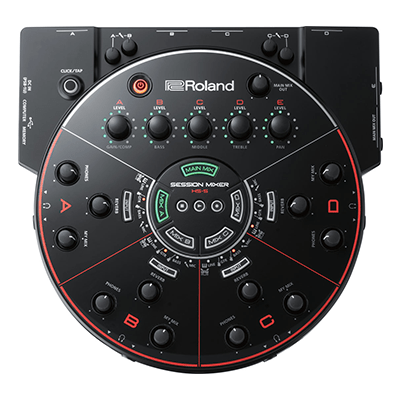

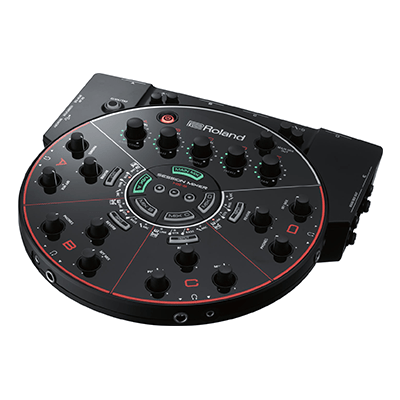

The HS-5 lets up to five musicians rehearse, jam, and record while using headphones. Each player can control their own mix and access reverb and COSM effects for guitar, bass, and vocals. Bands can record in stereo directly to a USB drive or connect to a computer to record individual tracks in a DAW. Musicians can also save their personal settings for quick setup during future sessions.
FEATURES
- Performer-friendly digital mixer with high-quality sound and USB
- Up to five musicians can rehearse or jam while monitoring with headphones
- Independent control of the monitor mix for each performer
- COSM amp modeling plus vocal effects and built-in reverb
- Record stereo mixes to a USB thumb drive
- Connect to a computer via USB for multitrack recording in a DAW
SPECIFICATIONS
| Processing | |
| Sampling Frequency | 44.1 kHz |
| Signal Processing | AD/DA conversion: 24 bits |
| Recorder | |
| Tracks | 2 tracks (stereo) |
| Recording Mode | USB flash drive: WAV (44.1 kHz ,16 bits) |
| Recording Media | USB flash drive (512 MB – 32 GB) |
| Recording Time (unit: hour) | 2 GB: 3 4 GB: 6 8 GB: 12 16 GB: 24 32 GB: 48 Each recording time is approximate. The times may change depending on the card specifications. In case that there are plural files, the sum of recording time would be shorter than above. Maximum recording time of one song is 200 minutes. |
| Recording Songs | Up to 512 songs on a single USB flash drive |
| Effects | |
| Guitar | Preamp: 10 types |
| Bass | Preamp: 5 types |
| Vocal | Compressor, Equalizer, Delay Reverb: 5 types |
| Input / Output | |

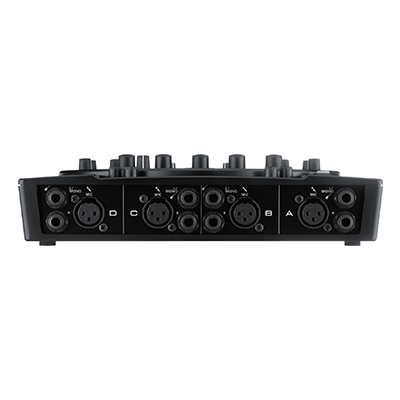

| Audio Input | Section A–D = MIC jacks: XLR type (balanced), INPUT L/R jacks: 1/4-inch phone type (unbalanced) *1 Section E = INPUT L/R jacks: 1/4-inch phone type (unbalanced), Stereo miniature phone type *1 INPUT L jack supports high impedance |

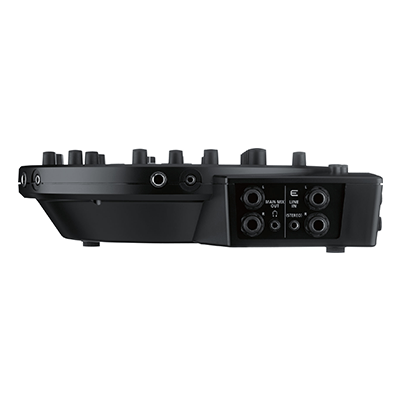

| Audio Output | Section A–D = PHONES jacks: Stereo 1/4-inch phone type, Stereo miniature phone type MAIN MIX OUT = PHONES jacks: Stereo miniature phone type, OUTPUT L/R jacks: 1/4-inch phone type (unbalanced) |
| Frequency Response | 20 Hz–20 kHz (+0 dB/-2 dB) |
| Nominal Input Level | Section A–D = MIC jacks: -61–-13 dBu, INPUT L/R jacks: +4 dBu (Hi-Z ON: INPUT L = -5 dBu) Section E = INPUT L/R jacks: +4 dBu, Stereo miniature phone type: -10 dBu |
| Nominal Output Level | Section A–D = PHONES jacks: +6 dBu MAIN MIX OUT = PHONES jacks: +4 dBu, OUTPUT L/R jacks: +4 dBu |
| Input Impedance | Section A–D = MIC jacks: 2.3 k ohms, INPUT L/R jacks: 12 ohms (Hi-Z ON: INPUT L = 680 k ohms) Section E = INPUT L/R jacks: 12 k ohms, Stereo miniature phone type: 10 k ohms |
| Output Impedance | Section A–D = PHONES jacks: 47 ohms MAIN MIX OUT = PHONES jacks: 47 ohms, OUTPUT L/R jacks: 1 k ohm |
| Other | |
| Power Supply | AC adaptor |
| Current Draw | 1.2 A |
| Accessories | Owner’s manual Leaflet “USING THE UNIT SAFELY” AC adaptor Power Cord |

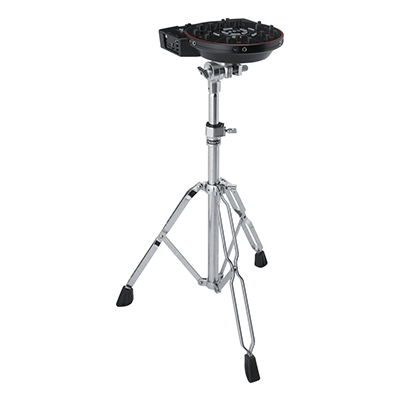

| Options (sold separately) | Stand: PDS-10 |
| Size and Weight | |
| Width | 257 mm | 10-1/8 inches |
| Depth | 248 mm | 9-13/16 inches |
| Height | 68 mm | 2-11/16 inches |
| Weight | 11 kg. | 2 lbs. 7 oz |
