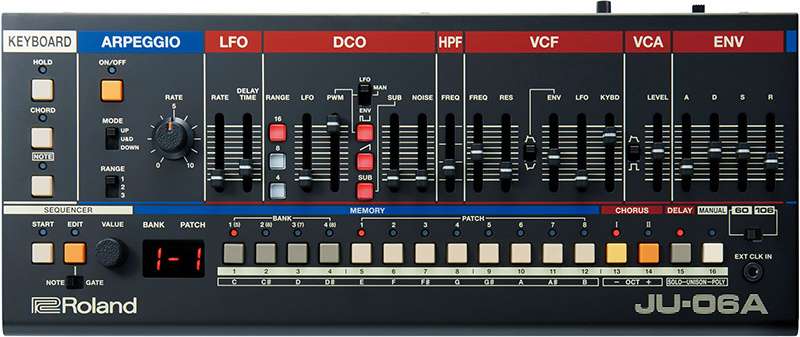

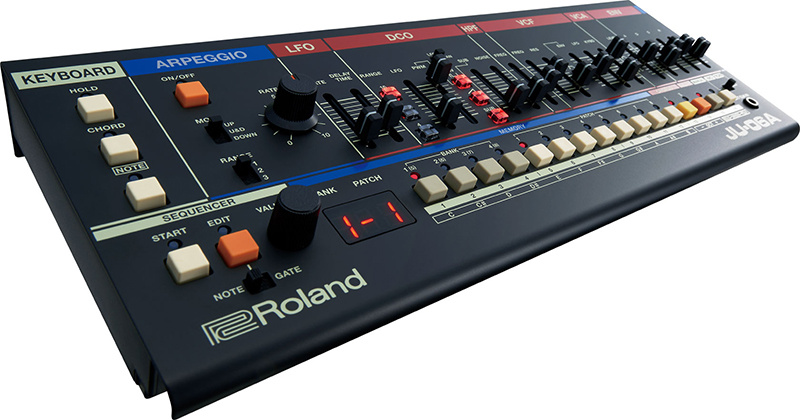

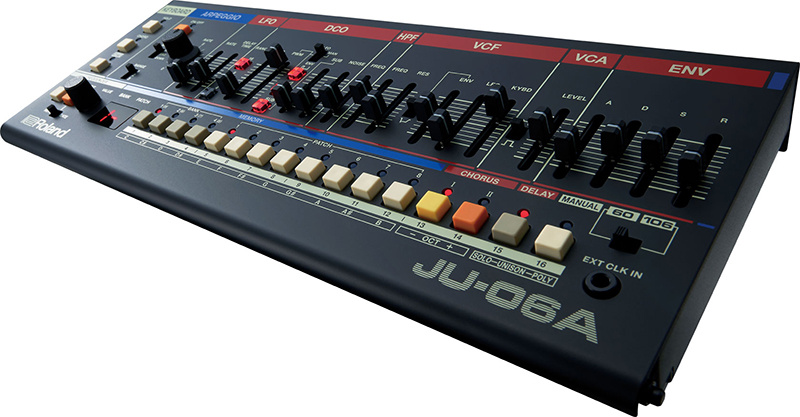

RolandJU-06A SOUND MODULE
The sound of the 1980s is characterized by old Roland JUNO synthesizers. Many keyboardists either want one or regret selling one in the past because they are becoming more and more common on the used market. The JU-06A combines the sound, appearance, and functions of the JUNO-60 and JUNO-106 into a dependable, portable instrument.
Although it is small, the JU-06A is cozy for extended studio sessions and spectacular live performances. JUNO is portable because it operates on batteries and includes a useful built-in speaker. Even if it's simply your regular commute, the durable metal panels and sleek sliders with metal shafts feel excellent and are built to withstand the rigors of life on the road. And it absolutely fits the bill thanks to the familiar and adored genuine vintage style.
SPECIFICATIONS
| Sound Generator Section | Maximum Polyphony: 4 voices |
| Sound Mode: 2 types (60/106) | |
| User Memory | Sound Patch: 64 + 64 (8 patches x 8 banks pre each 60 and 106 mode) |
| Sequencer Pattern: 16 | |
| Chord Memory: 16 | |
| Controllers | Volume knob |
| LFO Section | |
| Rate slider | |
| Delay Time slider | |
| DOCO Section | |
| Range buttons 16', 8,' 4' | |
| LFO slider | |
| PWM slider | |
| PWM mode switch | |
| Square, Saw, Sub buttons | |
| Sub oscillator slider | |
| Noise slider | |
| HPF Section | |
| Cutoff Freq slider | |
| VCF Section | |
| Cutoff Freq slider | |
| Resonance slider | |
| Polarity swtich | |
| ENV slider | |
| LFO slider | |
| Key follow slider | |
| VCA Section | |
| Control signal switch | |
| VCA level slider | |
| ENV Section | |
| Attack Time slider | |
| Decay Time slider | |
| Sustain Level slider | |
| Release Time slider | |
| CHORUS Section | |
| CHORUS 1, CHORUS 2 buttons | |
| DELAY Section | |
| Delay button | |
| KEYBOARD Section | |
| Hold button | |
| Chord button | |
| Note button | |
| ARPEGGIO Section | |
| On/Off button | |
| Mode switch (Up/U & D/Down) | |
| Range switch (1/2/3) | |
| Rate knob | |
| SEQUENCER Section | |
| Start button | |
| Edit button | |
| Value knob | |
| Note/Gate select switch | |
| Sound Mode select switch (60/106) | |
| Bank 1 (5) - 4 (8) buttons | |
| Patch Number 1-8 buttons | |
| Manual button | |
| Power switch | |
| Effects | Chorus: 2 Delay |
| Step Sequencer | 16 steps |
| 1 note (Monophonic) | |
| Display | 7 segments, 3 characters (LED) |

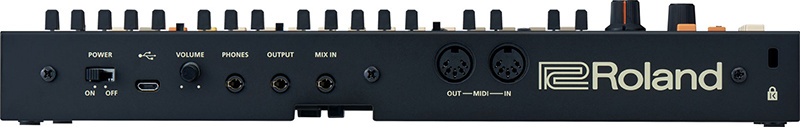

| Connectors | Ext clock in Jack: Mono miniature phone type |
| Phones Jack: Stereo miniature phone type | |
| Output Jack: Stereo miniature phone type | |
| Mix in Jack: Stereo miniature phone type | |
| Midi (In, Out) connectors | |
| USB port: MicroB type (Audio, MIDI) | |

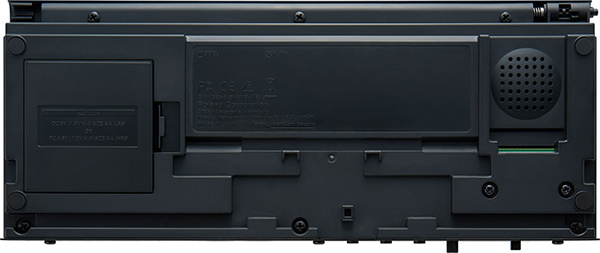

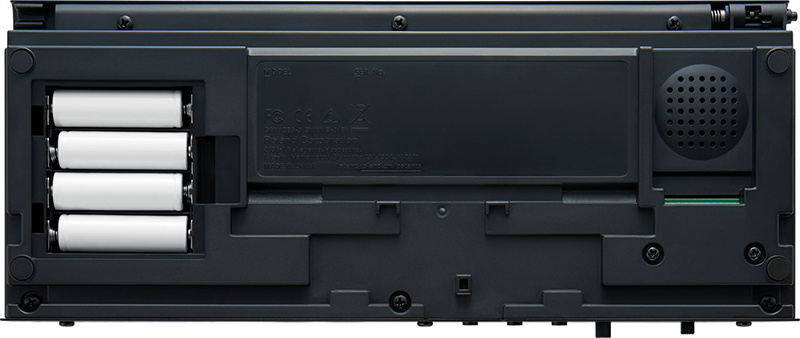

| Power Supply | Ni-MH battery (AA, HR6) x 4 |
| Alkaline battery (AA, LR6) x 4 | |
| USB bus power | |
| Current Draw | 500 mA (USB bus power) |
| Expected battery life under continuous use | Ni-MH battery: Approx. 6 hours |
| This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. | |
| Accessories | Owner's Manual |
| Leaflet "USING THE UNIT SAFELY" | |
| Alkaline battery (AA, LR6) x 4 | |

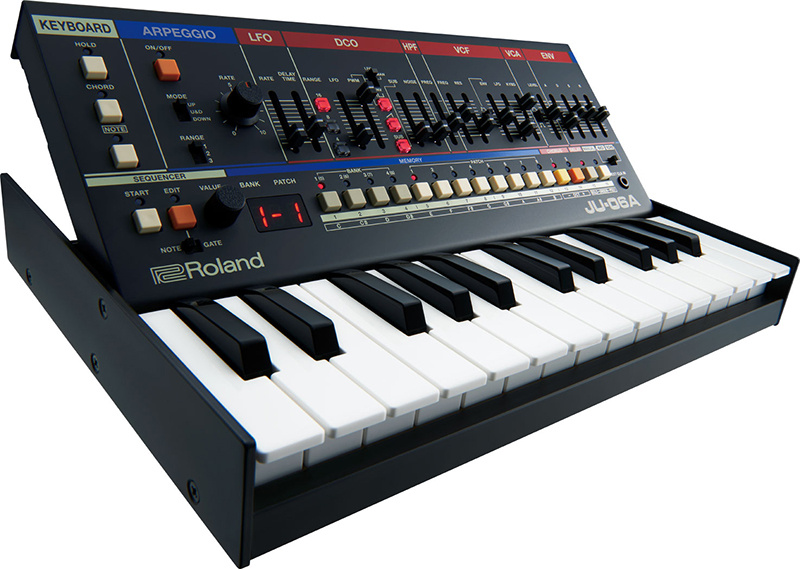

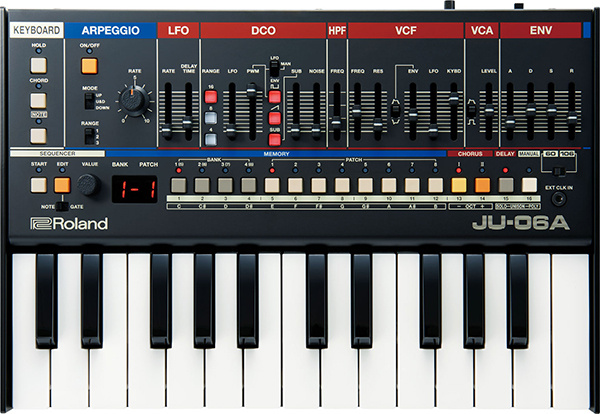

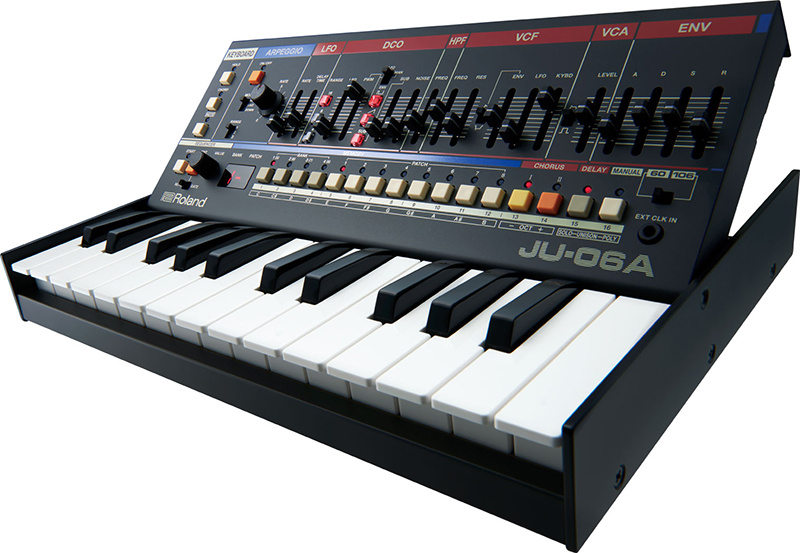

| Options (sold separately) | Keyboard unit: K-25m |
| Boutique Dock: DK-01 | |
| SIZE AND WEIGHT | 300 mm | 11-13/16 inches |
| Width | 128 mm| 5-1/16 inches |
| Depth | 49 mm | 1-15/16 inches |
| Height | 995 g | 2 lbs 4 oz |
