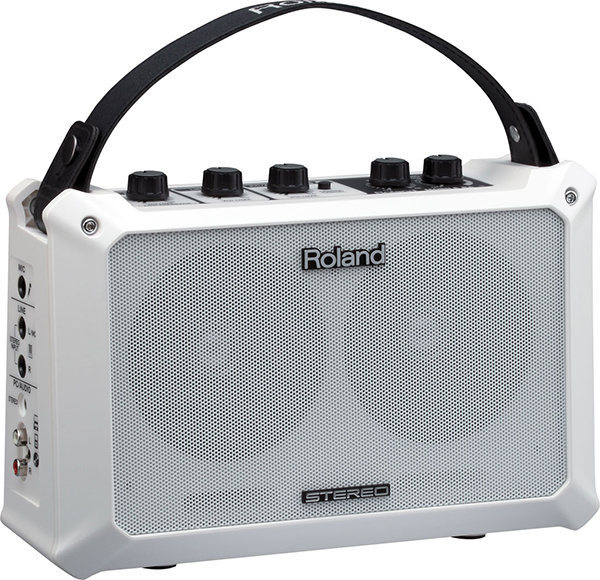

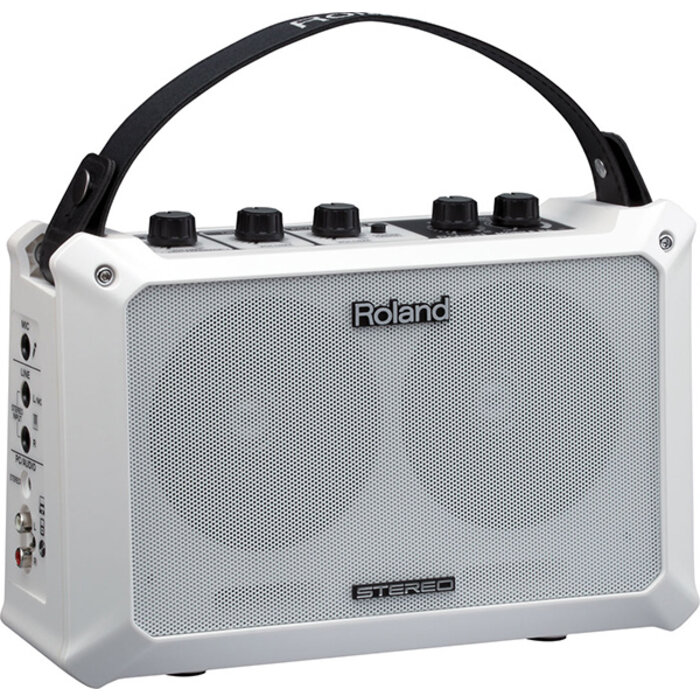

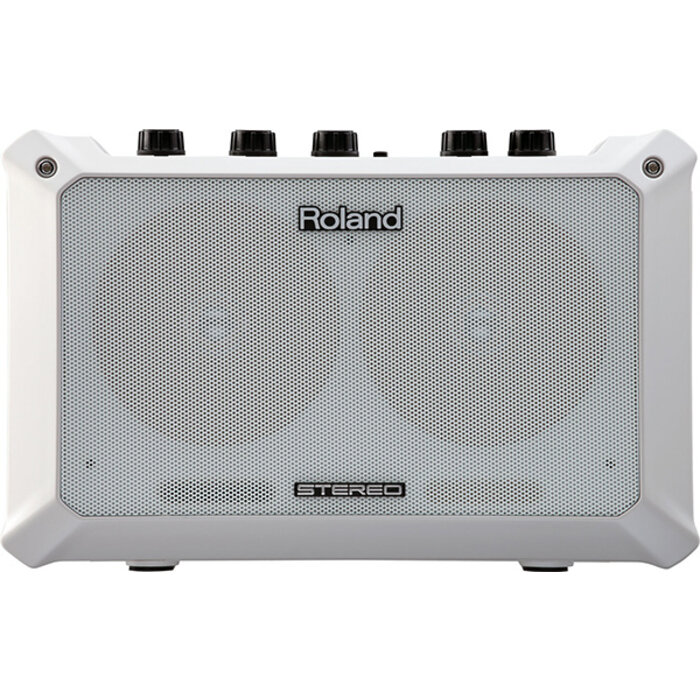

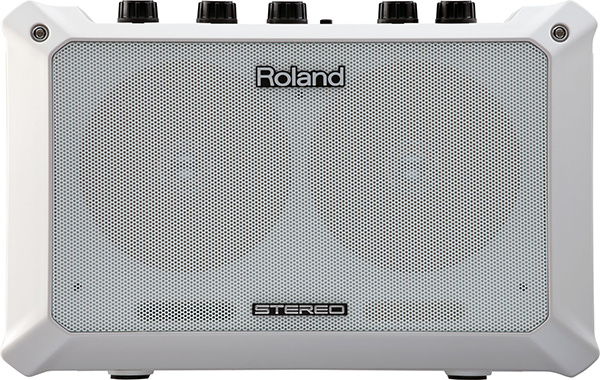

RolandMobile BA

Weighing less than six pounds (2.5 kg) and delivering high-quality stereo sound with flexible connectivity, the MOBILE BA is the perfect solution for schools, offices, small outdoor events, or any environment where fast, simple, and solid amplification is needed. No external power sources, speakers, or mixers are required — simply connect your music player, microphone, and/or instrument to the MOBILE BA, set the volume, and broadcast your sound with clarity and power.

Features

• - Five-watt (2.5 W + 2.5 W) stereo amplifier
• - Weighs less than six lbs (2.5 kg); small and light enough for a child to carry
• - Three-channel built-in mixer with flexible inputs: MIC, LINE, and PC/AUDIO
• - Anti-Feedback function built-in
• - Reverb/Echo effects for vocals and Center Cancel function for “minus one” vocal practice and karaoke fun

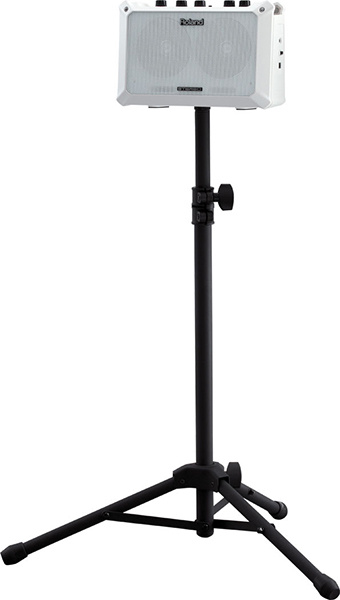

• - Can be mounted on an optional microphone stand for elevated placement

SPECIFICATIONS

RATED POWER OUTPUT

• - 2.5 W + 2.5 W

NOMINAL INPUT LEVEL (1 kHz)

• - MIC: -50 dBu LINE: -10 dBu PC/AUDIO: -10 dBu

SPEAKERS

• - 10 cm (4 inches) x 2

CONTROLS

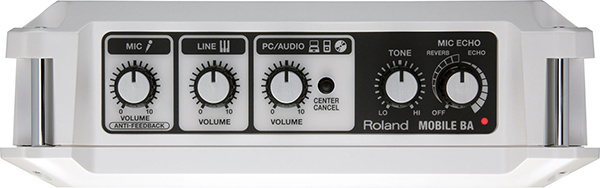

• - POWER switch TONE knob MIC ECHO knob [MIC] VOLUME knob [LINE] VOLUME knob [PC/AUDIO]
• - VOLUME knob CENTER CANCEL switch

INDICATORS

• - POWER

CONNECTORS

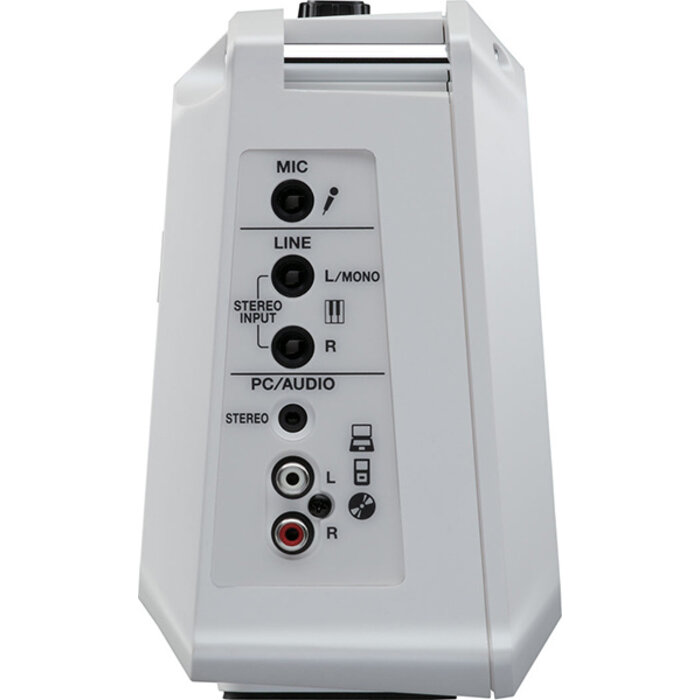

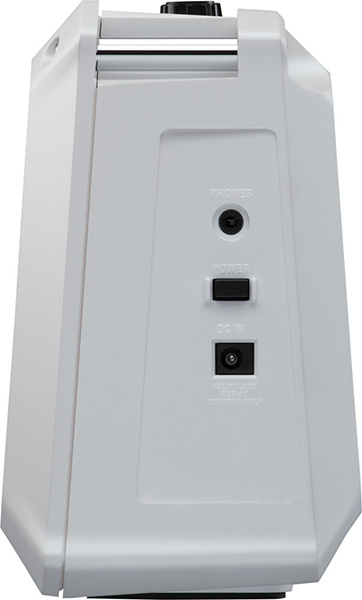

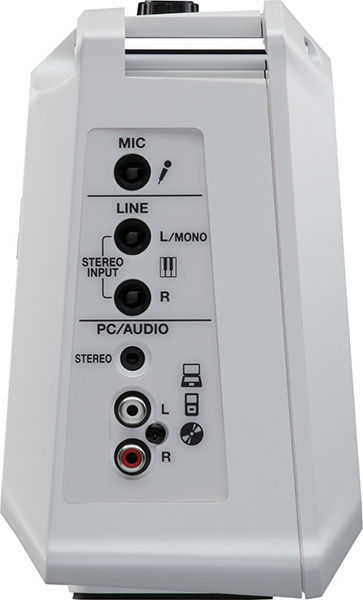

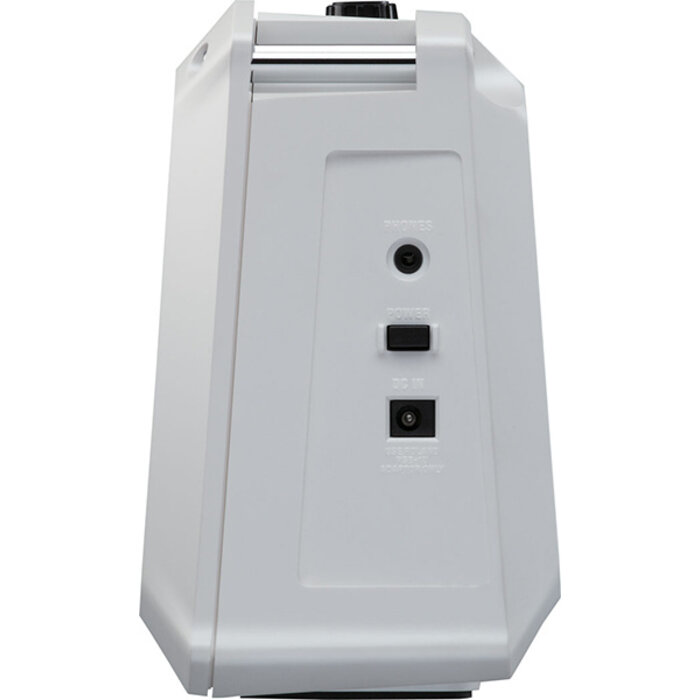

• - MIC jack (1/4-inch phone type) LINE L/MONO jack (1/4-inch phone type) LINE R jack (1/4-inch phone type) PC/AUDIO jacks (Stereo miniature phone type, RCA phono type) PHONES jack (Stereo miniature phone type) DC IN jack

POWER SUPPLY

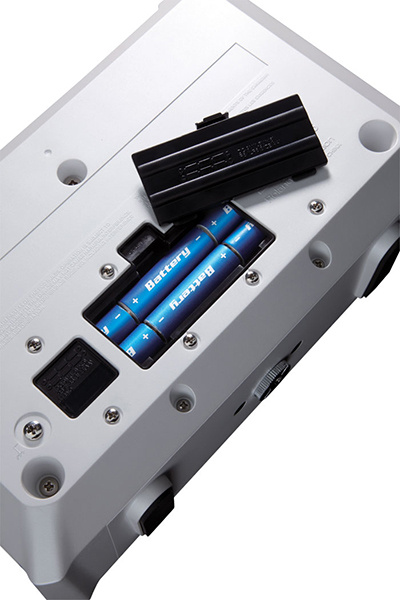

• - Alkaline battery (AA, LR6) x 6 or AC Adaptor (sold separately)

CURRENT DRAW

• - 175 mA (DC 9 V)

ACCESSORIES

• - Strap Alkaline battery (AA, LR6) x 6 Owner’s Manual

OPTIONS (SOLD SEPARATELY)

• - AC adaptor (PSB series)

EXPECTED BATTERY LIFE UNDER CONTINUOUS USE

• - Alkaline battery (AA, LR6): approximately 15 hours * These figures will vary depending on the specifications of the batteries and the actual conditions of use.

SIZE AND WEIGHT

• - Width: 280 mm l 11 1/16 inches
• - Depth: 108 mm l 4-5/16 inches
•  - Height: 177 mm l 7 inches
• - Weight: 2.5 kg l 5 lbs 9 oz
