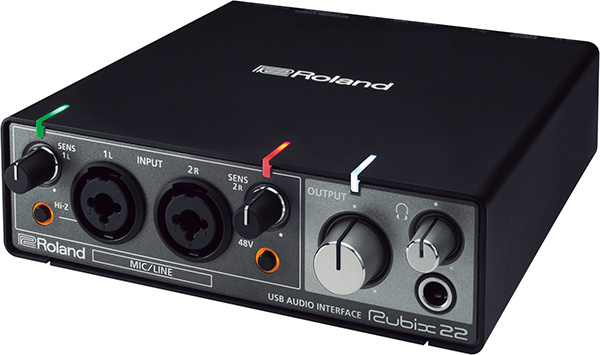

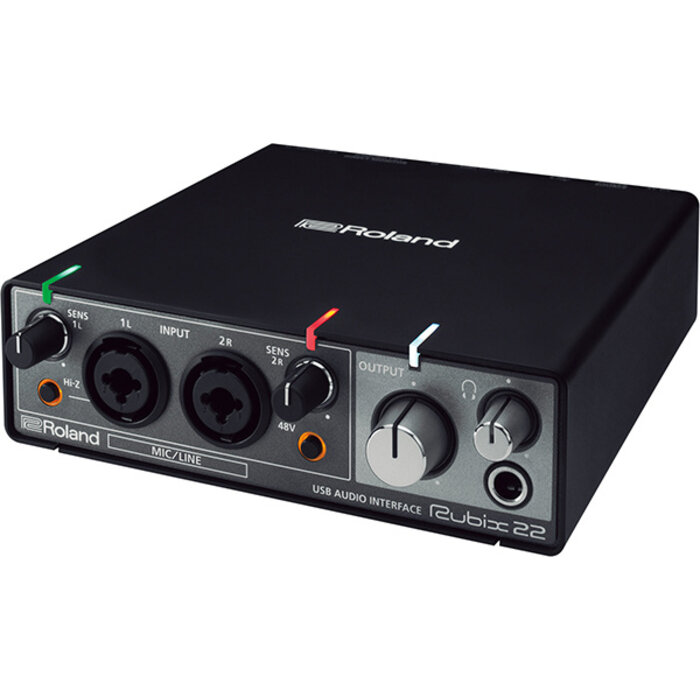

Name: Roland RUBIXx22 USB Audio Interface 2In/2Out
Brand: Roland
SKU: RUBIX22
Price: 195.00 EUR
Availability: InStock

Description

Rubix22 strikes the ideal combination between essential features for modern artists and producers and high-fidelity sound, sturdy construction, a small footprint, and cheap pricing. Rubix22 has been meticulously designed to have extremely low noise from input to output and supports high-resolution audio up to 24-bit/192kHz. It offers the best in portable music production and performance because to its nearly universal USB connectivity, which enables seamless operation with Mac and PC PCs as well as iPads.

Features

2-in/2-out USB audio interface
2 low-noise mic preamps with XLR combo jacks
Hi-Z input for guitar and other high impedance sources
MIDI In/Out ports
Extensively shielded, low-noise design
Sturdy and compact metal construction
Big, easy-to-read indicators show vital information
Low latency, class-compliant drivers
Ground lifts for quiet operation in a variety of venues
Includes six months of Roland Cloud Pro membership

SPECIFICATIONS

Number of Audio Record/Playback Channels	Record: 2 channels Playback: 2 channels
Signal Processing	PC interface: 24 bits AD/DA conversion: 24 bits
Sampling Frequency	AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Interface	Hi-Speed USB, MIDI IN, OUT

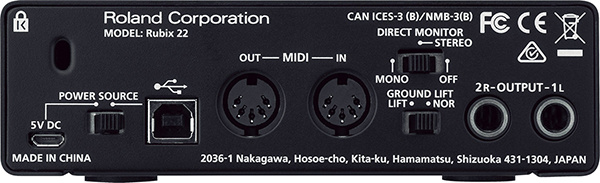

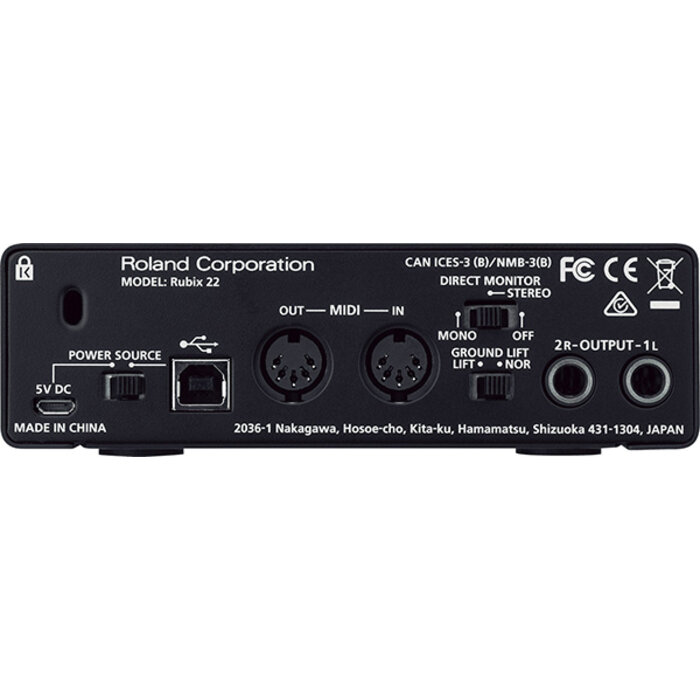

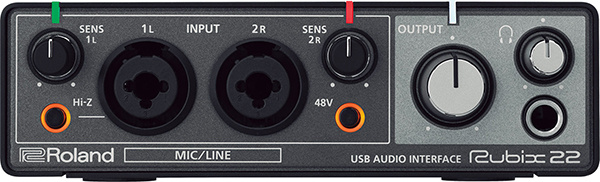

Connectors	INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max) INPUT (1L, 2R) jacks: 1/4-inch TRS phone type (balanced) PHONES jack: Stereo 1/4-inch phone type OUTPUT (1L, 2R) jacks: 1/4-inch TRS phone type (impedance balanced) MIDI (IN, OUT) connectors USB port: USB Type B DC 5V port: USB Type micro B
Controllers	SENS 1L, 2R knobs, Hi-Z switch, 48V switch, OUTPUT knob, PHONES knob, POWER SOURCE switch, DIRECT MONITOR switch, GROUND LIFT switch
Indicator	Level indicators (1L, 2R), POWER indicator, Hi-Z indicator, 48V indicator
Nominal Input Level	INPUT (1L, 2R) connectors (XLR type): -60-- -12 dBu INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBu
Maximum Input Level	INPUT (1L, 2R) connectors (XLR type): +2 dBu INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu
Nominal Output Level	OUTPUT (1L, 2R) jacks: -6 dBu (impedance balanced)
Maximum Output Level	OUTPUT (1L, 2R) jacks: +8 dBu (impedance balanced)
PHONES Maximum Output Power	20 mW + 20 mW (L + R, 47 ohms load)
Headroom	14 dB
Input Impedance	INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced) INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced) INPUT (1L) jack (1/4-inch phone type): 500 k ohms or greater (Hi-Z on)
Output Impedance	OUTPUT (1L, 2R) jacks: 2 k ohms (balanced) PHONES jack: 47 ohms
Residual Noise Level	INPUT (1L, 2R) → OUTPUT (1L, 2R): -94 dBu typ. (IHF-A, typ.)
Dynamic Range	AD block INPUT (1L, 2R) jacks: 104 dB typ. DA block OUTPUT (1L, 2R) jacks: 109 dB typ.
Power Supply	Supplied from the computer via USB, DC 5V
Current Draw	500 mA
Operating System	Microsoft Windows 7, 8, 8.1, 10 Apple Mac OS X 10.10 or later Apple iOS 9 or later
Dimensions	145 (W) x 165 (D) x 46 (H) mm (5-3/4 x 6-1/2 x 1-13/16 inches)
Weight	1.0 kg (2 lbs 4 oz)
Accessories	Setup Guide, Leaflet "USING THE UNIT SAFELY", USB cable
