RolandTR08 Boutique Rythm Composer Sound Module
Show all:
Drums & Percussion,Drum Machines
Description
Read moreRead less

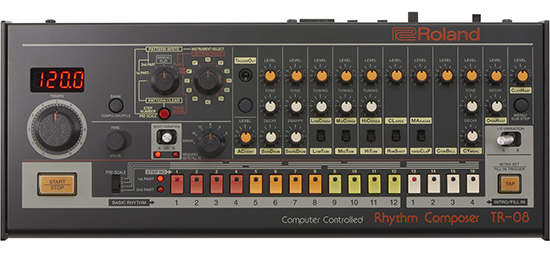

The TR-08 captures the iconic look, sound, and feel of the original 808 in a compact Roland Boutique format. It combines classic design with modern reliability for timeless beats.
FEATURES
- Ultra-compact recreation of the legendary TR-808 drum machine
- Retains the sound, character, and user interface of the original TR-808
- Hands-on control including tone, level, tuning, and decay
- Added Compressor, Gain, Tune, and Pan for selected instruments
- Programmable via classic Step and Tap write modes
- Sequencer has 16 steps with 16 sub-steps for detailed patterns and rolls
- Continue playing beats even while switching between write modes
- LED display for easier navigation and fine control of tempo and shuffle
- Ten separate outputs via USB audio
- Dedicated, track-selectable trigger output for controlling external instruments
- High-quality construction with metal front panel
- Highly portable for mobile music making
- Includes DK-01 Boutique Dock for multiple-angle viewing
- Battery-operated (4 x AA) or USB powered
- Built-in powered mini-speaker for instant enjoyment
- Compatible with optional Roland Boutique accessories
SPECIFICATIONS
| User Memory | The TR-08 captures the iconic look, sound, and feel of the original 808 in a compact Roland Boutique format. It combines classic design with modern reliability for timeless beats. |
| Steps | 16 steps with 16 sub steps |
| Instruments | BD: BASS DRUM SD: SNARE DRUM LC: LOW CONGA, LT: LOW TOM MC: MID CONGA, MT: MID TOM HC: HI CONGA, HT: HI TOM CL: CLAVES, RS: RIM SHOT MA: MARACAS, CP: HAND CLAP CB: COW BELL CY: CYMBAL OH: OPEN HI HAT CH: CLOSED HI HAT |
| Controllers | VOLUME knob START/STOP button TEMPO knob BANK/TEMPO/SHUFFLE button FINE/VALUE knob mode selector knob (PATTERN CLEAR, PATTERN WRITE 1st PART/2nd PART, MANUAL PLAY, RHYTHM TRACK PLAY, COMPOSE) INSTRUMENT/TRACK selector knob CLEAR button BASIC VARIATION selector switch and indicator AUTO FILL IN selector knob TRIGGER OUT track select button ACCENT LEVEL knob Instrument LEVEL knob (all instruments) TONE control knob (BD, SD, CY) DECAY control knob (BD, CY, OH) SNAPPY control knob (SD) TUNING control knob (LC/LT, MC/MT, HC/HT) Voice selector switch (LC/LT, MC/MT, HC/HT, CL/RS, MA/CP) PRE-SCALE selector switch STEP button (1-16) and indicator I/F VARIATION switch TAP button MENU/SUB STEP button 1st PART/2nd PART indicator Power switch |
| Effects | Compressor |
| Indicators | 7 segments, 4 characters (LED) |
| Connectors | TRIGGER OUT jack: mono miniature phone type PHONES jack: stereo miniature phone type OUTPUT jack: stereo miniature phone type MIX IN jack: stereo miniature phone type MIDI (IN, OUT) connectors USB port: Micro-B type (Audio, MIDI) |
| Power Supply | Rechargeable Ni-MH battery (AA, HR6) x 4 Alkaline battery (AA, LR6) x 4 USB bus power |
| Current Draw | 500 mA (USB bus power) |
| Expected battery life under continuous use | Rechargeable Ni-MH battery: Approx. 6 hours * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. |
| Accessories | Boutique Dock: DK-01 (Black) Owner's Manual DK-01 Owner's Manual Leaflet "USING THE UNIT SAFELY" Alkaline battery (AA, LR6) x 4 |
| Size and Weight | |
| Width | 308 mm | 12-1/8 inches |
| Depth | 130 mm | 5-1/8 inches |
| Height | 51 mm | 2-1/16 inches |
| Weight (including batteries and Boutique Dock) | 1.3 kg | 2 lbs 14 oz |
