SamsonStage XPD2 Headseat Wireless System

FEATURES

• - 2.4GHz USB digital wireless system



• - Ideal for broadcasting, live streaming, presentations and more

• - Plug-and-play operation with Mac and Windows

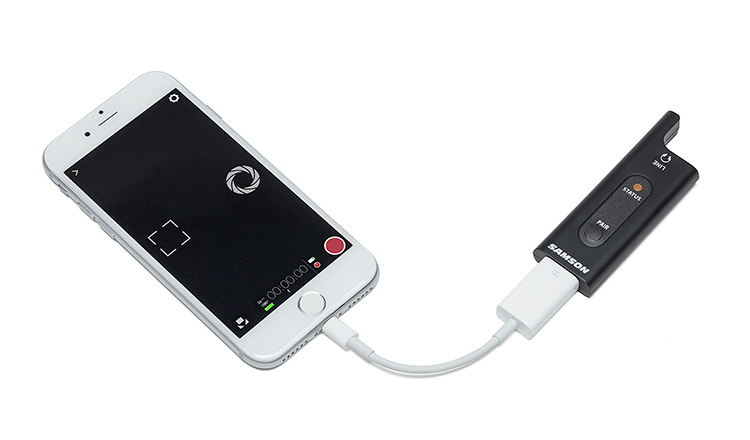

• - Works with iPad via Apple's Lightning to USB Camera Adapter

• - Works with Android devices via a host OTG adapter

• - RXD2 USB stick receiver

• - Receiver features a 1/8" (3.5mm) headphone/monitor output

• - PXD1 beltpack transmitter with Samson DE5 Micro Headset Microphone

• - Transmitter offers 20 hours of battery life using two AA batteries (not included)

• - 100' operating range (line of sight, environment dependent)

• - 1-touch pairing, adjustable Volume controls on the transmitter

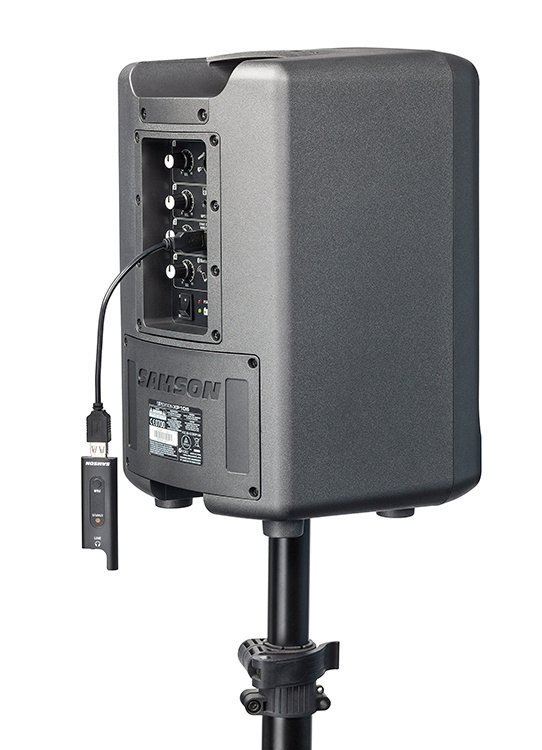

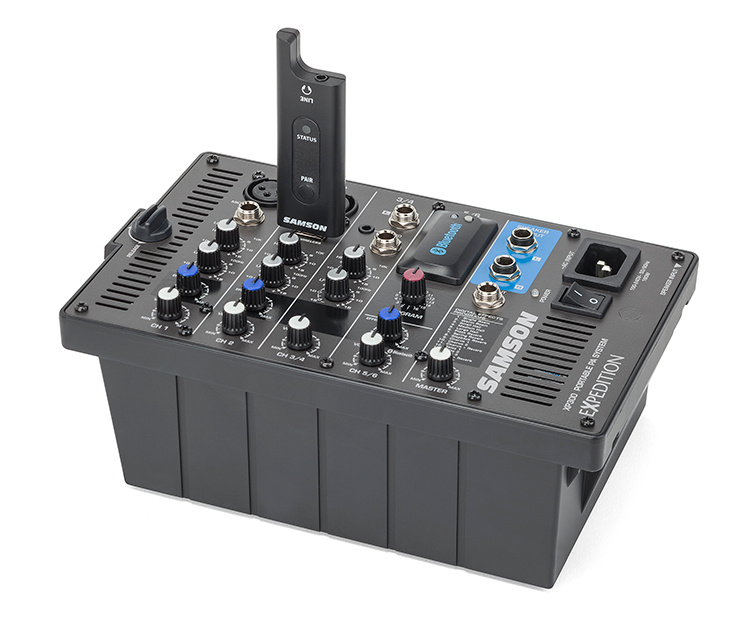

• - Compatible with Samson Expedition Series Portable PAs that feature USB Wireless ports

• - Includes USB extension cable


Specifications
XPD2 USB Digital Wireless System

• - Simultaneous Systems: 2
• - Working Range: 100' (3m) line of sight
• - Working Frequency:  2.404~2.476GHz
• - Modulation type: GFSK
• - Audio Frequency Response: 20Hz–16KHz
• - T.H.D.: <0.1% (@ 1KHz, -10dBu)
• - Signal to Noise: >85dB

RXD2 USB Receiver

• - Max. Analog Audio Output Level: 0dBu
• - Audio Output Impedance: 100KΩ
• - USB audio sample rate: 32KHz
• - Operating Voltage: 5V DC
• - Dimensions: 3.5" x 0.9" x .31" (89 mm x 23mm x 8mm)
• - Weight: 0.35oz (10g)

PXD1 Beltpack Transmitter

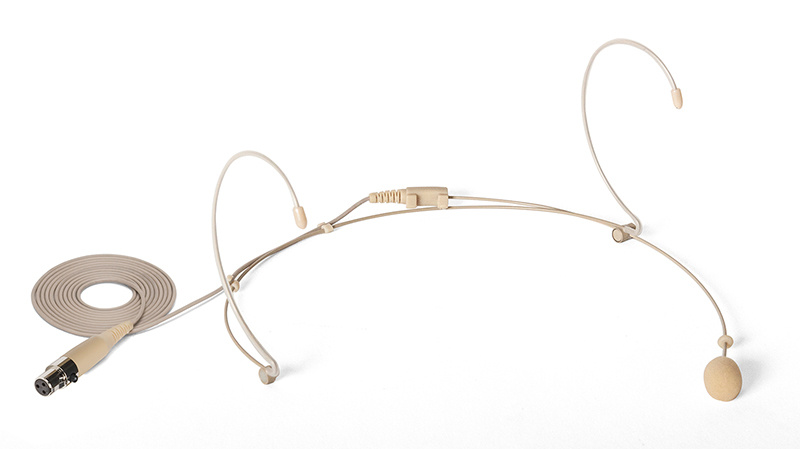

• - Microphone: Samson DE5 micro headset mic
• - RF Power: <10 mW EIRP
• - Power Requirements: Two AA (LR6) alkaline batteries
• - Battery Life: 20 hours
• - Dimensions: 3.75" x 2.44" x 0.75" (96mm x 62mm x 18.5mm)
• - Weight: 0.2lb (93g)
