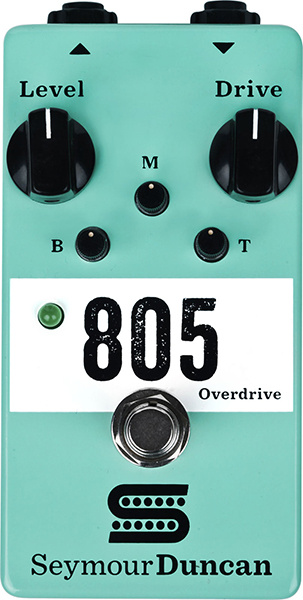

Seymour Duncan805 Overdrive

A classic overdrive that gives a subtle boost, fat crunch, or a searing tone to your solos. 3-band active EQ shapes your tone just the way you want.

SPECIFICATIONS

• - Distortion Circuitry: Glass diode, back-to-back stack.
• - Bypass: True bypass
• - Gain Control Range: 8dB to 36dB.
• - Bass – 90 Hz +/- 11dB
• - Mid – 750 Hz +/- 11dB
• - Treble – 2.1 kHz +/- 12dB
• - Minimum gain, 20 to 20kHz – 112dBV
• - Minimum gain, 400 to 20kHz – 114dBV
• - Maximum gain, 20 to 20kHz – 97.5dBV
• - Maximum gain, 400 to 20kHz – 98 dBV
• - THD @10mVrms input @ 1 kHz with 12 dB of gain: 0.15%
• - Max Output before Saturation: 0.6Vrms
• - Input Impedance: 470k Ohms
• - Output Impedance: 1k Ohms
• - Power: 9V battery or external 9 to 18V Regulated DC Adapter (center negative)
• - Current consumption: 4.5mA
• - Dimensions: 2.61" X 4.90" X 1.45"
• - Weight: 0.6 lb without battery
