StaggSUW50LLEG UHF Wireless 2 Lavalier Microphones 863.8-864
Show all:
Wireless Microphones,Pro Audio
Description
Read moreRead less

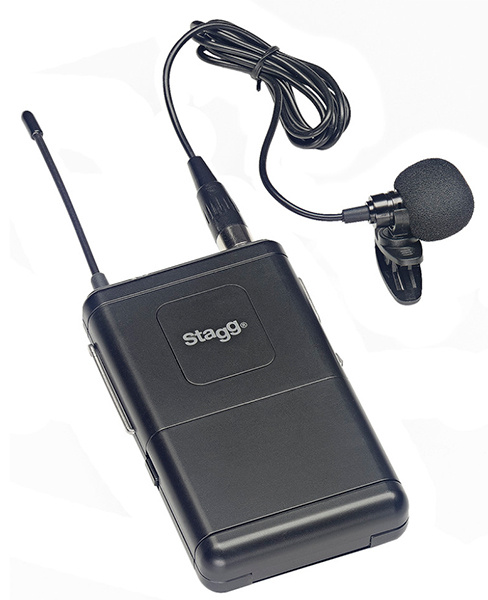

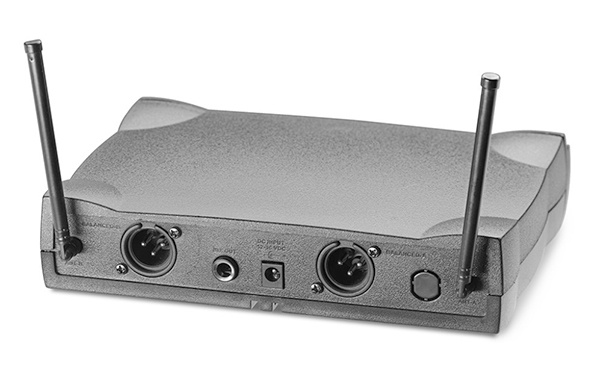

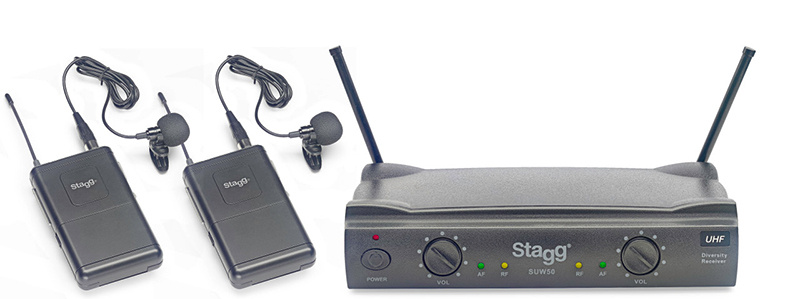

The Stagg SUW50LLEG UHF Wireless 2 Lavalier Microphone System (863.8-864 MHz) provides exceptional wireless audio transmission for two devices used in presentations, interviews, and multimedia. This system delivers reliable professional audio through radio waves to replace wired connections.
SPECIFICATIONS
| Fixed frequencies | 863.8 - 864.5 |
| Audio output unbalanced | Maximum 5 dBu |
| Power supply | 12-18 V DC |
| Power consumption | 150 mA (at 13.5 V DC) |
| Receiver sensitivity | - 90 dBm Handheld microphones and belt-pack transmitters |
| Fixed frequencies | 863.8 - 864.5 |
| RF emitting power | 10 mW |
| Battery type | 2 x AA battery |
| Frequency response | 50 - 20 000 Hz |
| Input sensitivity | 2.1 mV / Pa |
| Power consumption | 100 mA at 3 V System |
| Total harmonic distortion | 0.1 % |
| Signal-to-noise ratio | 96 dB |
| Fixed frequencies | 863.8 - 864.5 |
| Operational bandwidth | 300 kHz |
| Dynamic range | 90 dB |
| Audio sampling | 24 bits / 48 kHz |
| Oscillation mode | PLL synthesized |
| Audio delay | 3 ms |
| Audio encoder | PT live |
| Frequency response | 20 - 20 0000 Hz |
| Working distance | 60 m (200') |
