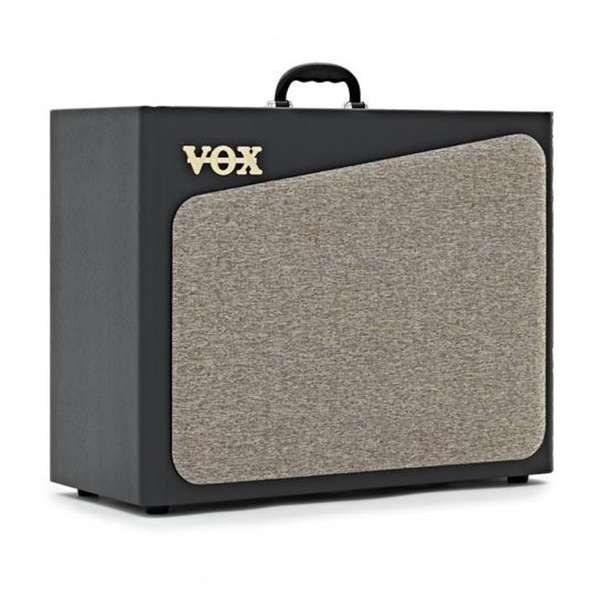

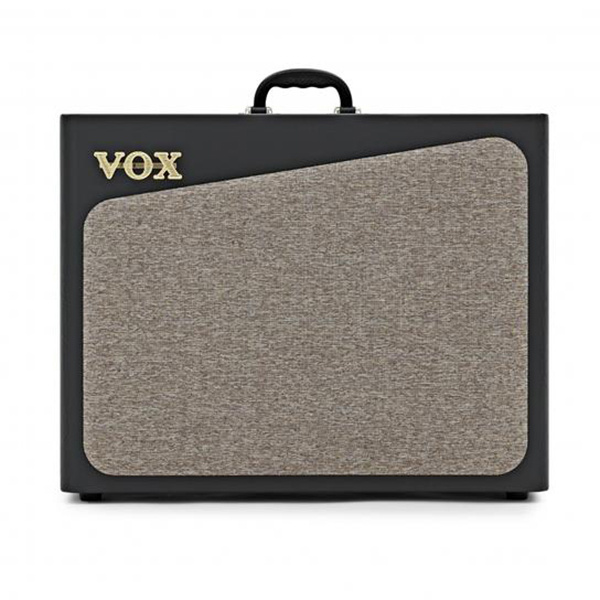

VoxAV60 Analogue Valve Amp 60 Watts

The Vox AV60 was a single input, foot switchable dual channel amplifier that included two 12AX7 tubes. One half of the first 12AX7 tube powered the preamp of the first channel, the second half powered the preamp of the second. The other 12AX7 served as the driver for a 60 watt solid state power amplifier.

SPECIFICATIONS

• - Pre Amp Circuit: Dual multi-circuit analog preamp. each with presets for: Clean, Clean2, Crunch1. Crunch2, OD1, OD2, Hi Gain1 and Hi Gain2 tones
• - Tube: Two 12A x 7
• - Effects: Modulation, Delay, Reverb

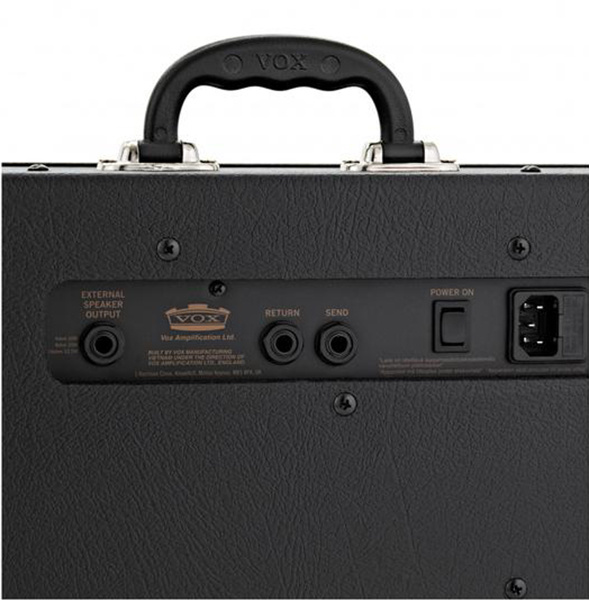

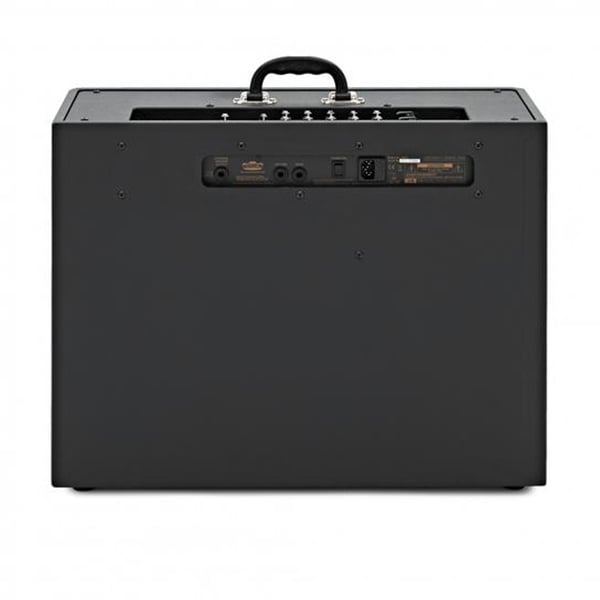

• - Input/Output Jacks: Input, foot switch, aux in, phones, FX loop, external speaker
• - Power Amp Output: ~60W RMS @3 ohms
• - Speaker: VOX 12" 3 ohms
• - Dimension (W x D x H): 23.23" x 10.71" x 19.33"
• - Weight: 36.60 lbs
• - Optional Accessories: VFS2 or VFS5 foot switch
